Specifications

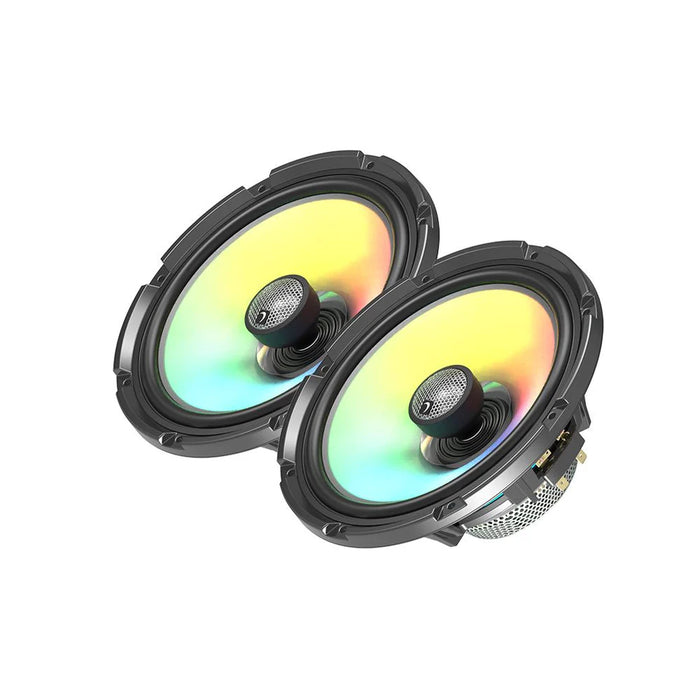

Type: 2-Way Coaxial Full-Range Speaker
Series: Diamond Audio HXM Motorsport Series
Size: 6.5-inch (165mm)
Configuration: Coaxial (Midbass + Horn Tweeter)
Power Handling (RMS): 150W
Power Handling (Peak): 300W
Impedance: 2Ω
Sensitivity (1W/1m): 91dB
Frequency Response: 55Hz – 22kHz
Woofer Cone: Carbon-Fiber Reinforced Polypropylene
Surround: UV-Treated Rubber
Voice Coil: 1.5-inch (38mm) High-Temp Copper
Tweeter Type: 1-inch (25mm) Titanium Dome Compression Horn
Tweeter Magnet: Neodymium
Crossover: Integrated 12dB/Octave High-Pass Network
Basket: Heavy-Duty Marine-Grade Composite Frame
Grilles: Included – Corrosion-Resistant Aluminum Mesh
Mounting Depth: 2.9" (74mm)
Mounting Cutout: 5.8" (147mm)
Overall Diameter: 6.9" (175mm)
Waterproof Rating: IP65 (Water, Salt, and UV Resistant)
Weight: 5.2 lbs (Pair)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• High-output 6.5" coaxial system designed for motorcycles, UTVs, and marine use.
• Delivers exceptional clarity, volume, and projection even in open-air environments.
• Carbon-fiber cone provides tight midbass response and superior durability.
• Titanium compression horn tweeter ensures crisp, extended highs.
• IP65-rated for total resistance to moisture, salt, and UV exposure.
Key Features
• Elite 2-Way Coaxial Design – Powerful, full-range sound in compact form.
• Titanium Horn Tweeter – Controlled, high-SPL output ideal for outdoor use.
• Carbon-Fiber Composite Cone – Lightweight, rigid, and weather-resistant.
• Marine-Grade IP65 Construction – Built for extreme powersport conditions.
• Integrated Crossover – Optimized signal transition and tuning.
• Heavy-Duty Build – Vibration-resistant composite basket and sealed motor.
• Diamond Audio Reliability – Tuned for maximum clarity and endurance.
Performance Integration Notes
• Ideal Pairing: Diamond HXM800.4D or DXM800.4D Amplifier (125–200W RMS @ 2Ω).
• System Compatibility: Marine, Motorcycle, UTV, and Outdoor Motorsport Applications.
• Recommended Use: Front fairing, tower pod, or side panel installations.
• Installation Location: Flush-mount in enclosures or direct-panel applications.
• Installation Time: Approx. 1 hour.
• Pro Tip: For best imaging and projection, aim horn tweeters toward listener axis and use tinned copper wiring for maximum conductivity and corrosion resistance.
