Specifications

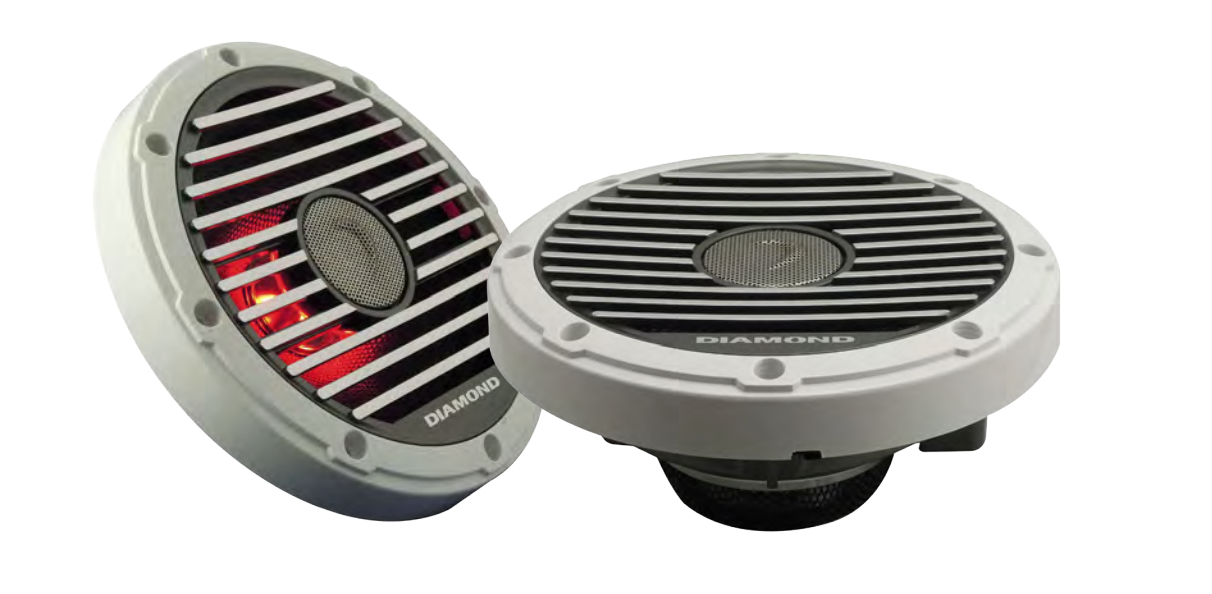

Type: 2-Way Coaxial Full-Range Speaker
Series: Diamond Audio HXM Marine / Motorsport Series
Speaker Size: 6.5" (165.5 mm)
Configuration: Full-Range Coaxial
Power Handling (RMS): 80 W
Power Handling (Peak): 160 W
Nominal Impedance: 4 Ω
Sensitivity (1W/1m): 90 dB
Frequency Response: 50 Hz – 22 kHz
Voice Coil Diameter: 1" (25 mm)
Voice Coil Type: Aluminum Former with Copper Windings
Tweeter Type: 1" (25 mm) Titanium Dome (Coaxially Mounted)
Cone Material: Injection-Molded Polypropylene (Waterproof)
Surround Material: UV-Resistant Rubber Surround
Basket: Marine-Grade Composite Frame
Crossover Type: Integrated High-Pass / Low-Pass Network
Grille Type: Included – Marine-Grade Steel Mesh (White or Black Finish)
Mounting Depth: 2.7" (69 mm)
Mounting Cutout Diameter: 5.6" (142 mm)
Overall Diameter: 6.9" (175 mm)
Weather Resistance: IP65 Marine-Certified (Water, Salt, UV, and Vibration Resistant)
Weight: 4.0 lbs (Pair)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Designed for clean, accurate sound reproduction in marine and outdoor environments.
• Titanium dome tweeter provides bright, detailed high frequencies that cut through wind and engine noise.
• Polypropylene cone ensures strong midbass and reliable long-term performance.
• Compact mounting depth allows for use in boats, UTVs, and motorcycles.
• Delivers full-range clarity with balanced tonal response and wide dispersion.
Key Features
• 2-Way Coaxial Design – Delivers full-range sound from a compact driver.
• Marine-Grade Construction – Resistant to UV rays, saltwater, and vibration.
• Titanium Tweeter – Produces crisp, high-frequency detail and projection.
• Composite Frame – Lightweight, non-corrosive, and impact-resistant.
• Integrated Crossover – Ensures balanced output and reduced distortion.
• Versatile Mounting – Works in boats, UTVs, motorcycles, or custom panels.
• IP65 Rated – Sealed against moisture and debris intrusion.
• Diamond Audio Quality – Tuned for dynamic sound and long-lasting reliability.
Performance Integration Notes
• Ideal Pairing: Amplifier rated 75–100 W RMS @ 4 Ω (Diamond DES400.2D or MICRO84U recommended).
• System Compatibility: Marine, UTV, and motorcycle sound systems.
• Recommended Use: Full-range front or rear speaker placement.
• Installation Time: Approx. 45 minutes per pair.
• Pro Tip: Use marine-grade tinned wire and silicone-seal the mounting flange for maximum longevity in wet environments.
