Specifications

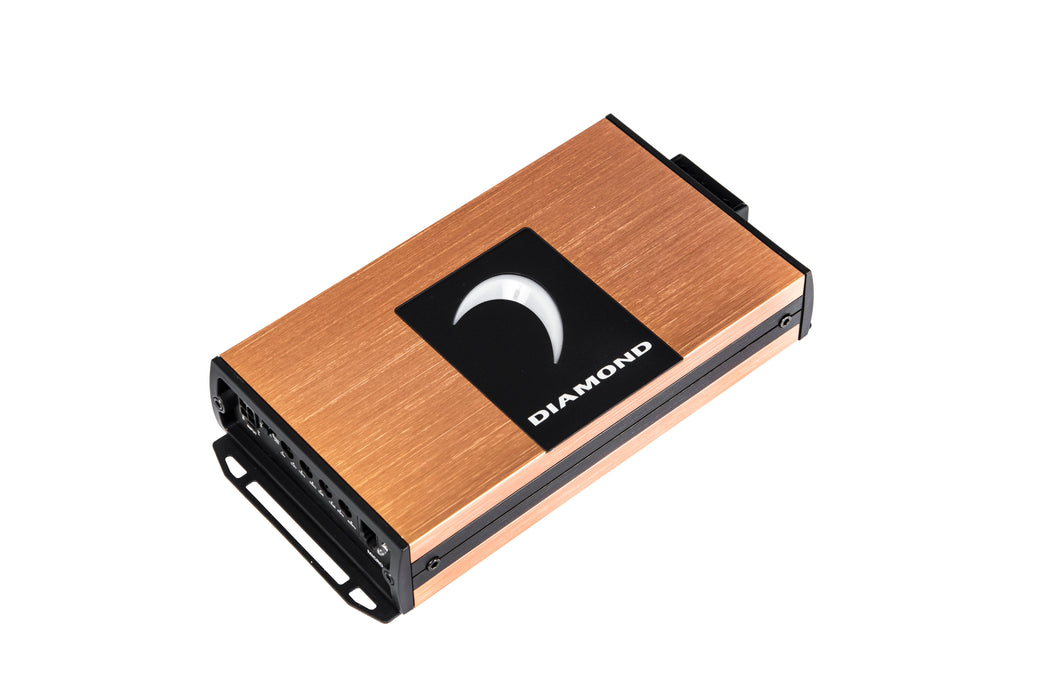

Type: Monoblock Full-Range Class D Amplifier
Series: Diamond Audio MICRO Compact Series (V2)
Channels: 1 (Mono)
Power Output (RMS @ 14.4V):
• 300 W × 1 @ 2 Ω
• 500 W × 1 @ 1 Ω
Total Power Output: 500 W RMS / 1,000 W Peak
Frequency Response: 10 Hz – 35 kHz (±1 dB)
Signal-to-Noise Ratio: >90 dB
THD (Total Harmonic Distortion): <0.05%
Input Sensitivity: 200 mV – 6 V
Input Impedance: 22 kΩ
Crossover Type: Variable Low-Pass / High-Pass Filters (Selectable)
Crossover Range: 50 Hz – 500 Hz (12 dB/Octave)
Bass Boost: 0 – 12 dB @ 45 Hz
Subsonic Filter: 10 Hz – 50 Hz (12 dB/Octave)
Phase Control: 0° / 180° Switchable
Preamp Outputs: Full-Range RCA Pass-Through
Remote Bass Level Control: Included
Power Terminals: 8 AWG Input / 10 AWG Speaker Output
Fuse Rating: 1 × 30 A (Mini Blade Fuse)
Cooling System: Conduction-Cooled Aluminum Heatsink (Low Thermal Resistance Design)
Operating Voltage: 9 V – 16 V DC
Protection Features: Thermal, Overload, Short Circuit, Reverse Polarity
Construction: Conformal Coated PCB (Moisture and Vibration Resistant)
Dimensions (L×W×H): 7.1" × 3.1" × 1.6" (180 × 78 × 41 mm)
Weight: 2.2 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Compact, high-efficiency full-range Class D amplifier engineered for motorcycles, UTVs, and compact vehicle installs.
• Delivers clean, controlled power for subwoofers or midbass drivers.
• Stable at 1Ω for flexible system configurations and multi-driver setups.
• Maintains full frequency range capability for full-range or dedicated bass use.
• High-efficiency thermal design ensures reliability in tight or enclosed installations.
Key Features
• Compact Micro-Chassis – Designed for installations with limited space.
• True 1Ω Stability – Handles demanding subwoofer or midbass loads reliably.
• Full-Range Class D Design – Capable of powering subs, mids, or coaxials.
• Variable Crossovers – Complete tuning control for system precision.
• Remote Bass Level Control – Real-time subwoofer adjustment from driver’s seat.
• High-Efficiency Power Supply – Delivers consistent output with minimal heat.
• Conformal Coated Circuit Board – Resistant to vibration, humidity, and corrosion.
• Diamond Audio Micro Engineering – Small footprint, big performance, built for endurance.
Performance Integration Notes
• Ideal Pairing: Diamond DESMB10D, DESMB12D, or MSMB102NEO drivers.
• System Compatibility: Harley-Davidson®, UTV, marine, or compact automotive applications.
• Recommended Use: Subwoofer or full-range channel amplifier in small or multi-amp systems.
• Installation Time: Approx. 45 minutes.
• Pro Tip: Mount amplifier in an area with passive airflow; keep gain settings below clipping and use 8 AWG OFC power cable for best voltage stability at 1Ω.
