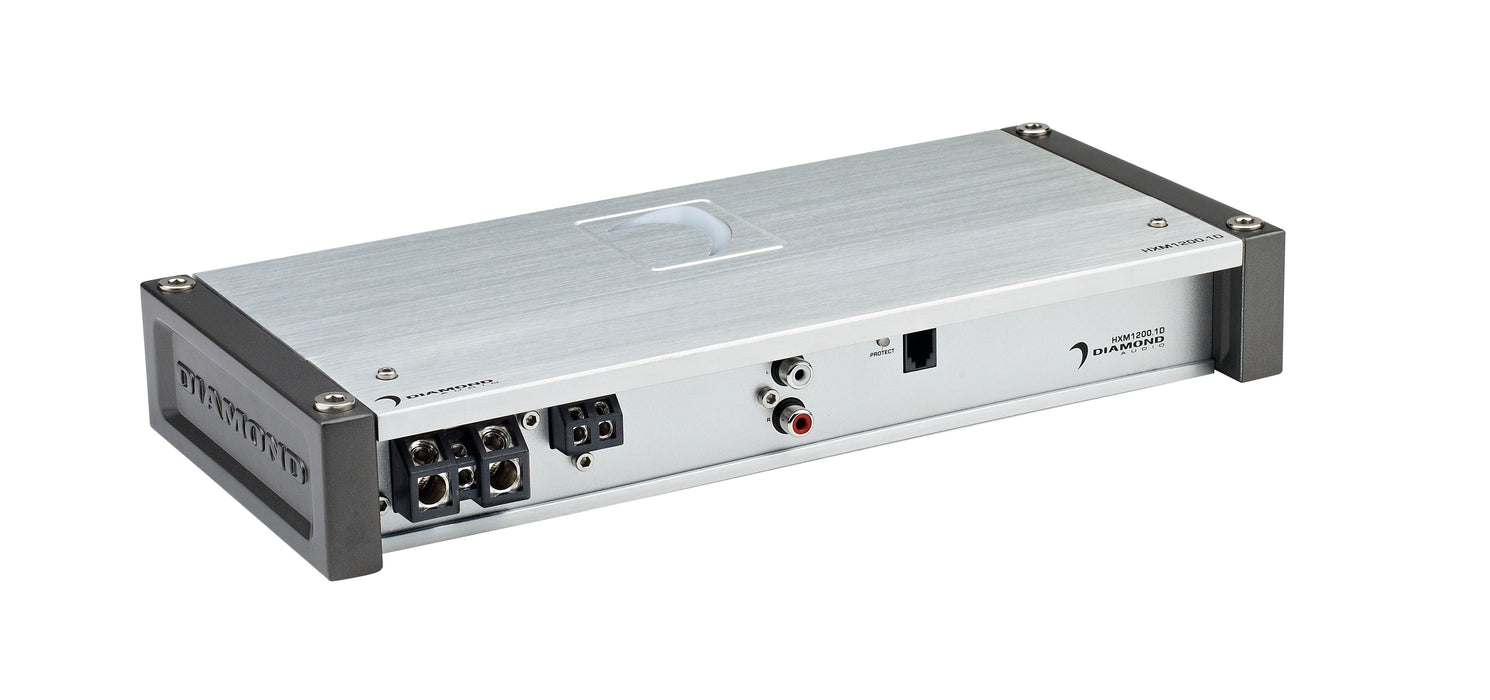

Diamond - HXM1200.1D - 1-CH 1200WX1@1Ω,850WX1@2Ω FULL RANGE CLASS D

Specifications
Type: Monoblock Full-Range Amplifier
Series: Diamond Audio HXM Motorsport Series
Class: D (Digital Full-Range)
Channels: 1
RMS Power Output (14.4V):
• 550W × 1 @ 4Ω
• 850W × 1 @ 2Ω
• 1200W × 1 @ 1Ω
Peak Power Output: 2400W
Frequency Response: 10Hz – 35kHz (±1dB)
Signal-to-Noise Ratio: >97dB
Input Sensitivity: 200mV – 6V
THD (Total Harmonic Distortion): <0.1%
Crossover Type: Variable High-Pass / Low-Pass Filter
Crossover Range: 20Hz – 5kHz (Variable)
Bass Boost: 0 – +12dB @ 45Hz
Input Type: RCA (Low-Level) / High-Level with Auto Turn-On
Cooling System: Conduction-Cooled Aluminum Heatsink
Fuse Rating: 2 × 40A (External Fuse Recommended)
Construction: Marine-Grade Sealed Chassis with Corrosion-Resistant Hardware
PCB Protection: Conformal-Coated Circuit Board
Waterproof Rating: IP65 (Salt Fog & UV Resistant)
Dimensions (L×W×H): 11.7" × 5.3" × 1.8" (298 × 135 × 46mm)
Weight: 6.8 lbs
Warranty: 1-Year Manufacturer Warranty
