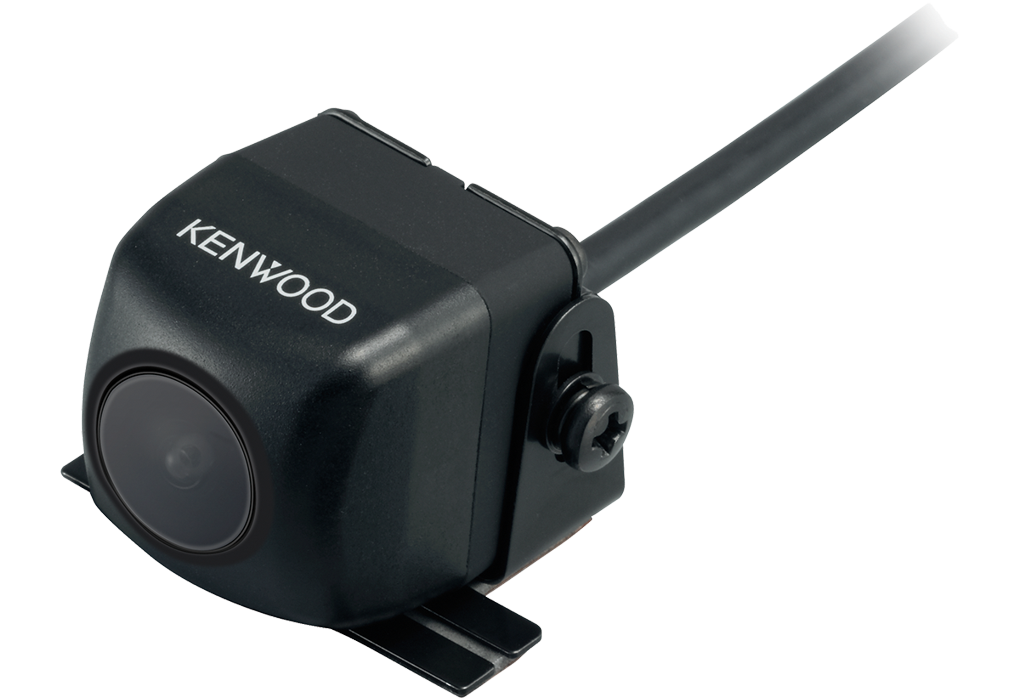

Kenwood - CMOS-320 - Multi-Angle Rear View Camera with Universal Mounting Hardware

Specifications
Type: Multi-View Rear/Backup Camera
Image Sensor: 1/3.6" Color CMOS Sensor
Effective Pixels: 330,000 Pixels
Viewing Angles:
• Horizontal: Approx. 138°
• Vertical: Approx. 114°
Selectable Viewing Modes:
• Normal View
• Wide View
• Overhead View
• Corner View (Split-Screen)
Minimum Illumination: 0.9 Lux
Video System: NTSC
Video Output: Composite (RCA)
Power Supply: 12V DC (with Built-in Noise Filter)
Current Consumption: 200 mA
Waterproof Rating: IP67 (Dustproof & Waterproof)
Mounting Hardware: Universal Adjustable Mount Included
Camera Cord Length: 9.84 ft (3 m)
Power Cable Length: 24.6 ft (7.5 m)
Operating Temperature: -22°F to 158°F (-30°C to 70°C)
Dimensions (W x H x D): 15/16" x 15/16" x 1"
Color: Black
Warranty: 1-year manufacturer warranty

Key Features
• Four selectable viewing angles – switch between Normal, Wide, Overhead, and Corner views directly from your compatible Kenwood receiver
• Wide 138° horizontal field of view provides full situational awareness for parking and maneuvering
• Compact CMOS sensor delivers sharp, high-quality video even in low-light conditions
• Universal mounting hardware allows clean installation on virtually any vehicle type
• IP67 waterproof housing ensures durability against rain, car washes, and extreme temperatures
• Seamless integration with Kenwood receivers for intuitive on-screen control
• Corner View Mode splits the screen to display both left and right rear corners simultaneously
• Genuine Kenwood engineering – precision optics, rugged build, and superior clarity for safer driving
