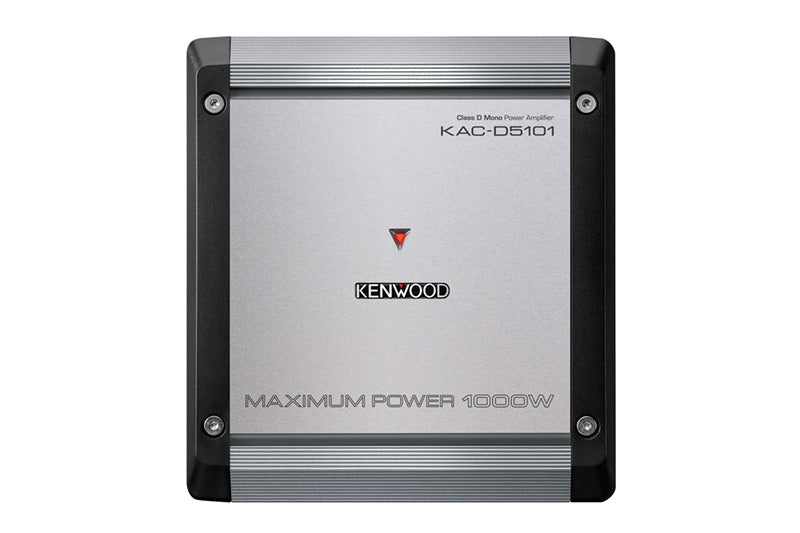

Kenwood - KAC-D5101 - Class D Mono Power Amplifier with LPF, 1000W Max Power

Specifications
Type: Class D Mono Channel Power Amplifier
Amplifier Class: Class D
Max Power Output: 1000 Watts
RMS Power Output:
• 500W x 1 @ 2Ω
• 300W x 1 @ 4Ω
Impedance: 2Ω Stable Operation
Frequency Response: 20 Hz – 200 Hz (±1 dB)
Signal-to-Noise Ratio: 85 dB
Low-Pass Filter (LPF): 50 Hz – 200 Hz (Variable, 24 dB/Oct)
Bass Boost: 0 – +18 dB @ 40 Hz
Input Sensitivity: 0.2V – 5V
Input Type: RCA Line-Level Inputs
Cooling System: Aluminum Heat Sink with Advanced Thermal Management
Protection Features: Thermal, Overcurrent, and Short Circuit Protection
Fuse Rating: 30A
Dimensions (W x H x D): 8-3/8" x 2-3/16" x 5-7/8"
Weight: 2.4 lbs (1.1 kg)
Warranty: 1-year manufacturer warranty

Key Features
• Compact and efficient Class D design – delivers clean, high-output bass with low power draw
• 1000W max power ensures hard-hitting performance for subwoofers and bass-heavy systems
• Variable low-pass filter provides smooth, accurate crossover tuning between sub and mid frequencies
• Selectable bass boost enhances low-end impact and depth
• Thermal and short circuit protection ensures safe and reliable operation under all conditions
• Aluminum heat sink improves heat dissipation for consistent performance
• 2Ω stable operation for maximum system flexibility and subwoofer compatibility
• Signature Kenwood sound – efficient, powerful, and engineered for clean, precise bass response
