Specifications

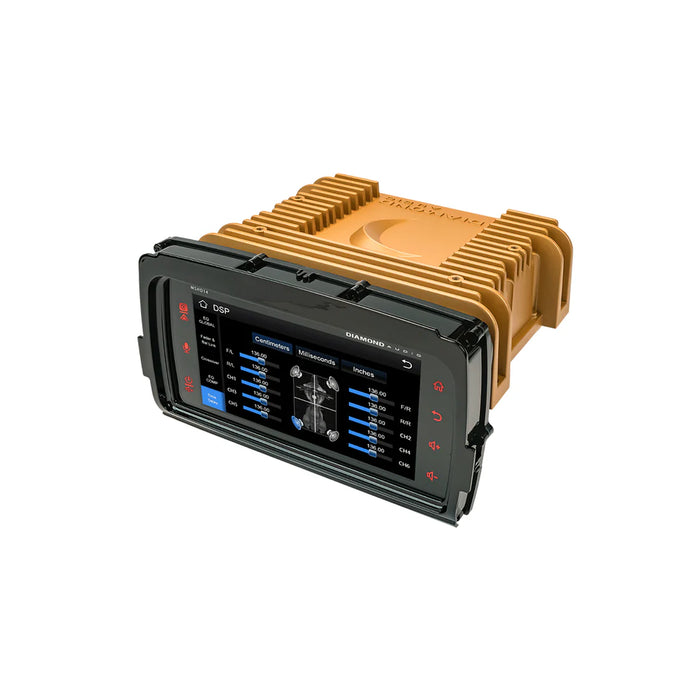

Type: Multimedia Receiver / Head Unit
Series: Diamond Audio Motorsport Harley-Davidson® Series
Vehicle Fitment: Harley-Davidson® Touring Models (2014 and Newer – Street Glide®, Road Glide®, Ultra, and Electra Glide®)
Display Type: 7" High-Resolution Capacitive Touchscreen
Display Brightness: 800 nits (Daylight Readable with Anti-Glare Coating)
Operating System: Embedded Linux Platform with CarPlay® & Android Auto™ Support
Compatibility: Apple CarPlay® / Android Auto™ (Wired & Wireless)
Bluetooth Version: 5.0 (A2DP / HFP / AVRCP)
Inputs:
• (2) USB Inputs (Data + Fast Charge)
• (1) Rear Camera Input (RCA)
• (1) AUX Input (3.5 mm / RCA)
• (1) Handlebar Control Input (Plug-and-Play OEM Integration)
Outputs:
• (4) RCA Preamp Outputs (Front / Rear / Subwoofer) – 4V
• (1) Video Output
• (1) Remote Amplifier Turn-On Lead
Built-In Amplifier: 4 × 50 W RMS (High-Efficiency MOSFET)
Equalization / DSP: 15-Band Graphic EQ + Adjustable Loudness + Time Alignment
Crossovers: Fully Adjustable HPF / LPF on Each Channel
Supported Audio Formats: MP3, FLAC, WMA, AAC, WAV
Radio Tuner: AM / FM with RDS Display
Operating Voltage: 10 V – 16 V DC
Waterproof Rating: IP66 (Waterproof, Dustproof, and UV-Protected)
Faceplate Material: Marine-Grade Polymer with UV Stabilization
Chassis: Die-Cast Aluminum Housing (Anti-Vibration and Sealed Design)
Screen Protection: Anti-Glare and Anti-Fingerprint Coating
Mounting Type: Direct Bolt-In Fit for Harley 2014+ Fairings (Plug-and-Play)
Button Illumination: RGB Color Control with Adjustable Brightness
Operating Temperature: -20°C to +70°C
Dimensions (L×W×H): 8.4" × 4.8" × 2.6" (213 × 122 × 66 mm)
Weight: 3.0 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Designed as a direct waterproof multimedia replacement for 2014+ Harley-Davidson® touring models.
• IP66 waterproof certification ensures full resistance to rain, UV, dust, and vibration.
• Supports both wired and wireless Apple CarPlay® and Android Auto™ integration for seamless smartphone control.
• Enhanced DSP and 15-band EQ deliver precise audio tuning directly from the unit.
• Bright, high-contrast touchscreen remains fully visible in direct sunlight or nighttime conditions.
Key Features
• Plug-and-Play OEM Fitment – Bolts directly into factory fairing without modification.
• IP66 Waterproof Construction – Built to withstand outdoor exposure and harsh riding environments.
• Apple CarPlay® / Android Auto™ – Hands-free navigation, music, and communication.
• Bluetooth 5.0 – Reliable, high-quality audio streaming and call handling.
• 800-Nit Daylight Display – Crystal-clear visibility even under sunlight glare.
• Built-In DSP & Time Alignment – Fine-tune your system for precise, immersive sound staging.
• 4V RCA Preouts – Ideal for multi-amp, high-output audio systems.
• Diamond Audio Motorsport Durability – Designed for performance, endurance, and style on every ride.
Performance Integration Notes
• Ideal Pairing: Diamond MICRO84U, MICRO81U, or DXM800.4D amplifiers.
• System Compatibility: Direct OEM fit for Harley-Davidson® 2014+ Touring Models.
• Recommended Use: Complete multimedia and audio command center for premium motorcycle builds.
• Installation Time: Approx. 45–60 minutes (uses stock harness and mounting points).
• Pro Tip: Seal all exposed connectors with dielectric grease and mount USB extensions under the fairing to preserve waterproofing and long-term reliability.
