Specifications

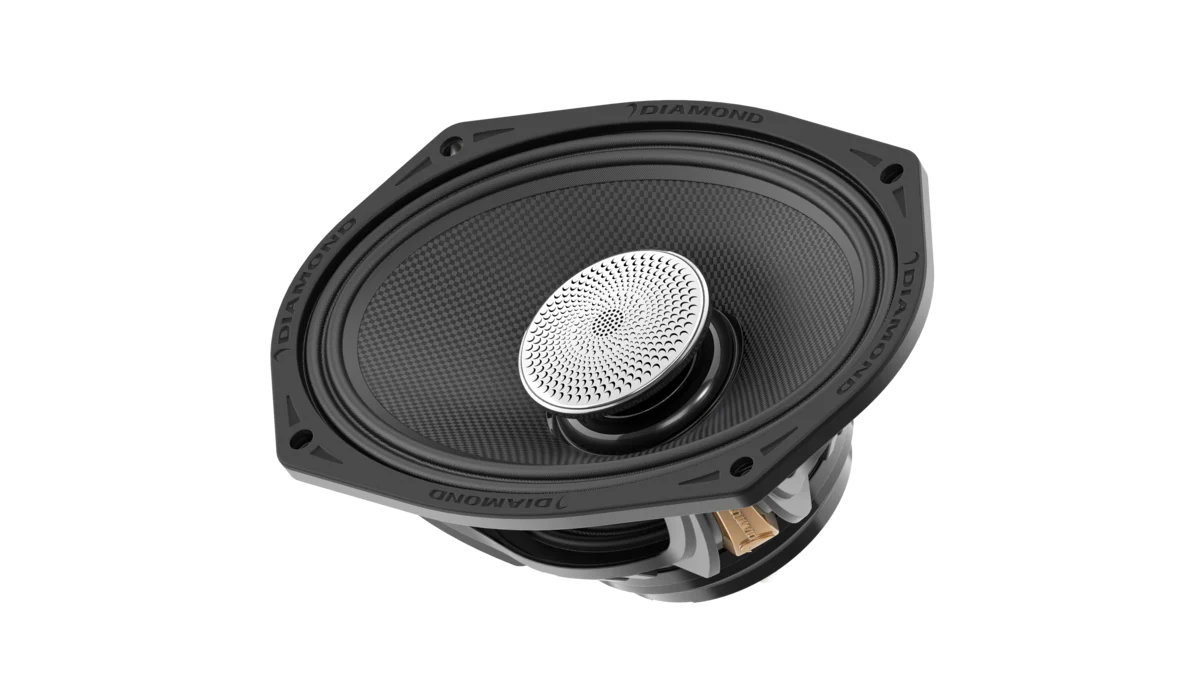

Type: High-Performance Waterproof Full-Range Coaxial Horn Speaker
Series: Motorsport NEO Series
Size: 6x9-inch (Oval Frame)
Impedance: 2Ω
Power Handling (RMS): 400W
Power Handling (Peak): 800W
Sensitivity (1W/1m): 97dB
Frequency Response: 80Hz – 22kHz
Cone Material: Carbon-Fiber Reinforced Poly Matrix
Surround: UV-Treated Rubber
Voice Coil: 2-inch High-Temperature Copper on Kapton Former
Tweeter Type: Integrated Compression Horn Driver
Tweeter Diaphragm: Titanium Dome
Magnet Structure: Neodymium Motor Assembly (Ultra-Lightweight)
Frame: High-Strength Glass-Filled Composite Basket
Crossover: Built-In 12dB High-Pass Network
Waterproof Rating: IP65 – Marine and Powersport Certified
Mounting Depth: 3.35" (85mm)
Mounting Cutout: 8.7" x 5.9" (221mm x 150mm)
Weight: 4.2 lbs (Each)
Warranty: 2-Year Manufacturer Warranty
Performance Specs
• Engineered for maximum output and clarity in marine, motorcycle, and powersport applications.
• Neodymium motor provides ultra-high sensitivity and reduced weight for superior efficiency.
• Titanium horn compression driver delivers extended, crystal-clear highs with pinpoint detail.
• Carbon-fiber cone delivers powerful midbass and long-term weather resistance.
• True waterproof construction withstands heavy vibration, UV exposure, and outdoor conditions.
Key Features
• High-Power Coaxial Design – Combines full-range midbass and horn tweeter for seamless soundstage.
• Lightweight Neodymium Motor – Reduces mass while increasing magnetic strength and SPL efficiency.
• Carbon-Fiber Cone – Rigid, responsive, and impervious to water and UV degradation.
• Integrated Compression Horn – Produces brilliant highs that cut through open-air noise.
• Built-In Crossover – Optimized for full-range frequency blending and tweeter protection.
• Motorsport-Grade Durability – Designed for motorcycles, boats, and side-by-sides.
• Diamond Audio Engineering – Tuned for high-SPL performance with studio-grade clarity.
Performance Integration Notes
• Ideal Pairing: Diamond Audio Motorsport Amplifiers (HXM800.4D, HXM1500.2D, etc.).
• System Compatibility: Harley-Davidson®, marine, UTV, and custom powersport audio systems.
• Recommended Use: High-output full-range speaker in 2-way or coaxial systems.
• Installation Location: Bag lids, fairings, doors, or marine enclosures.
• Installation Time: Approx. 45–60 minutes per pair.
• Pro Tip: For maximum efficiency, high-pass filter at 80Hz @ 12dB/oct and angle horns toward rider or cockpit area for balanced imaging.
