Specifications

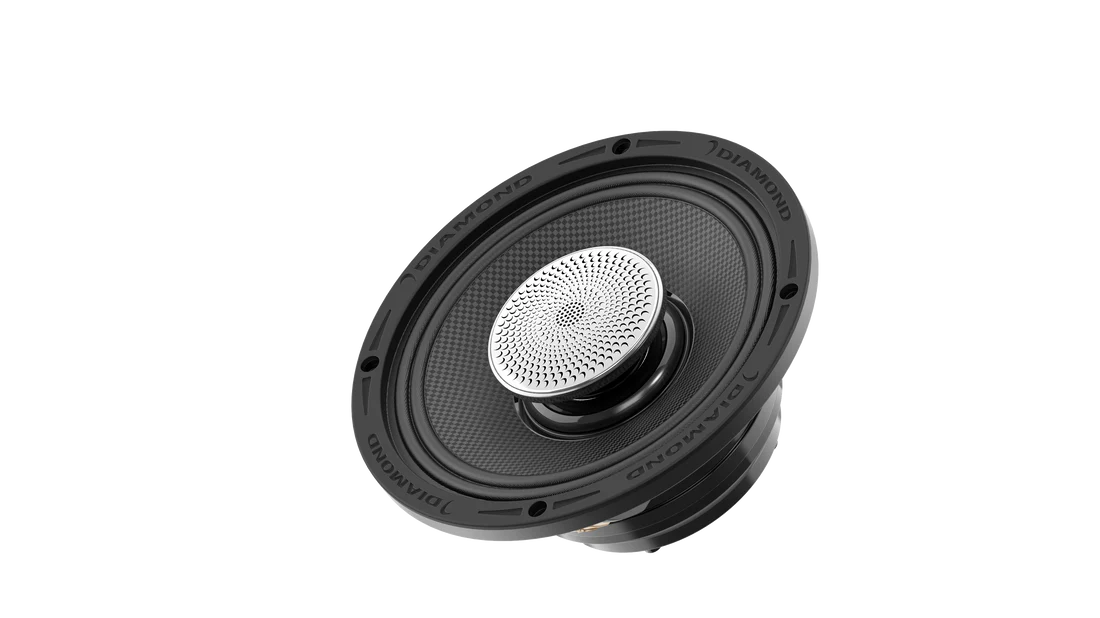

Type: High-Performance Waterproof Full-Range Coaxial Horn Speaker (Shallow Mount)
Series: Motorsport NEO Series
Size: 6.5-inch (165mm)
Impedance: 4Ω
Power Handling (RMS): 400W
Power Handling (Peak): 800W
Sensitivity (1W/1m): 97dB
Frequency Response: 80Hz – 22kHz
Cone Material: Carbon-Fiber Reinforced Poly Matrix
Surround: UV-Treated Rubber
Voice Coil: 2-inch High-Temperature Copper Wound on Kapton Former
Tweeter Type: Integrated Compression Horn Driver
Tweeter Diaphragm: Titanium Dome
Magnet Structure: Compact Neodymium Motor Assembly (Ultra-Light, High-Flux Design)
Frame: High-Strength Glass-Filled Composite Basket
Crossover: Built-In 12dB High-Pass Network
Mounting Depth: 2.75" (70mm) – Shallow Mount Design
Mounting Cutout: 5.6" (142mm)
Overall Diameter: 6.9" (175mm)
Waterproof Rating: IP65 – Marine and Powersport Certified
Weight: 3.9 lbs (Each)
Warranty: 2-Year Manufacturer Warranty
Performance Specs
• Produces powerful, full-range sound in tight or shallow mounting locations.
• 4Ω impedance ensures wide amplifier compatibility with balanced power handling.
• Titanium compression horn delivers crystal-clear highs and superior projection.
• Carbon-fiber cone provides responsive midbass and long-term structural stability.
• Fully weatherproof construction designed for marine, motorcycle, and powersport environments.
Key Features
• Shallow-Mount Profile – Perfect for fairings, pods, or tight enclosures.
• Neodymium Magnet Motor – Lightweight, efficient design for high SPL output.
• Carbon-Fiber Cone – Rigid, waterproof, and optimized for clarity and control.
• Integrated Titanium Horn Tweeter – Produces brilliant, detailed highs with wide dispersion.
• Built-In Crossover – Balanced transition between midrange and high frequencies.
• Motorsport-Grade Durability – Resistant to vibration, heat, and UV exposure.
• Diamond Audio Quality – Tuned for precision sound and long-term reliability.
Performance Integration Notes
• Ideal Pairing: Diamond HXM800.4D or HXM1500.2D Amplifiers (4Ω Stable).
• System Compatibility: Harley-Davidson®, Marine, UTV, and Custom Powersport Systems.
• Recommended Use: Compact high-output full-range driver for shallow enclosures.
• Installation Location: Bag lids, fairings, or custom motorcycle and marine pods.
• Installation Time: Approx. 45 minutes per pair.
• Pro Tip: For best clarity and protection, apply a high-pass filter at 90Hz @ 12dB/oct in shallow-mount applications.
