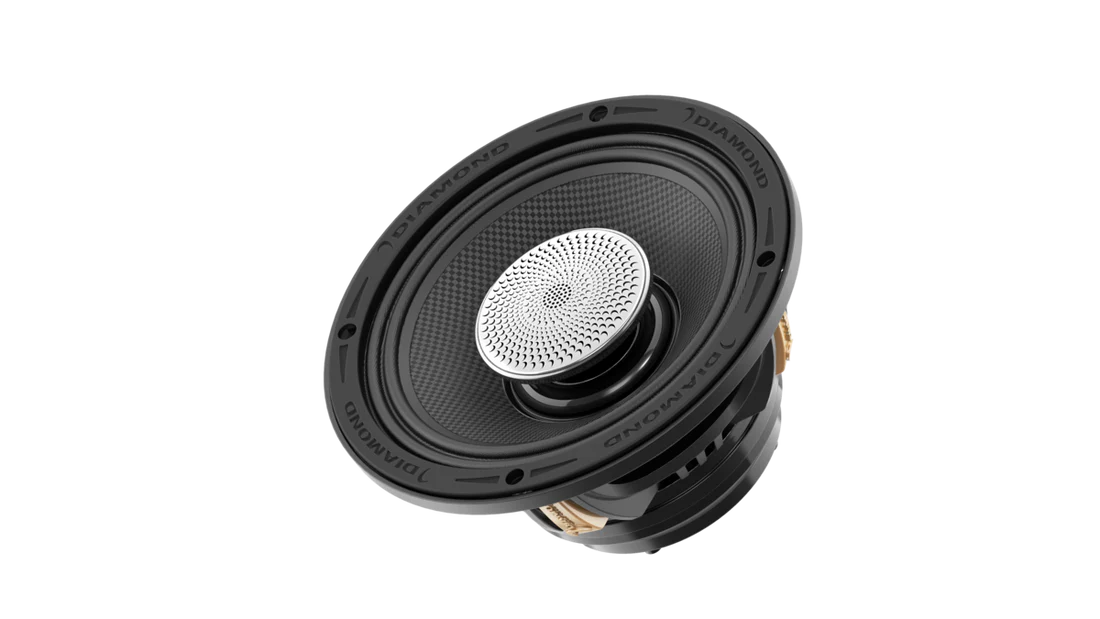

    Diamond - MS652NEO4 - MOTORSPORT SERIES 6.5" NEODYMIUM FULL RANGE COAXIAL HORN WATERPROOF, 400W RMS 4 Ohms

    Diamond - MS652NEO4 - MOTORSPORT SERIES 6.5" NEODYMIUM FULL RANGE COAXIAL HORN WATERPROOF, 400W RMS 4 Ohms

    by Diamond
    Sold out
    $849.99 - $849.99
    $849.99
    $849.99 - $849.99
    $849.99



    Discover the future of audio with Diamond Audio’s NEO Series Coaxial Drivers, representing the height of sound engineering. Built with precision, these drivers blend the superior qualities of our NEO midbass and midrange technology with innovative waterproof horn design. Expect exceptional clarity, powerful output, and seamless installation. Every component is engineered to exacting standards, featuring premium voice coils, advanced motor assemblies, robust basket construction, versatile bi-amp options, and durable waterproof materials. More than just speakers, they elevate your audio experience to extraordinary heights. For those familiar with our MS NEO line, prepare for an enhanced level of sonic excellence. Elevate your sound with Diamond Audio’s NEO Series.



    Specifications

    SPEAKER SIZE - 6.5"
    SPEAKER TYPE - HORN LOADED CO AXIAL
    BI-AMPABLE YES
    OHMS (PER COIL) - 4
    NUMBER OF VOICE COILS - DUAL
    FIELD SERVICABLE VOICE COIL - YES
    CONE MATERIAL - CARBON FIBER
    DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE
    BASKET MATERIAL - CAST ALUMINIUM
    MAGNET TYPE - NEODYMIUM
    SURROUND MATERIAL - RUBBER
    WATER RESISTANCE -
    VOICE COIL DIAMETER - INCH (MM) - 2"
    THIELE/SMALL PARAMETERS
    SENSITIVITY (1W/1M): 93
    RE (Ω) [SERIES]: 3.2
    QMS: 10.357
    QES: 0.67
    QTS: 0.629
    FS (HZ): 151
    VAS (L): 2.756
    CMS (MM/N): 0.094
    MMS (G): 11.728
    SD (M2): 143.14
    BL (T*M): 7.289
    XMAX (MM): 1.2
    POWER HANDLING RMS: 200
    POWER HANDLING MAX: 400
    MOUNTING DEPTH: IN.(MM):3.43" (87.13MM)
    CUT OUT DIAMETER IN.(MM):5.63" (143MM)
    OVER ALL DIAMETER IN.(MM):6.65" (169MM)
    OVER ALL HEIGHT IN.(MM):3.79" (96.33MM)
