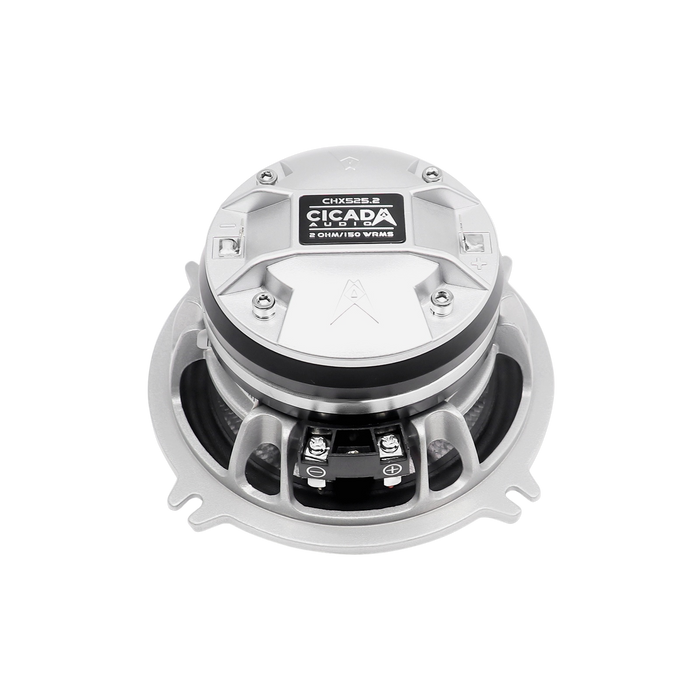

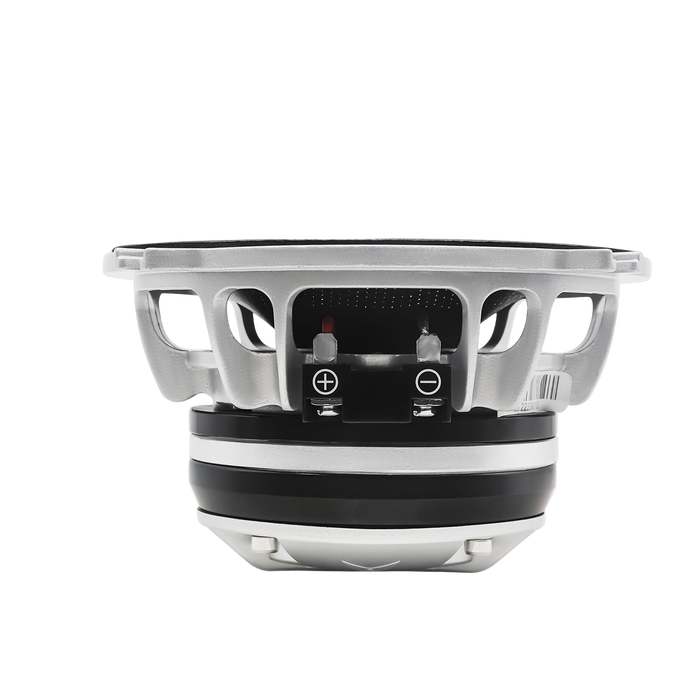

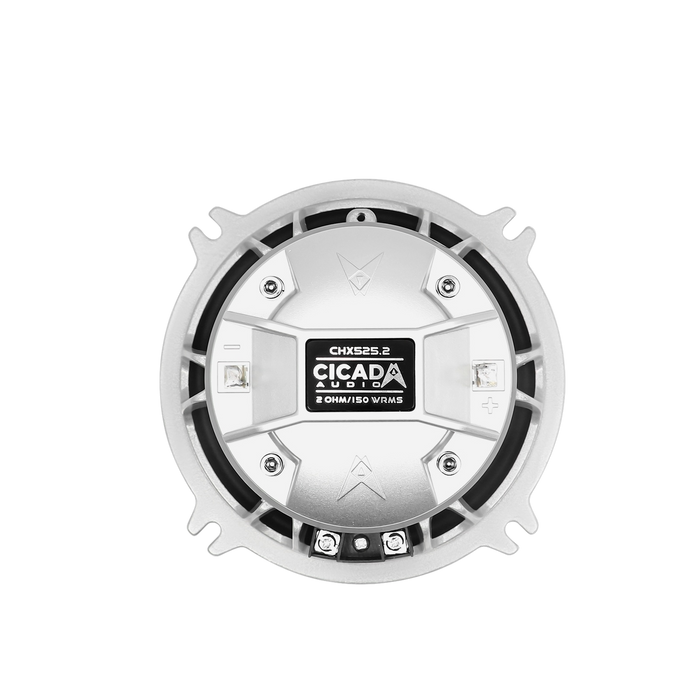

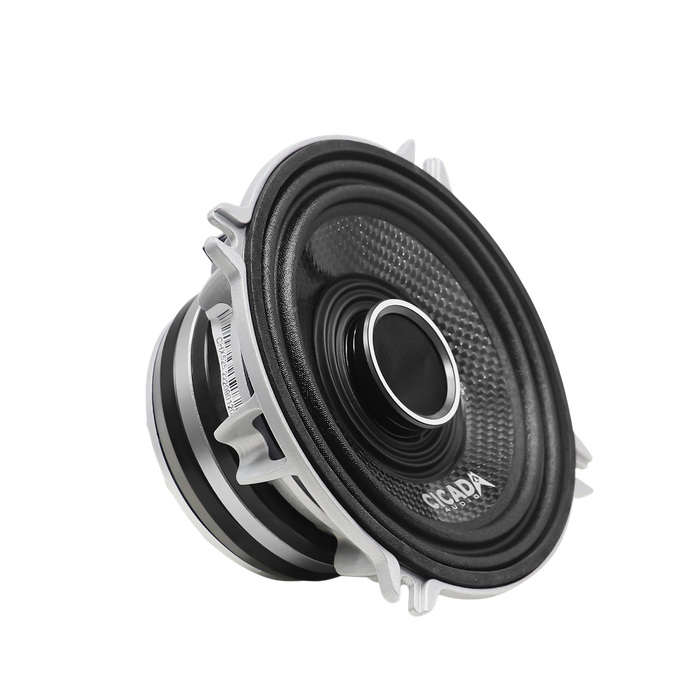

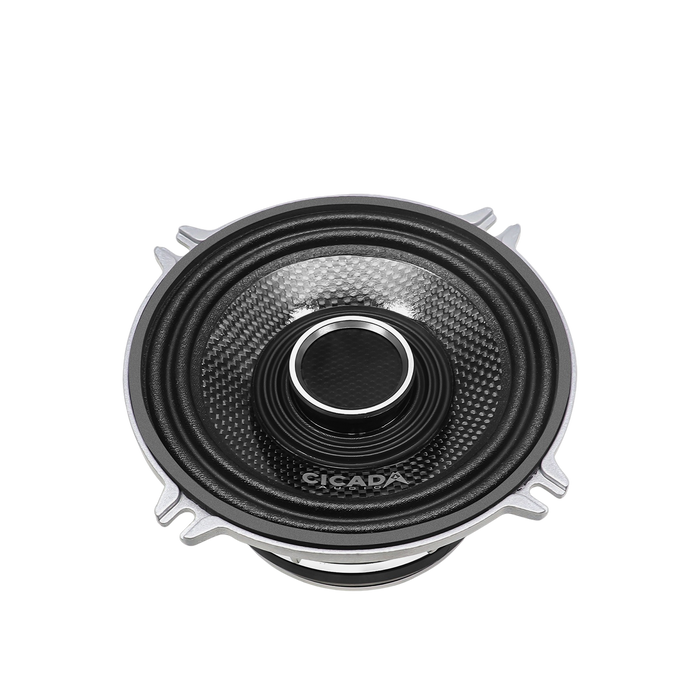

Cicada Audio - CHX525.2 - Pro Coaxial Horn - Carbon Matrix Cone 5.25-inch - 2Ω

Specifications
Type: High-Performance Pro Coaxial Horn Speaker
Size: 5.25-inch (133mm)
Impedance: 2Ω
Power Handling (RMS): 100W
Power Handling (Peak): 200W
Sensitivity (1W/1m): 96dB
Frequency Response: 80Hz – 20kHz
Cone Material: Carbon Matrix Composite
Surround: High-Compliance Rubber
Voice Coil: 1.5-inch Copper Wound on Kapton Former
Horn Driver: Integrated High-Efficiency Compression Tweeter
Magnet Structure: High-Grade Ferrite Motor with Vented Back Plate
Frame: Cast Aluminum Basket for Maximum Rigidity
Crossover: Built-In High-Pass Filter (12dB/Oct)
Mounting Depth: 2.5" (63.5mm)
Mounting Diameter: 4.7" (119mm)
Overall Diameter: 5.5" (140mm)
Weight: 2.1 lbs (Each)
Grilles: Included (Black Mesh Steel)
Warranty: 2-Year Manufacturer Warranty

Performance Specs
• Delivers crisp, detailed highs and powerful midbass from a compact 5.25" footprint.
• Integrated horn-loaded compression driver projects clean, high-output sound ideal for open-air or motorcycle applications.
• Carbon matrix cone offers exceptional stiffness-to-weight ratio for superior transient response.
• Low impedance 2Ω design extracts maximum power from Cicada amplifiers for dynamic headroom.
• Engineered for high-efficiency performance even in high-noise environments.

Key Features
• True Pro Audio Coaxial Design – Midrange and horn tweeter combined in a single unit for perfect alignment.
• Carbon Matrix Cone – Lightweight and rigid, ensuring distortion-free clarity at extreme volume.
• Integrated Compression Horn – Delivers the signature Cicada “bite” with rich tonal definition.
• High Efficiency – Optimized for 2Ω operation, ideal for motorcycle and powersport systems.
• Rugged Construction – Cast aluminum frame and moisture-resistant materials for long-term durability.
• Plug-and-Play Upgrade – Designed to fit Harley-Davidson® and custom audio applications with minimal modification.

Performance Integration Notes
• Ideal Pairing: Cicada CXX100.4D or CXX150.4D amplifiers (2Ω stable).
• System Compatibility: Harley-Davidson® bag-lid and fairing speaker locations.
• Recommended Use: Midrange / High-frequency fill for 2-way or 3-way pro audio builds.
• Installation Time: Approx. 30–45 minutes per pair.
