Specifications

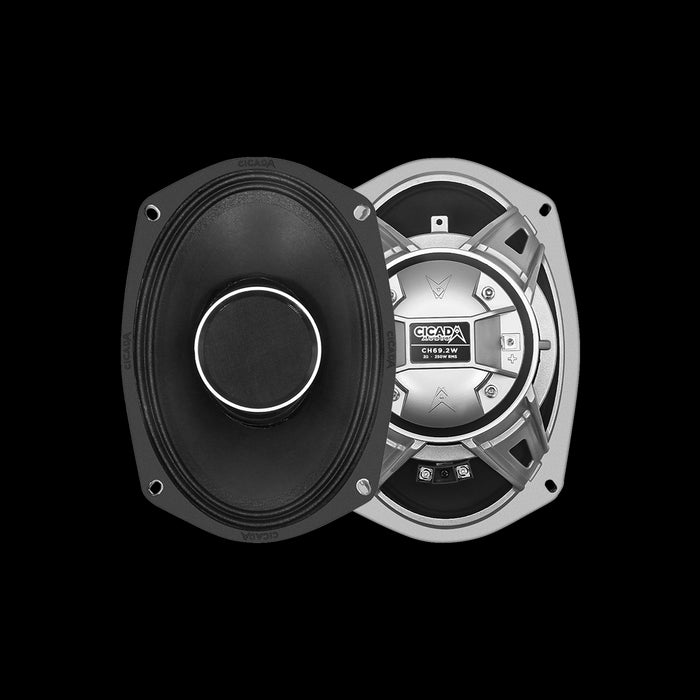

Type: All-Weather Coaxial Horn Speaker
Speaker Size: 6x9" (152 mm x 229 mm)
Impedance: 2 Ω
RMS Power Handling: 200 W
Peak Power Handling: 400 W
Sensitivity: 96 dB (1W / 1m)
Frequency Response: 50 Hz – 20 kHz
Cone Material: Carbon Matrix Reinforced Pulp Composite
Tweeter Type: Integrated Compression Horn Tweeter
Tweeter Diaphragm: Titanium Dome
Horn Throat Diameter: 1" (25 mm)
Voice Coil Diameter: 1.75" High-Temperature Copper
Magnet Structure: Dual High-Energy Ferrite Motors
Basket: Marine-Grade Cast Aluminum Frame
Surround: UV-Stable Rubber Surround
Mounting Depth: 3.5" (89 mm)
Weatherproofing: IPX6 Rated – UV, Water, and Vibration Resistant
Sold As: Pair (Left and Right Speakers)
Warranty: 2-Year Manufacturer Warranty
Audio Performance Specs
• Frequency Range: 50 Hz – 20 kHz – Delivers balanced full-range response with extreme midbass punch and crisp highs.
• Sensitivity: 96 dB – Designed for high SPL performance even in open-air motorcycle applications.
• 2-Ohm Configuration: Maximizes power delivery and loudness from compact amplifier systems.
• Dynamic Output: Combines horn-loaded precision with deep midbass extension for full-spectrum clarity.
• Thermal Management: Large vented magnet assembly ensures stability and long-term reliability under heat.
Key Features
• All-Weather Design – Marine-grade build protects against UV rays, water, and corrosion, ideal for Harley-Davidson®, UTV, and marine systems.
• Integrated Horn Tweeter – Titanium diaphragm compression driver delivers stunning clarity and projection.
• Carbon Matrix Cone – Lightweight yet rigid composite cone for punchy, distortion-free midbass response.
• 2-Ohm Impedance – Optimized for maximum output with high-current amplifiers like the Cicada CX or DSP series.
• Cast Aluminum Basket – Provides superior rigidity and heat dissipation for consistent high-volume operation.
• High-Output Efficiency – Tuned for aggressive SPL and precision sound staging in outdoor environments.
• Weatherproof Performance – Built to thrive in any riding or marine condition with no loss of sonic integrity.
• Cicada Audio Engineering – Designed and tested in the USA to meet the extreme demands of real riders and pro installers.
Performance Integration Notes
• Recommended Amplifiers: Cicada DSP150.4D / CX150.4D / FLX250.4D.
• System Fit: Harley-Davidson® Bag Lids, Fairings, and Custom Outdoor Installs.
• Crossover Settings: HPF 55–60 Hz / LPF 18–20 kHz (24 dB/Octave).
• Compatible Grilles: Cicada CBG69FR / CBG69MT (Billet or Plastic Options).
• Installation Time: Approx. 45–60 minutes (Professional Installation Recommended).
