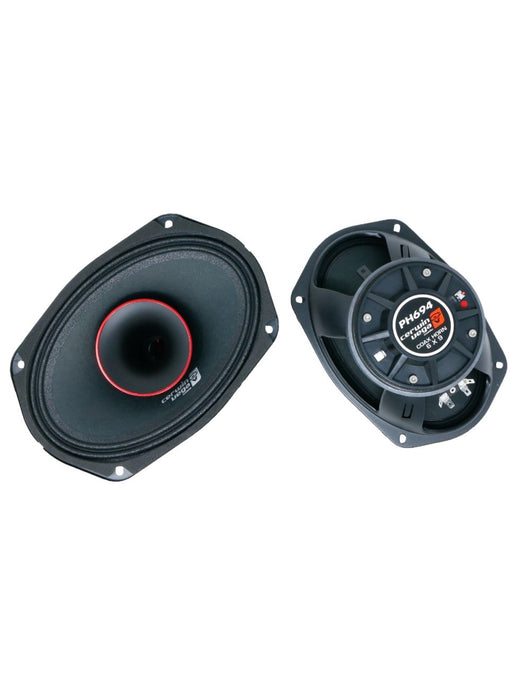

Cerwin Vega - PH694 - 6" x 9" CVP Pro Full-range Co-Ax, pair - 160W RMS/320W MAX

DESCRIPTION

• 6" × 9" full-range pro coaxial speaker set

• 160W RMS / 320W Max power handling

• Sold as a pair

• Designed for high-output motorcycle bag lids, pods, and open-air systems

FEATURES

• Horn-loaded high-frequency driver provides projection and vocal clarity at speed

• Pro-audio midrange cone delivers aggressive midbass and upper mid punch

• Engineered for open-air environments (motorcycle / side-by-side / marine)

• Weather-resistant cone treatment withstands heat, sun, and road moisture

• Stamped steel basket with reinforced structure for vibration-heavy installs

• Designed for amplifier-driven systems (not recommended for head-unit power)

SPECIFICATIONS

• Size: 6" × 9"

• Configuration: Horn-Loaded 2-Way Coaxial

• RMS Power: 160W

• Peak Power: 320W

• Impedance: 4 Ω

• Frequency Response: ~80 Hz – 20 kHz (installation & enclosure dependent)

• Sensitivity: High-efficiency, tuned for long-throw projection

• LF Cone Material: Treated composite midrange/bass cone

• Surround: Weather-stable rubber

• HF Section: Compression-style horn diaphragm integrated into center assembly

• Basket: Stamped steel frame

• Motor: High-density ferrite magnet

DIMENSIONS

• Frame Width: ~10.9 in (277 mm)

• Frame Height: ~7.6 in (193 mm)

• Cutout Opening: ~8.8 in × 5.9 in (224 mm × 150 mm)

• Mounting Depth: ~3.1 in (79 mm)

• Top Mount Height: Raised horn driver — ensure grille / lid clearance

FITMENT

• Motorcycle saddlebag lid kits, bag pods, and fairing speaker pods

• UTV / ATV cage-mount pods

• Marine and outdoor use when installed in sealed or weather-resistant enclosures

• Requires external amplifier for proper performance

INCLUDES

• (2) PH694 Coaxial Speakers

• Mounting hardware (varies by application)
