    Kenwood - DAX8000S - Direct Replacement Solution- Factory Fit 8" High resolution screen and modular box/brain, Wireless Car Play Ready,

    Kenwood - DAX8000S - Direct Replacement Solution- Factory Fit 8" High resolution screen and modular box/brain, Wireless Car Play Ready,

    by Kenwood
    $1,250.00 - $1,250.00
    $1,250.00
    $1,250.00 - $1,250.00
    $1,250.00

    DirectReplacement
    OEM Replacement Solution

    DirectReplacement

    With the introduction of Direct Replacement Category and the adaptation of Maestro APX Parts, the Receiver is Designed to fit seamlessly into OEM dashboards with retaining OEM receiver controls and features.

    Click here for the Compatible vehicle List

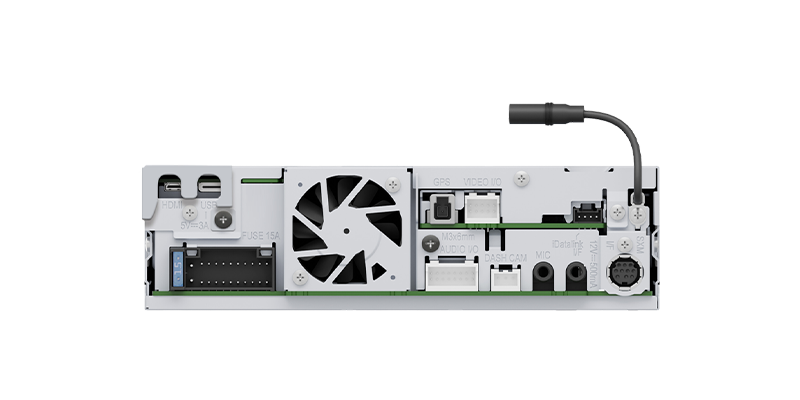

    Separated Display and Chassis

    The display and chassis are separated, and the chassis can be placed either vertically or horizontally, allowing for flexible installation in a variety of vehicles.

    Vertical Installation

    Horizontal Installation

    KCA-A150EX External Cable (Sold Separately)

    If the cable connecting the Display and Chassis is not long enough, you can solve the problem by connecting a 5ft (1.5m) extension cable (sold separately).

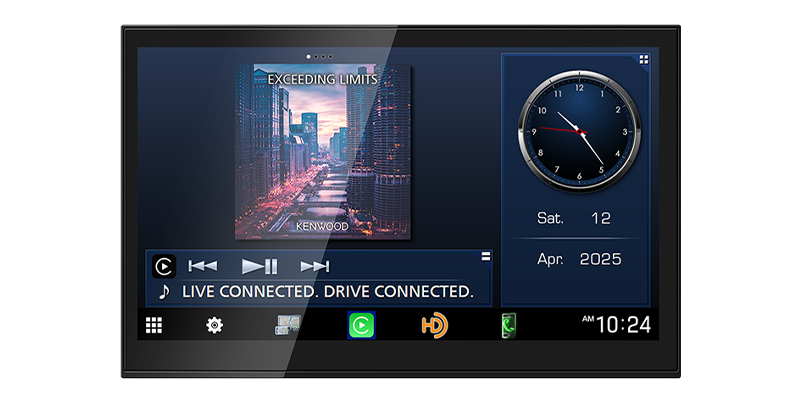

    High Definition Display

    High Definition
    — Overwhelming Power of Expression —

    8" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.

    2.4x Resolution
    of the WVGA Display

    WIDER VIEWING ANGLE
    — BEAUTIFUL FROM ANY SEAT —

    The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.

    from Above 85°

    from Left 85°

    from Right 85°

    from Below 85°

    Smartphone Connectivity

    Apple CarPlay® – Connect Wirelessly or via USB

    A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

    *Some features, applications, and services are not available in all areas.
    For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

    Works with Apple CarPlay

    Apple CarPlay – Split Screen Support

    You can view and operate both Apple CarPlay and KENWOOD source in the same screen.

    KENWOOD's split native screen area

    Android Auto ™ – Connect Wirelessly or via USB

    Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

    *Compatible Android phone and compatible active data plan required.
    *Some features and devices may not be available in all countries. Subject to availability.

    *Selected mobile phones only.

    Works with Android Auto

    Android Auto – Split Screen Support

    You can view and operate both Android Auto and KENWOOD source in the same screen.

    KENWOOD's split native screen area

    Wireless Mirroring for Smartphone

    Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Smartphone devices.

    *Selected smartphones only

    HDMI Mirroring for Smartphones

    Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 8" monitor. KCA-HD200 optional HDMI cable sold separately.

    KENWOOD Portal App

    Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.

    The Best Audio Experience

    Rich and Immersive High-Resolution Audio

    High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24Bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.

    *The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.



    Parametric Equalizer

    You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.

    Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

    Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

    Playable Video & Audio Files

    You can play back from USB devices audio and video files compressed in various formats.

    Audio Format Video Format

    Safe Driving

    ENHANCED VEHICLE INTEGRATION

    Enhance your vehicle integration with the iDatalink Maestro RR/RR2 (sold separately). This system allows you to retain your factory steering wheel audio controls, factory amplifier, and secondary displays. Additionally, it can display crucial vehicle information, such as performance data, climate controls, and battery voltage, when connected to compatible vehicles. For added convenience, radar detector information can be shown on the screen when paired with a compatible K40 radar detector system (sold separately). With the iDatalink Maestro RR2, you can also integrate an Escort radar detector system (sold separately) for a seamless driving experience.

    *Available features vary by vehicle

    Rear View Camera Input with Parking Guidelines

    An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

    HD Front / Rear Camera Input

    The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

    WVGA Camera

    HD Camera

    4 Camera Inputs

    To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately).  Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

    RECOMMENDED COMBINATION
    DASHCAM + HD REAR CAM + RIGHT CAM + LEFT CAM

    RECOMMENDED COMBINATION
    FRONT CAM + HD REAR CAM + RIGHT CAM + LEFT CAM

    Dash Cam Link Ready

    Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.

    Additional Features

    DRIVING WIDGET HOME SCREEN

    The 8" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.


    Pitch & Roll GUI

    The gyro sensor accurately captures the vehicle's angle and direction and displays it on the screen even on gravel roads, mountain roads, and rough terrain.

    SiriusXM Ready
    (optional SiriusXM tuner required, sold separately)

    Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

    SiriusXM READY

    SiriusXM 360L Ready

    SiriusXM 360L is the latest-generation audio platform from SiriusXM, combining satellite radio with internet streaming. SiriusXM 360L offers over 100 music channels, a vast library of on-demand content, and a live sports category where you can listen to game broadcasts and sporting events. It also features personalized "For You" recommendations, a Spotlight section, and easy access to related content.


    *To enjoy 360L contents, it is necessary that the device is connected to the internet and H/U is connected with the device by Wi-Fi.
    In addition, “360L IP Connection” in SETUP has to be set to ON.
    *SiriusXM 360L requires a dedicated WiFi connection. Other Apps that require a WiFi connection may not work while SiriusXM 360L is in use.

    SiriusXM 360L

    Built-in HD Radio Tuner

    HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

    HD Radio

    USB Type-C

    USB Type-C cable and USB Type-A adapter are included to the set.Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A

    USB Type-C

    Remote Control Included

    This receiver unit can be operated using the remote control.
