Specifications

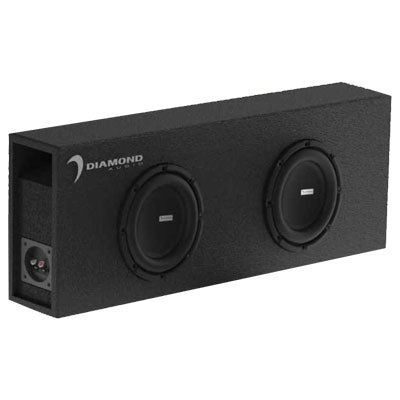

Type: Dual 8" Vented Subwoofer Enclosure
Series: Diamond Audio DES Microbox Series
Subwoofer Size: Dual 8" (203 mm)
Configuration: Dual Subwoofers (2 × 4Ω or 2 × 2Ω, depending on version)
Power Handling (RMS): 500 W
Power Handling (Peak): 1,000 W
Nominal Impedance: 2 Ω (Final Load, Wired Configuration)
Frequency Response: 30 Hz – 250 Hz
Sensitivity (1W/1m): 90 dB
Enclosure Type: Dual Slot-Ported Vented Design
Cone Material: Non-Pressed Paper with Kevlar Reinforcement
Surround Material: High-Density Rubber Surround
Voice Coil: 2" (50 mm) Copper Wound on Aluminum Former
Basket: Heavy-Duty Stamped Steel Frame
Magnet Type: High-Energy Ferrite Motor Assembly
Enclosure Material: High-Density MDF with Internal Bracing
Enclosure Finish: Durable Black Carpet with Embroidered Diamond Logo
Port Configuration: Dual Flared Slot Ports – Front-Firing Design
Cooling System: Rear Venting for Voice Coil Heat Dissipation
Terminal Cup: Spring-Loaded Nickel-Plated Binding Posts
Tuning Frequency: 38 Hz
Dimensions (L×W×H): 24.0" × 12.5" × 11.0"
Weight: 32 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Dual 8" subwoofer enclosure engineered for maximum bass in minimal space.
• Delivers strong, punchy output with tight low-end control.
• Dual flared ports reduce turbulence and distortion for clean sound.
• Optimized internal volume and tuning deliver deep, accurate bass response.
• Designed for drop-in installation and plug-and-play amplifier pairing.
Key Features
• Dual 8" High-Output Drivers – Compact yet powerful bass solution.
• Vented Enclosure – Enhances low-end output and efficiency.
• Kevlar-Reinforced Cones – Rigid, lightweight construction for durability.
• Heavy-Duty MDF Construction – Minimizes resonance for solid, controlled performance.
• Front-Firing Slot Ports – Improved airflow and deeper bass extension.
• Factory Pre-Wired – Simplifies installation and ensures proper impedance.
• Diamond Audio Engineering – Tuned for clean, musical, and hard-hitting bass response.
Performance Integration Notes
• Ideal Pairing: Amplifier rated 400–600 W RMS @ 2Ω (Diamond MICRO81U, DES1000.1D, or DXM1200.1D recommended).
• System Compatibility: Designed for trucks, cars, and compact vehicle installs.
• Recommended Use: Daily use or competition-grade low-end reinforcement.
• Installation Time: Approx. 1 hour.
• Pro Tip: Position enclosure facing rear or downward for enhanced cabin loading and deeper perceived bass output.
