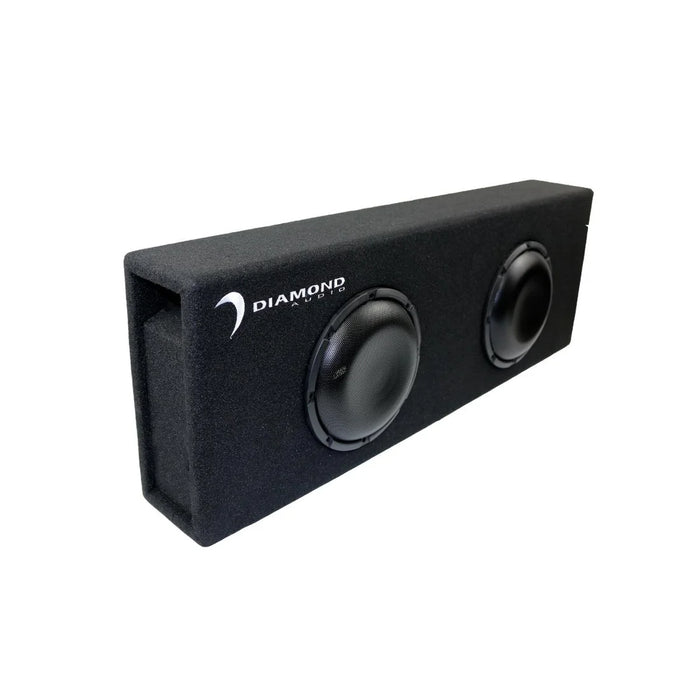

Diamond - DESMB10D - 800W RMS, 1600W MAX 10" Dual Vented Subwoofer

Specifications
Type: Dual Subwoofer Enclosure (Slot-Vented)
Series: Diamond Audio DES Microbox Series
Driver Configuration: Dual 10-inch (254mm) Subwoofers
Enclosure Type: Dual Slot-Vented (Ported) MDF Construction
Power Handling (RMS): 800W
Power Handling (Peak): 1600W
Nominal Impedance: 2Ω (Parallel Wired Configuration)
Frequency Response: 25Hz – 250Hz
Sensitivity (1W/1m): 87dB
Enclosure Tuning Frequency: 34Hz
Cone Material: Non-Pressed Paper with Reinforced Fiber Layer
Surround: High-Roll Butyl Rubber
Voice Coil Diameter: 2.5-inch (63.5mm) High-Temperature Copper
Voice Coil Former: Black Anodized Aluminum
Magnet Structure: High-Energy Ferrite Motor Assembly
Cooling System: Dual Vented Pole Pieces with Perimeter Airflow
Terminal Type: Heavy-Duty Spring-Loaded Nickel-Plated Binding Posts
Enclosure Material: ¾" MDF with Internal Bracing and Dual Chamber Design
Finish: Black Automotive Carpet with Diamond Audio Logo Badge
Grille: Included – Protective Steel Mesh
Dimensions (L×W×H): 33.0" × 13.0" × 14.0" (838 × 330 × 356mm)
Weight: 54 lbs
Warranty: 1-Year Manufacturer Warranty

Performance Specs
• Dual 10-inch slot-vented enclosure engineered for high-output, deep bass performance.
• Tuned for powerful, accurate response ideal for daily driving or show systems.
• Dual-chamber vented design increases output efficiency and thermal control.
• Matched subwoofers deliver tight, impactful low-end reproduction with reduced distortion.
• Built to handle high RMS power while maintaining musical accuracy.

Key Features
• Dual Pre-Loaded 10" Subwoofers – Provides balanced, high-output bass.
• Slot-Vented Design – Enhances airflow for louder, cleaner low frequencies.
• Reinforced Paper Cones – Lightweight yet rigid for accurate bass control.
• Butyl Rubber Surrounds – Maintains precise excursion and durability under load.
• Dual Chamber Enclosure – Optimizes output and heat dissipation for both drivers.
• Heavy-Duty MDF Build – Precision-tuned for strength and acoustic stability.
• Diamond Audio Engineering – Perfectly matched driver/enclosure system for peak performance.

Performance Integration Notes
• Ideal Pairing: Diamond DES or HX Series Amplifiers rated 800–1000W RMS @ 2Ω.
• System Compatibility: Car, Truck, or SUV High-Output Audio Systems.
• Recommended Use: Dual subwoofer enclosure for deep, high-impact bass.
• Installation Location: Cargo area or trunk space with adequate ventilation.
• Installation Time: Approx. 45–60 minutes.
• Pro Tip: Angle the enclosure toward the rear boundary (trunk wall) for enhanced low-end reinforcement and improved port efficiency.
