Specifications

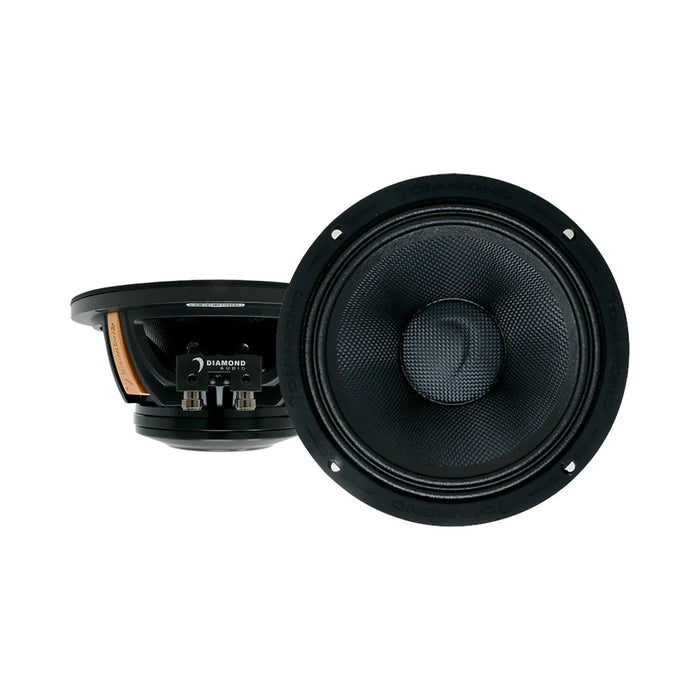

Type: High-Output Pro Midrange Speaker
Series: Diamond Audio Motorsport MS NEO Series
Speaker Size: 6.5" (165 mm)
Configuration: Full-Range Midrange Driver (Single Cone)
Power Handling (RMS): 300 W
Power Handling (Peak): 600 W
Nominal Impedance: 4 Ω
Sensitivity (1W/1m): 97 dB
Frequency Response: 100 Hz – 8 kHz
Voice Coil Diameter: 1.75" (44 mm)
Voice Coil Material: Copper-Clad Aluminum Wire (CCAW)
Voice Coil Former: High-Temperature Kapton®
Cone Material: Non-Pressed Paper Cone Reinforced with Damping Resin
Surround Material: Accordion Cloth Surround
Basket: Heavy-Duty Cast Aluminum Frame
Magnet Type: Neodymium Motor Structure (Compact, High-Energy Design)
Cooling System: Vented Pole Piece with Rear Heat Dissipation Ports
Terminals: Nickel-Plated Push Terminals (8 AWG Compatible)
Mounting Depth: 2.9" (74 mm)
Mounting Cutout Diameter: 5.6" (142 mm)
Overall Diameter: 6.8" (173 mm)
Weight: 3.8 lbs (Each)
Weather Resistance: Water-Resistant Cone & UV-Stable Surround
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Engineered for high-output midrange clarity in motorcycles, UTVs, and open-air systems.
• Compact neodymium motor dramatically reduces weight while improving power efficiency.
• Delivers aggressive midbass punch and crystal-clear vocals with minimal distortion.
• Designed for long throw and projection in outdoor or competition-level setups.
• Ideal for combining with compression horns or bullet tweeters for full-spectrum systems.
Key Features
• Lightweight Neodymium Motor – Provides strong magnetic control with reduced mass.
• 300 W RMS Power Handling – Supports powerful, dynamic output under continuous load.
• Non-Pressed Paper Cone – Produces smooth, natural tone with tight midrange accuracy.
• Accordion Cloth Surround – Ensures linear movement and exceptional transient response.
• High-Temp Voice Coil – Withstands sustained SPL conditions without thermal fatigue.
• Cast Aluminum Basket – Rigid and vibration-resistant for long-term reliability.
• High Sensitivity (97 dB) – Delivers loud output with minimal amplifier power.
• Diamond Audio Motorsport Tuning – Tailored for extreme clarity in open environments.
Performance Integration Notes
• Ideal Pairing: Amplifier rated 250–350 W RMS @ 4 Ω (Diamond DES400.2D, MICRO84U, or HXM1100.6D recommended).
• System Compatibility: Perfect for motorcycle fairings, lid enclosures, and UTV pods.
• Recommended Use: Midrange driver in multi-way or competition sound systems.
• Installation Time: Approx. 1 hour per pair.
• Pro Tip: Use a high-pass filter set between 100–120 Hz to protect cone integrity and maximize output efficiency.
