Specifications

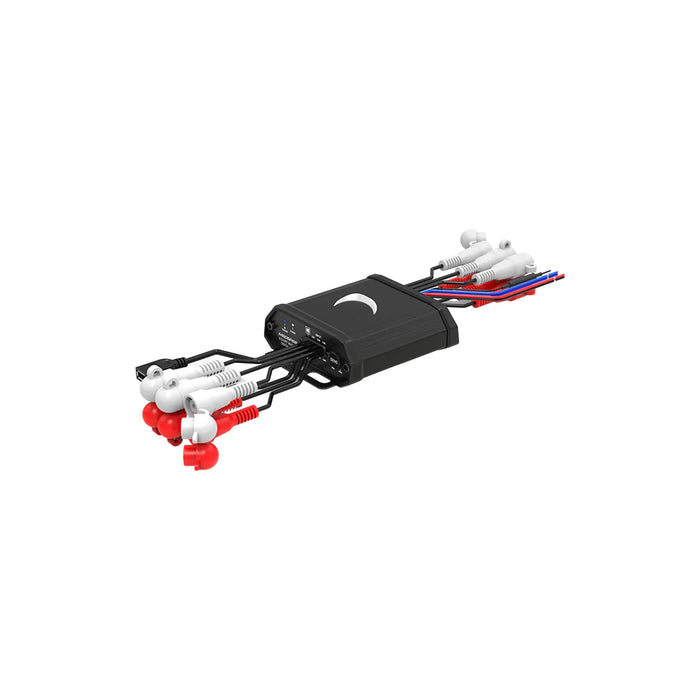

Type: 6-Channel Digital Signal Processor (DSP)
Series: Diamond Audio Motorsport / Marine Series
Inputs: 6 (RCA Low-Level or Speaker-Level with Auto-Sense)
Outputs: 6 RCA Preamp Channels
Processor Type: 32-Bit Floating Point DSP
Signal Conversion: 24-Bit A/D and D/A Converters
Sampling Rate: 96 kHz
Frequency Response: 20 Hz – 20 kHz (±0.2 dB)
Signal-to-Noise Ratio: >110 dB
THD (Total Harmonic Distortion): <0.01%
Input Sensitivity (Low-Level): 0.2 V – 8.0 V
Input Sensitivity (High-Level): 1.0 V – 20 V
Crossover Type: Fully Variable High-Pass, Low-Pass, and Band-Pass (per channel)
Crossover Slopes: 6 / 12 / 18 / 24 / 36 / 48 dB per octave
Parametric EQ: 31-Band (Adjustable per Input and Output Channel)
Time Alignment: 0.02 ms Steps (Per Channel, Fully Adjustable)
Phase Control: 0° / 180° Switchable or Variable (per channel)
Bass Enhancement: Optional Subsonic and Bass EQ Filters
Input Summing: Yes – Analog and Digital Source Blending Supported
Independent Gain Control: Per Channel Input and Output
Bluetooth Control: Built-In BLE Module with App Tuning Interface (iOS / Android)
Operating Voltage: 9 V – 16 V DC
Fuse Rating: 15 A (Mini Blade)
Construction: Marine-Grade Conformal Coated PCB
Enclosure Material: CNC-Machined Aluminum with Sealed End Caps
Weather Resistance: IP67 Certified (Fully Waterproof and Dustproof)
Cooling: Passive Aluminum Chassis Dissipation
Dimensions (L×W×H): 7.9" × 4.1" × 1.4" (200 × 104 × 36 mm)
Weight: 2.4 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Advanced 6-input, 6-output DSP built for marine, motorcycle, and powersport environments.
• Fully waterproof IP67 construction allows mounting in exposed areas without enclosures.
• Delivers precision tuning, time alignment, and crossover control for full system optimization.
• Bluetooth app-based interface eliminates the need for a PC or laptop during setup.
• Designed to integrate factory or aftermarket sources into high-end audio systems.
Key Features
• 32-Bit DSP Core – Provides ultra-precise signal processing and minimal latency.
• IP67 Waterproof Housing – Fully sealed for extreme outdoor installations.
• Bluetooth Tuning App – Intuitive real-time control via smartphone or tablet.
• Fully Adjustable Crossovers – Configure each channel for exact acoustic targets.
• 31-Band Parametric EQ – Tune every output independently for precision staging.
• Time Alignment – Achieve perfect stereo imaging and rider-focused sound.
• Input Summing – Combine factory speaker-level outputs for seamless OEM integration.
• Diamond Audio Motorsport Design – Tuned for power, reliability, and clarity on the move.
Performance Integration Notes
• Ideal Pairing: Diamond MICRO84U, MICRO81U, or DXM600.2D amplifiers.
• System Compatibility: Marine, Harley-Davidson®, UTV, and high-performance car audio systems.
• Recommended Use: Central processing hub for multi-amp or multi-zone setups.
• Installation Time: Approx. 1–1.5 hours.
• Pro Tip: Mount DSP away from high-current wiring and ground loops; use shielded RCA cables and ensure app firmware is updated before final tuning.
