Specifications

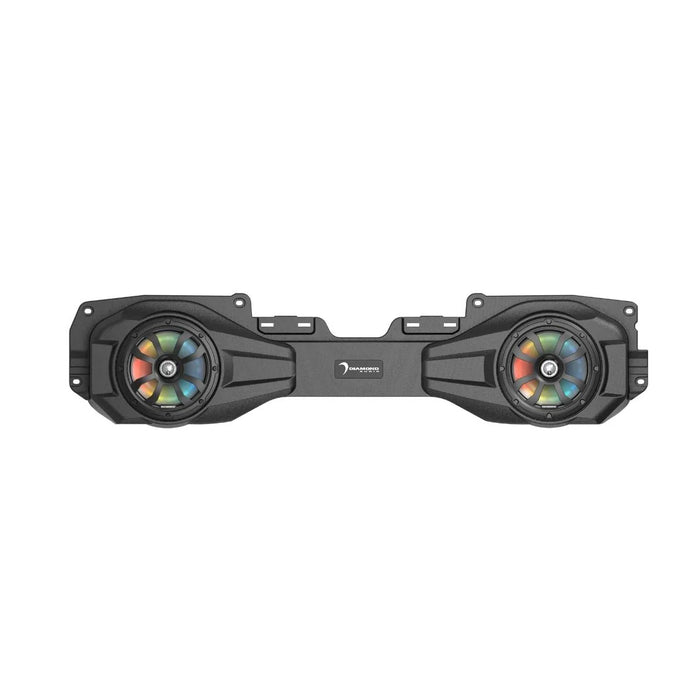

Type: Vehicle-Specific 2-Way Coaxial Sound Bar Speaker Kit
Series: Diamond Audio VSP Series – Jeep Performance Line
Vehicle Compatibility:
• 2018+ Jeep Wrangler JL (2-Door & 4-Door)
• 2019+ Jeep Gladiator JT (All Trims)
System Configuration: Dual 8" 2-Way Coaxial Speakers (Integrated in Custom Sound Bar Housing)
Power Handling (RMS): 150 W per speaker / 300 W total
Power Handling (Peak): 300 W per speaker / 600 W total
Impedance: 4 Ω
Sensitivity (1W/1m): 92 dB
Frequency Response: 45 Hz – 20 kHz
Tweeter Type: 1" Titanium Dome Tweeter (Integrated)
Woofer Cone Material: Injection-Molded Polypropylene
Surround Material: Butyl Rubber Surround
Voice Coil: 1.5-inch High-Temperature Aluminum Former
Magnet Type: Neodymium Compact Motor Structure
Enclosure Material: High-Impact HDPE (High-Density Polyethylene)
Finish: Textured Matte Black UV-Resistant Coating
Grilles: Included – Steel Mesh, Jeep-Specific Design
Wiring: Plug-and-Play Harness with Weatherproof Connectors
Weather Resistance: IP65 (Water, Salt, and UV Resistant)
LED Option: Compatible with Add-On RGB Accent Lighting
Weight: 14.8 lbs (Complete Assembly)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Purpose-built overhead sound bar designed to replace factory Jeep JL/JT unit.
• Dual 8" coaxial speakers deliver superior midbass, full-range clarity, and wide sound coverage.
• Compact neodymium motor system provides strong output with reduced weight.
• Rugged marine-grade construction withstands open-air and off-road environments.
• Delivers high SPL performance while maintaining clean, distortion-free sound.
Key Features
• Jeep-Specific Overhead Design – Direct-fit assembly for Wrangler JL and Gladiator JT.
• Dual 8" Coaxial Speakers – Produces wide soundstage and deep midbass.
• High-Output Titanium Tweeters – Crisp highs ideal for open cabins.
• Plug-and-Play Wiring – No cutting or splicing required for installation.
• Marine-Grade Build – Fully weatherproof for all-terrain use.
• Lightweight HDPE Enclosure – Strong, durable, and vibration-resistant.
• Optional RGB Lighting – Prewired for accent LED integration.
• Diamond Audio Engineering – Tuned specifically for Jeep acoustics.
Performance Integration Notes
• Ideal Pairing: Amplifier rated 150 W RMS per channel @ 4 Ω (e.g., Diamond DXM800.4D or HXM1100.6D).
• System Compatibility: Factory or aftermarket head units in JL/JT vehicles.
• Recommended Use: Overhead or rear-stage upgrade for premium full-range output.
• Installation Time: Approx. 1.5–2 hours (complete unit replacement).
• Pro Tip: Use sound-deadening material under the sound bar mount to tighten midbass and reduce resonance at highway speeds.
