Specifications

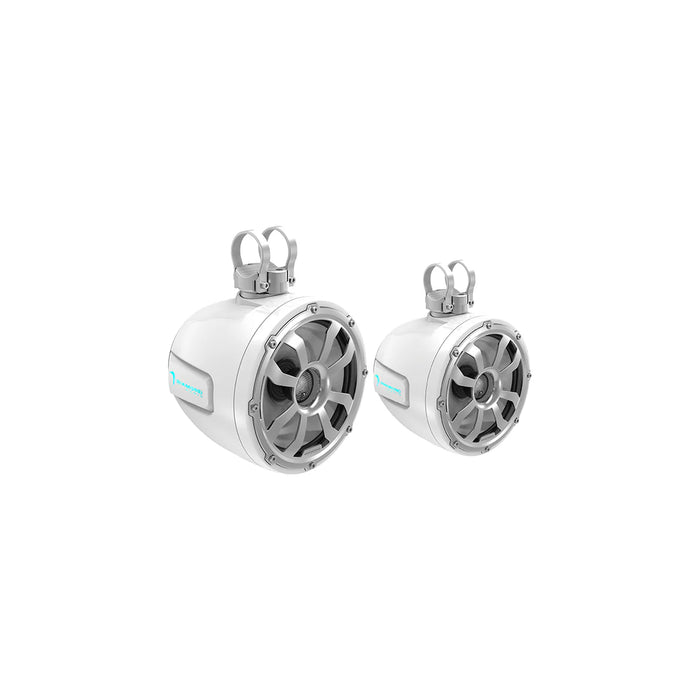

Type: 2-Way Tower Speaker Pod
Series: Diamond Audio Motorsport / Marine Series
Speaker Size: 6.5-inch (165 mm)
Power Handling (RMS): 150 W each / 300 W per pair
Power Handling (Peak): 300 W each / 600 W per pair
Impedance: 4 Ω
Sensitivity (1W/1m): 90 dB
Frequency Response: 60 Hz – 20 kHz
Tweeter Type: 1-inch Titanium Dome Tweeter
Woofer Cone: Kevlar Fiber Reinforced Cone
Surround: UV-Treated Rubber Surround
Voice Coil: 1.5-inch High-Temperature Copper
Magnet Type: Neodymium High-Flux Motor Structure
Enclosure: Sealed, Injection-Molded ASA High-Impact Thermoplastic Housing
Finish: Gloss White, UV-Resistant Coating
Grille Type: Stainless Steel Marine-Grade Mesh Grilles
Mounting Options: Universal Pipe or Flat-Surface Mounting
Clamp Range: 1.5" – 2.5" Tubing (varies by kit)
Waterproof Rating: IP65 (Water, Salt, and UV Resistant)
Dimensions: 8.0" (H) × 7.2" (W) × 9.5" (D)
Weight: 7.8 lbs per pod
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Marine-ready tower speakers engineered for open-air clarity and durability.
• Titanium dome tweeter delivers crisp, high-frequency projection with precision.
• Kevlar cone provides clean, powerful midbass with excellent transient response.
• Sealed housing and UV-stable finish prevent corrosion and discoloration.
• Built for high-volume outdoor use in marine and motorsport applications.
Key Features
• Marine-Grade IP65 Design – Weatherproof housing resists moisture, salt, and UV damage.
• Titanium Dome Tweeter – Produces bright and detailed highs for open environments.
• Kevlar-Reinforced Woofer – Ensures durability and balanced midrange response.
• Gloss White Finish – Matches OEM marine aesthetics and resists sun fading.
• Universal Mounting System – Compatible with tower, roll bar, or flat-surface installs.
• Stainless Steel Hardware – Corrosion-resistant for long-term reliability.
• Diamond Audio Build – Premium materials and craftsmanship for marine environments.
Performance Integration Notes
• Ideal Pairing: Diamond DXM800.4D or HXM800.4D Amplifier (150 W RMS @ 4 Ω).
• System Compatibility: Boats, UTVs, off-road vehicles, and marine tower systems.
• Recommended Use: Tower or roll-bar mount for open-air sound projection.
• Installation Time: Approx. 60–90 minutes (pair).
• Pro Tip: For maximum longevity, apply marine-grade sealant on mounting hardware and connectors to prevent corrosion and water intrusion.
