Specifications

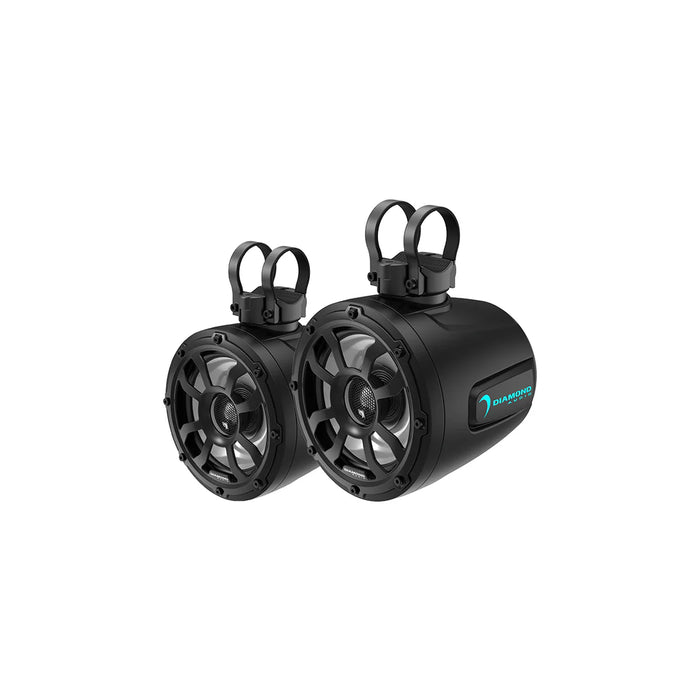

Type: 2-Way Tower Speaker Pod
Series: Diamond Audio Motorsport / Marine Series
Speaker Size: 6.5-inch (165 mm)
Power Handling (RMS): 150 W each / 300 W per pair
Power Handling (Peak): 300 W each / 600 W per pair
Impedance: 4 Ω
Sensitivity (1W/1m): 90 dB
Frequency Response: 60 Hz – 20 kHz
Tweeter Type: 1-inch Titanium Dome Tweeter
Woofer Cone: Kevlar Fiber Reinforced Cone
Surround: UV-Treated Rubber Surround
Voice Coil: 1.5-inch High-Temperature Copper
Magnet Type: Neodymium High-Flux Motor Structure
Enclosure: Sealed, Injection-Molded ASA High-Impact Thermoplastic Housing
Finish: Gloss Black, UV-Resistant Coating
Grille Type: Stainless Steel Marine-Grade Mesh Grilles
Mounting Options: Universal Pipe or Flat-Surface Mounting
Clamp Range: 1.5" – 2.5" Tubing (varies by kit)
Waterproof Rating: IP65 (Water, Salt, and UV Resistant)
Dimensions: 8.0" (H) × 7.2" (W) × 9.5" (D)
Weight: 7.8 lbs per pod
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Delivers clean, full-range sound in open-air marine and powersport environments.
• Titanium tweeter provides crisp, distortion-free highs even at high volumes.
• Kevlar woofer cone ensures durable, natural-sounding midbass response.
• Fully sealed housing prevents moisture and debris intrusion.
• Designed for high-output use in UTV, boat, or tower installations.
Key Features
• Weatherproof Design – IP65 marine-grade sealed housing for outdoor durability.
• Titanium Dome Tweeter – Produces bright, high-frequency detail.
• Kevlar-Reinforced Woofer – Lightweight yet rigid cone for accurate midrange.
• Versatile Mounting – Works on tubular towers, roll bars, or flat surfaces.
• UV-Stable Finish – Resists fading and cracking in sunlight exposure.
• High-Efficiency Engineering – Optimized for open-air listening environments.
• Diamond Audio Build Quality – Marine-rated reliability and aesthetic appeal.
Performance Integration Notes
• Ideal Pairing: Diamond DXM800.4D or HXM800.4D Amplifier (150 W RMS @ 4 Ω).
• System Compatibility: UTVs, marine towers, wakeboard boats, off-road vehicles, or roll-bar installs.
• Recommended Use: Rear or tower-mounted high-output full-range speakers.
• Installation Time: Approx. 60–90 minutes (pair).
• Pro Tip: Use dielectric grease on connectors and route wiring through sealed conduit to ensure long-term weatherproof performance.
