Specifications

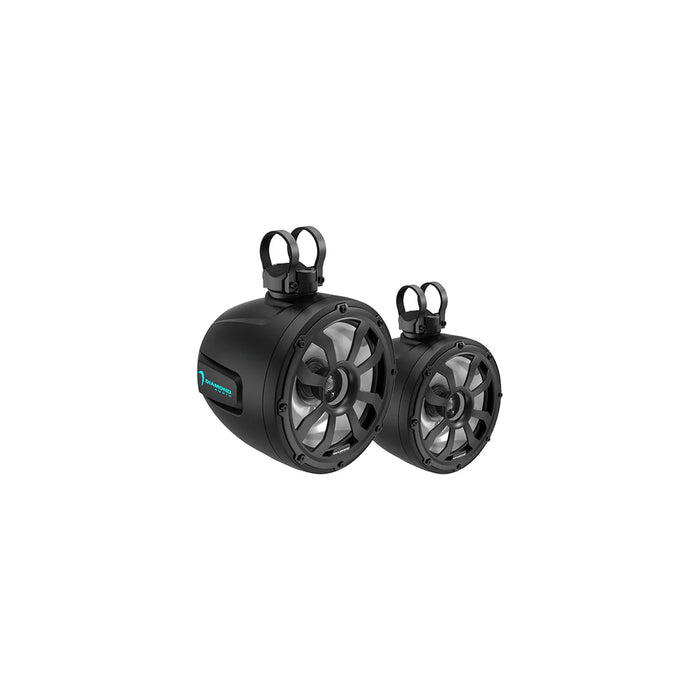

Type: 2-Way Marine / Motorsport Tower Speaker Pod
Series: Diamond Audio Motorsport POD Series
Speaker Size: 10" (254 mm) Woofer with Integrated Tweeter
Configuration: 2-Way Coaxial (Midbass + High-Frequency Compression Tweeter)
Power Handling (RMS): 200 W
Power Handling (Peak): 400 W
Nominal Impedance: 4 Ω
Sensitivity (1W/1m): 93 dB
Frequency Response: 55 Hz – 20 kHz
Woofer Cone Material: Injection-Molded Polypropylene (IMPP)
Surround Material: UV-Treated Rubber Surround
Tweeter Type: 25 mm (1") Titanium Dome Tweeter (Integrated Compression Driver)
Crossover Type: Built-In 12 dB/Octave High-Pass Network
Voice Coil Diameter: 1.5" (38 mm)
Voice Coil Former: High-Temperature Kapton® Former
Basket: Reinforced Polymer Composite Frame
Magnet Structure: High-Energy Ferrite Motor
Grill: Included – Black Powder-Coated Marine-Grade Aluminum Mesh
Cabinet Material: High-Density Molded Polymer (Weather-Sealed)
Finish: Gloss Black UV-Resistant Coating
Mounting Type: Universal Clamp Mounting System
Mounting Hardware: 360° Adjustable Aluminum Clamps (Fits 1.75"–3.0" Bars)
Connector Type: Waterproof Quick-Disconnect Terminal
Waterproof Rating: IP65 (Water and UV Resistant)
Weight: 15.2 lbs (Pair)
Dimensions (L×W×H): 12.8" × 10.5" × 9.8" (325 × 267 × 249 mm)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Designed for marine, UTV, and outdoor audio systems demanding wide projection and clarity.
• Integrated compression tweeter provides crisp highs that cut through wind and engine noise.
• Large 10" driver delivers deep midbass and strong full-range performance.
• High-efficiency Class D amplifier compatible for maximum SPL output.
• Durable housing withstands sun, salt, and water exposure in extreme environments.
Key Features
• Marine-Grade Construction – Fully sealed against water, UV rays, and corrosion.
• 10" Coaxial Design – Delivers bold sound with strong bass and detailed highs.
• Titanium Dome Tweeter – Produces clear, accurate high-frequency projection.
• Rotating Aluminum Clamp System – Enables versatile mounting on towers and bars.
• High Sensitivity – Efficient power conversion for loud, dynamic sound.
• Gloss Black Finish – Sleek, durable appearance that complements any setup.
• Diamond Audio Build – Engineered for rugged outdoor and marine use.
Performance Integration Notes
• Ideal Pairing: Diamond DXM800.4D, MICRO84U, or DES400.4D amplifiers.
• System Compatibility: Marine, wake tower, UTV, and off-road sound systems.
• Recommended Use: Full-range or tower-mounted speaker for outdoor or marine entertainment.
• Installation Time: Approx. 45–60 minutes.
• Pro Tip: Mount at ear level for optimal imaging and aim the tweeters slightly inward for focused stereo staging. Seal all connections with dielectric grease to prevent corrosion.
