Specifications

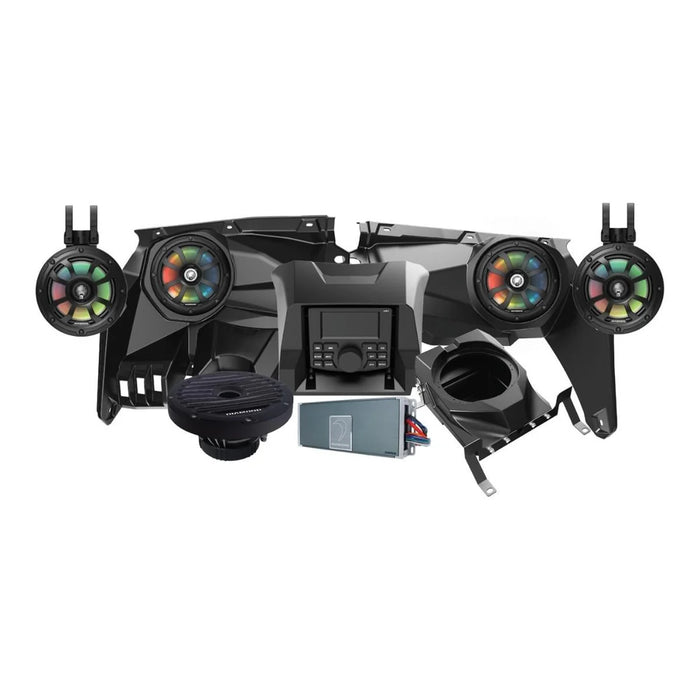

Type: Complete Audio Upgrade Kit (Dash Head Unit + 6-Channel Amplifier + Multiple Speakers + Subwoofer + Pods)
Series: Diamond Audio MS / Motorsport Series
Included Components:
-
Head Unit: DMR3
-
Amplifier: DXM1000.6D (6-Channel Full-Range Class D)
-
Main Speakers: HXM65F4 Coaxial 6.5″ (pair)
-
Pod Speakers: POD65F4B 6.5″ Pod Speakers (pair)
-
Subwoofer: MS104SL 10″ Shallow-Mount Subwoofer
-
Enclosures and Harness: Custom fit for intended vehicle
Power Handling & Output:
-
HXM65F4: 125 W RMS / 250 W Peak each
-
Pod65F4B: 200 W RMS / 400 W Peak each
-
MS104SL: 200 W RMS / 400 W Peak (4 Ω)
Amplifier Output:
• 170 W × 6 @ 2 Ω
• 110 W × 6 @ 4 Ω
• 340 W × 3 Bridged @ 4 Ω
Head Unit Output: 25 W × 4 RMS / 50 W × 4 Max
Frequency Range (System): Approx. 20 Hz – 18 kHz (depending on speaker/sub)
Impedance: 4 Ω (speaker pairs)
Water/Weather Rating: IP65 Marine Grade for key components
Installation Fitment: Direct-fit Enclosures and Dash Kit; no major cutting required
Weight: Approx. 50 lbs (kit as shipped)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• All-in-one modular system built for off-road/UTV/dash installation environments.
• High-output performance with efficient Class D amplification for sustained use in harsh conditions.
• Multiple speaker formats (flush main, tower pods, sub-woofer) give full-range coverage and strong bass extension.
• Marine-grade build quality ensures longevity under vibration, UV exposure, and moisture.
• Plug-and-play harness and enclosures streamline install and maintain clean appearance.
Key Features
• Complete System – Dash head unit + full amplifier + speaker array + subwoofer included.
• High Efficiency – Speaker and amp ratings optimized for maximum output with minimal distortion.
• Weather-Proofing – Designed for open-air and motorsport environments.
• Flexible Use – Ideal for UTVs, side-by-sides, recreational vehicles, or other vehicle audio systems.
• Integration-Ready – Harnesses and enclosures designed to match factory fitment for specific platforms.
• Diamond Audio Engineering – Purpose-built for high performance and reliability.
Performance Integration Notes
• Ideal Pairing: Install in appropriate vehicle with matching mounting dimensions and electrical system capable of supporting ~1 kW+ output.
• System Compatibility: Off-road UTV/ATV, Powersport, Marine, or open-cab vehicle audio setups.
• Recommended Use: Turnkey installation for dashboard/ride-console audio upgrade with full range coverage and sub-bass reinforcement.
• Installation Time: Approx. 3–4 hours for full kit (including harness routing, speaker/sub install, amplifier placement).
• Pro Tip: Use high-quality power and ground wiring, securely mount amplifier with airflow or heat-sinking, and calibrate gains/crossovers via head unit DSP for best results.
