Specifications

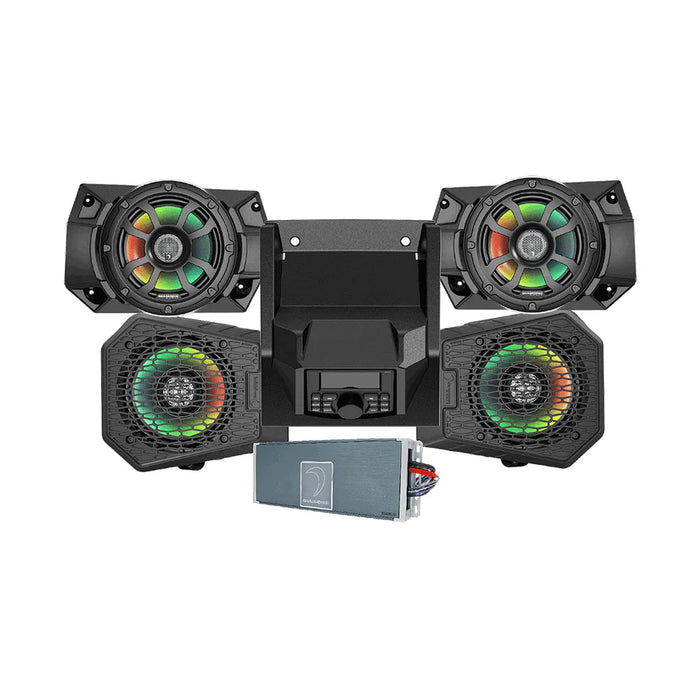

Type: Complete Plug-and-Play Audio System
Series: Diamond Audio Motorsport Series
Vehicle Application: Polaris Ranger (All Models / Trim Levels with Factory Roof or Open Cab)
System Configuration: 4-Speaker + Subwoofer + Amplifier Package
Amplifier Model: DXM800.4D – 4-Channel Marine Full-Range Class D Amplifier
Speaker Model (Front & Rear): HXM65F4 – 6.5" 4Ω Marine Coaxial Speakers
Subwoofer Model: MS104SL – 10" Shallow-Mount Marine Subwoofer (4Ω)
Amplifier Power Output (RMS):
• 200W x 4 @ 2Ω
• 150W x 4 @ 4Ω
• 400W x 2 (Bridged 4Ω)
Speaker Power Handling (RMS): 150W per speaker
Speaker Power Handling (Peak): 300W per speaker
Subwoofer Power Handling (RMS): 300W
Subwoofer Power Handling (Peak): 600W
Frequency Response: 20Hz – 20kHz (System-Wide)
Amplifier Efficiency: >85% Class D Full-Range
Signal-to-Noise Ratio: >90dB
Crossover Type: Variable High-Pass/Low-Pass (50Hz – 500Hz, 12dB/Octave)
System Voltage: 12V DC (9V–16V Operating Range)
Harness Type: Pre-Wired Plug-and-Play with MSRGDA Integration Module
Fuse Rating: 2 × 25A Inline Fuses
Enclosure Type: Sealed Composite Subwoofer Enclosure
Material Construction: UV-Stabilized, Marine-Grade Polymer & Aluminum Components
Weatherproof Rating: IP65 (Waterproof / Dustproof)
Finish: Matte Black with Diamond Audio Logo Engraving
Mounting: Direct Bolt-On (No Cutting or Splicing Required)
Weight: Approx. 32 lbs (Complete System)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Turnkey 4-speaker + subwoofer sound system engineered for Polaris Ranger vehicles.
• Delivers crisp highs, strong midbass, and tight, controlled low-end in open-air environments.
• DXM800.4D amplifier provides dynamic full-range power with high efficiency.
• Marine-rated components ensure resistance to water, mud, vibration, and UV exposure.
• Pre-terminated harnesses and connectors allow fast, plug-and-play installation.
Key Features
• All-In-One Audio Upgrade – Includes amp, sub, speakers, enclosure, and wiring harness.
• Vehicle-Specific Fit – Designed to fit seamlessly in Polaris Ranger cabins and roofs.
• Weatherproof Components – IP65-certified for marine and off-road durability.
• High-Power Amplification – DXM800.4D drives all channels cleanly and efficiently.
• Custom Subwoofer Enclosure – Tuned for deep, accurate bass under seat or cargo area.
• Premium Speaker Design – Diamond’s HXM65F4 delivers wide dispersion and rich clarity.
• Plug-and-Play Harness – Simplifies install; no splicing or modifications required.
• Expandable System – Supports additional amplifiers or source units through RCA passthrough.
Performance Integration Notes
• Ideal Pairing: Diamond Bluetooth Controller (BTR16 or BTR2) for source control.
• System Compatibility: Polaris Ranger (Crew Cab, 2-Seat, XP, High Lifter, and NorthStar models).
• Recommended Mounting Locations:
– HXM65F4: Roof corners or door panels
– MS104SL: Under seat or cargo area enclosure
– DXM800.4D: Under dash or rear bulkhead mount
• Installation Time: Approx. 2–3 hours (complete system).
• Pro Tip: Use dielectric grease on all quick-connect terminals and route harnesses away from steering and suspension linkages for long-term reliability.
