Specifications

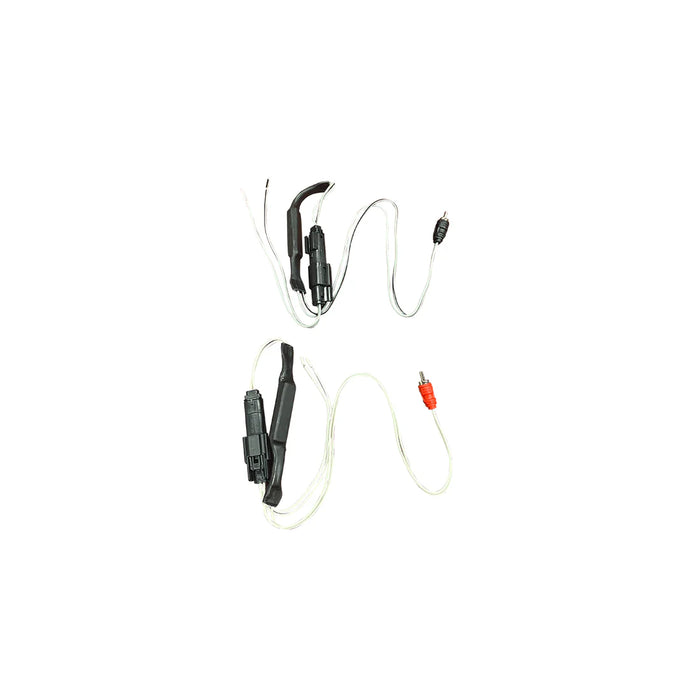

Type: 2-Channel Line Output RCA Harness
Series: Diamond Audio Motorsport Harley-Davidson® Integration
Function: Provides clean, low-level RCA outputs for aftermarket amplifier integration
Channels: 2 (Left and Right)
Compatibility: 2014–2023 Harley-Davidson® Touring Models
Input Type: Factory Speaker-Level Signal
Output Type: Male RCA (Low-Level Signal)
Harness Construction: OEM-Style Plug-and-Play Connectors
Wire Gauge: 18 AWG Oxygen-Free Copper Signal Wire
Signal Isolation: Twisted-Pair Design for Noise Rejection
Shielding: Double-Layer Braided and Foil Shielded RCA Leads
Outer Jacket: Flexible PVC, Heat and Chemical Resistant
Length: 18 inches (Typical OEM Extension Length)
Color Code: Industry Standard Left/Right RCA Markings
Connectors: Nickel-Plated RCA Plugs and OEM Harness Ends
Temperature Rating: -40°F to 185°F (-40°C to 85°C)
Water Resistance: Moisture and UV Resistant (Automotive Grade)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Converts factory Harley-Davidson® audio signal to clean RCA output for amplifier input.
• Maintains factory wiring integrity with no splicing, cutting, or soldering required.
• Delivers a low-noise, high-quality signal path for superior amplifier performance.
• Designed for quick integration into Diamond Audio and other aftermarket amp systems.
Key Features
• Plug-and-Play OEM Fitment – Direct connection to factory audio harness for easy installation.
• 2-Channel RCA Output – Provides front or rear channel feed for aftermarket amplifiers.
• Noise-Free Performance – Twisted-pair and shielded RCA construction reduces interference.
• Durable Build – Automotive-grade insulation and waterproof connectors for long life.
• Perfect Compatibility – Matches seamlessly with Diamond’s HXM and DES amplifier series.
• Compact Design – Clean routing for saddlebag, fairing, or under-seat installations.
• Quick Install – No wire cutting, programming, or adapters needed.
Performance Integration Notes
• Ideal Pairing: Diamond MSLOC2 Line Converter or direct amp RCA input (2CH).
• System Compatibility: 2014–2023 Harley-Davidson® Touring Models (Street Glide®, Road Glide®, Electra Glide®).
• Recommended Use: When bypassing the factory amplifier or adding an aftermarket DSP/amp.
• Installation Location: Fairing audio harness connection point.
• Installation Time: Approx. 15–30 minutes.
• Pro Tip: Secure harness ends with dielectric grease to prevent corrosion and ensure long-term reliability.
