Specifications

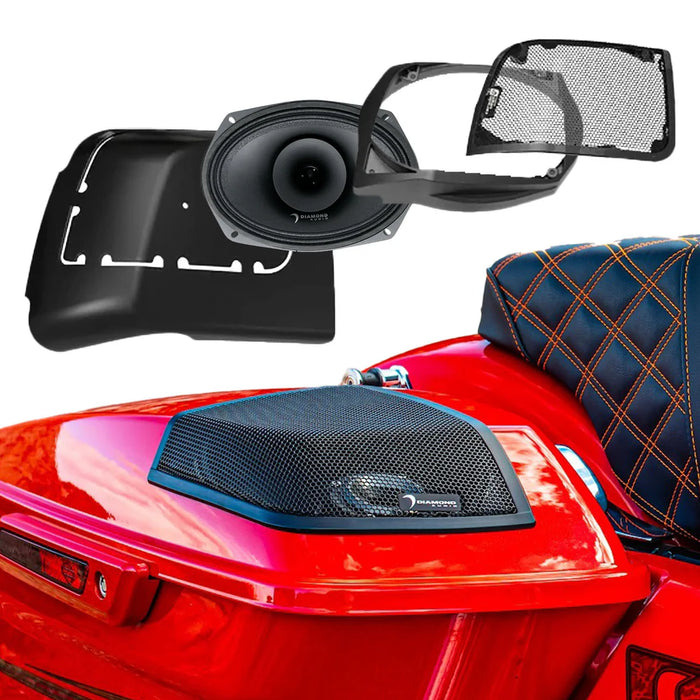

Type: Complete Harley-Davidson® Saddlebag Lid Speaker Kit
Series: Diamond Audio Motorsport MP Series
Speaker Model: MP692 – 6"x9" High-Output Coaxial Midrange Speakers
Speaker Power Handling (RMS): 200W
Speaker Power Handling (Peak): 400W
Impedance: 4Ω
Sensitivity (1W/1m): 94dB
Frequency Response: 60Hz – 18kHz
Woofer Cone: Non-Pressed Paper Cone with Resin Treatment
Surround: Cloth Accordion Edge
Tweeter Type: 1-inch (25mm) Titanium Dome Compression Horn
Magnet Type: Ferrite Motor Structure
Crossover: Integrated 12dB/Octave High-Pass Network
Enclosure Type: Pre-Assembled, Precision-Molded Saddlebag Lids
Material: High-Impact ABS Plastic (Paint-Ready Black Finish)
Grill Style: Diamond Audio Marine-Grade Flush-Mount Grilles (Black)
Speaker Mounting: Preloaded, Direct Bolt-In Fitment
Hardware: Includes Gaskets, Mounting Bolts, and Wiring Connectors
Water Resistance: IP65 (Water, Salt, and UV Resistant)
Compatibility: 2014–2023 Harley-Davidson® Touring Models
Mounting Depth (Speaker): 3.4" (86mm)
Total Weight: 17.5 lbs (Complete Kit)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Complete saddlebag lid kit with Diamond Audio MP692 high-output coaxial speakers pre-installed.
• Delivers powerful midbass response and crisp, dynamic highs for open-road clarity.
• Designed for full-range motorcycle audio systems operating at high SPL.
• Precision-molded lids provide factory fitment and premium paint-ready finish.
• Fully weatherproof and vibration-tested for motorcycle touring use.
Key Features
• Complete Lid Solution – Includes Diamond MP692 6"x9" speakers, grilles, and mounting accessories.
• High-Output Coaxial Design – Built for clarity and projection in open-air riding conditions.
• Marine-Grade IP65 Protection – Fully sealed and weather-resistant construction.
• Compression Horn Tweeters – Deliver articulate highs and high-efficiency projection.
• Paint-Ready ABS Lids – Smooth finish for OEM color matching or custom paintwork.
• Plug-and-Play Fitment – Designed for 2014–2023 Harley-Davidson® touring saddlebags.
• Diamond Audio Quality – Precision-built for power, clarity, and long-term reliability.
Performance Integration Notes
• Ideal Pairing: Diamond HXM800.4D, HXM1100.6D, or DES400.2D Amplifiers (125–200W RMS per channel).
• System Compatibility: Harley-Davidson® Touring models (Street Glide®, Road Glide®, Electra Glide®, Ultra Limited®).
• Recommended Use: Rear-stage or saddlebag-mounted speaker upgrade.
• Installation Location: Direct bolt-in replacement for factory lids.
• Installation Time: Approx. 1.5–2 hours.
• Pro Tip: Seal lid perimeter gaskets thoroughly to prevent moisture intrusion and maintain consistent low-frequency performance.
