Diamond Audio - DMDX69 - DIAMOND 2-WAY 6"X9" COCENTRIC SYSTEM

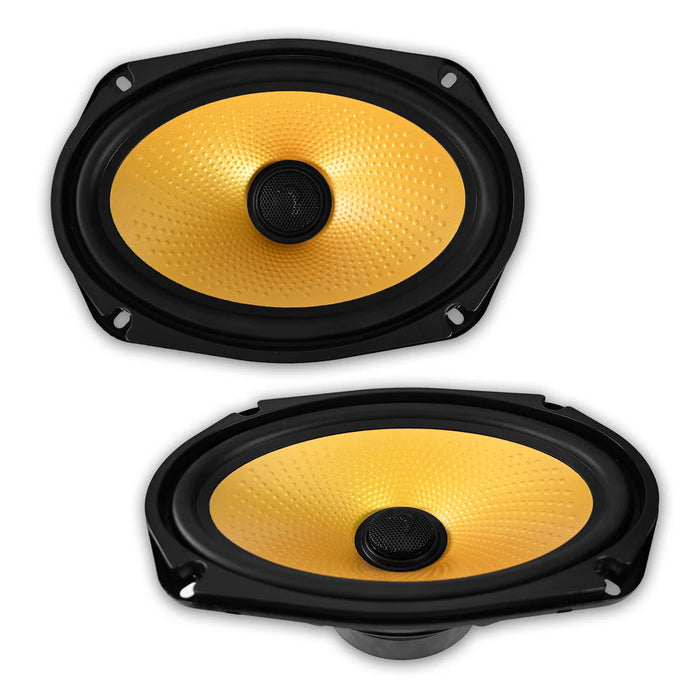

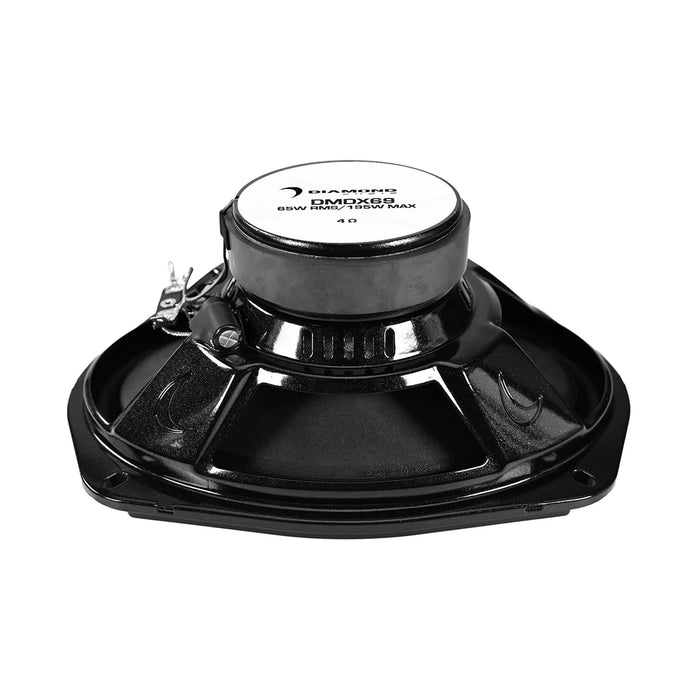

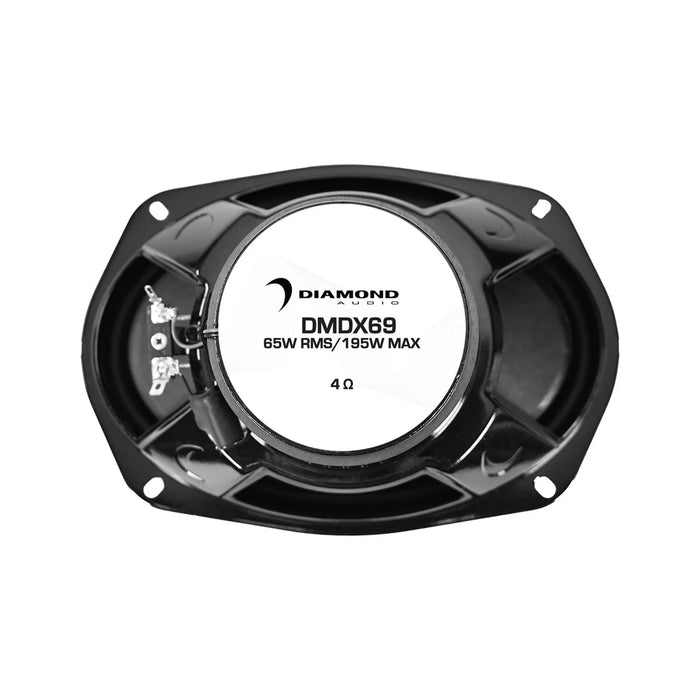

Diamond Audio DMDX69 – 6"x9" 2-Way Concentric Coaxial Speakers

Description
The DMDX69 6"x9" 2-Way Concentric Coaxial Speakers deliver powerful full-range performance with strong mid-bass impact and crisp high-frequency detail. Designed as a high-value upgrade over factory systems, the DMDX series combines output, clarity, and efficiency in a durable, easy-to-install package. Ideal for rear decks, doors, and full-range builds, the DMDX69 provides enhanced low-end presence, smooth midrange response, and clean highs—bringing energy and balance to any everyday audio system while maintaining Diamond Audio’s reputation for dependable sound performance.

Specifications
Speaker Size: 6"x9" (152x228mm)
Configuration: 2-Way Concentric Coaxial
Power Handling: 65W RMS / 195W MAX
Frequency Response: 50Hz – 20kHz
Sensitivity: 88dB (1W/1M)
Nominal Impedance: 4Ω
Free-Air Resonance (Fs): 68Hz
Mounting Depth: 3.17" (80.6mm)
Cut-Out Diameter: 8.68"x5.93" (220.5x150.5mm)
Overall Diameter: 9.29"x6.4" (236x162.6mm)
Overall Height: 3.54" (90mm)
