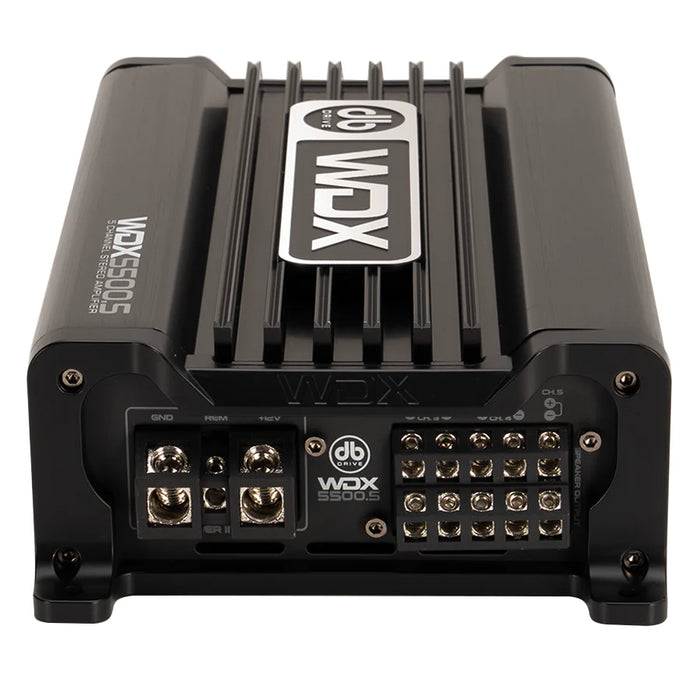

DB Drive - WDX5500.5 - 5500W 5 CHANNEL CLASS D AMPLIFIER

Name: DB Drive WDX5500.5 – WDX Series 5-Channel Class D Amplifier

Power Output (RMS):
• Front / Rear Channels: 4 × 200W @ 4 Ω
• Sub Channel: 500W @ 2 Ω

Frequency Response: 20 Hz – 22,000 Hz

Signal-to-Noise Ratio (S/N): < 105 dB

Input Sensitivity: 0.20 V – 6.00 V

Crossover / Filter Options:
• Independent modes for each channel (High-Pass / Low-Pass / Full)
• Variable High-Pass filters
• Variable Low-Pass filters
• Subsonic filter
• Bass equalization / boost control

Voltage Range: 12 V – 15 V

Features:
• Class D power topology
• Heat management and protective circuitry
• Direct-connect speaker outputs
• Remote level control included
• Support for heavy gauge power wiring

Physical Dimensions: 10.63″ × 5.50″ × 2.38″
