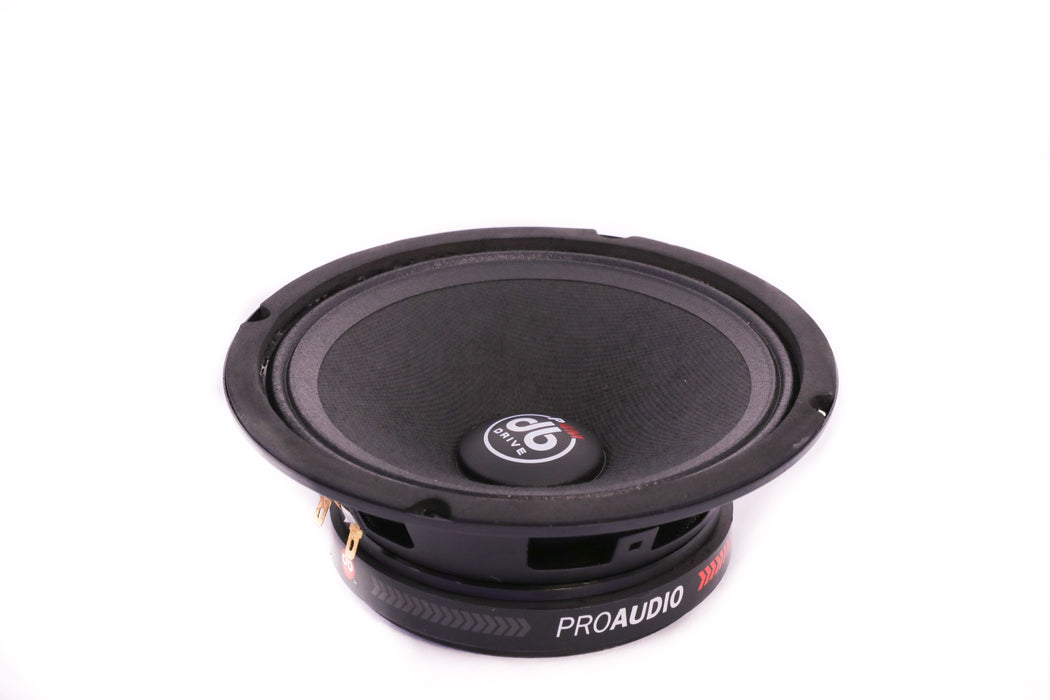

DB Drive - P4M 6C - 6.5" PRO AUDIO MID-RANGE W/GRILL - (SNG) (A17)

Name: DB Drive P4M 6C – 6.5″ Pro Audio Midrange (with grill)

Power Handling (RMS / Max): 150W RMS / 275W Max

Impedance: 4 Ω

Sensitivity: ~92.8 dB (1W / 1m)

Frequency Response: 115 Hz – 2,800 Hz

Thiele/Small & Related Parameters:
• Fs (Resonance): 160 Hz
• Qms: 9.00
• Qes: 0.85
• Qts: 0.78
• Vas: ~2.3 liters
• Re (DC Resistance): ~3.2 Ω

Voice Coil: 1.5″ (38 mm) high-temperature coil

Magnet / Motor: Barium ferrite magnet

Construction / Frame / Surround:
• Steel stamped basket
• Cloth-edge surround
• Shallow-mount design with included grill
