DB Drive - 12inch 400/700 WATTS DUAL 4 OHM SUBWOOFER

Specifications
Type: 12" Subwoofer – Dual 4 Ohm Voice Coil
Nominal Power Handling (RMS): 400 Watts
Max Power Handling (Peak): 700 Watts
Voice Coil Configuration: Dual 4 Ohm
Voice Coil Diameter: 2" High-Temperature Copper Wound
Cone Material: Non-pressed paper cone with reinforced fibers
Surround Material: High-roll foam surround
Basket: Stamped steel basket
Magnet Structure: Double-stack ferrite magnet
Spider: Progressive Nomex spider
Motor Venting: Center vented pole piece for heat dissipation
Frequency Response: 30 Hz – 1 kHz
Sensitivity: 88 dB

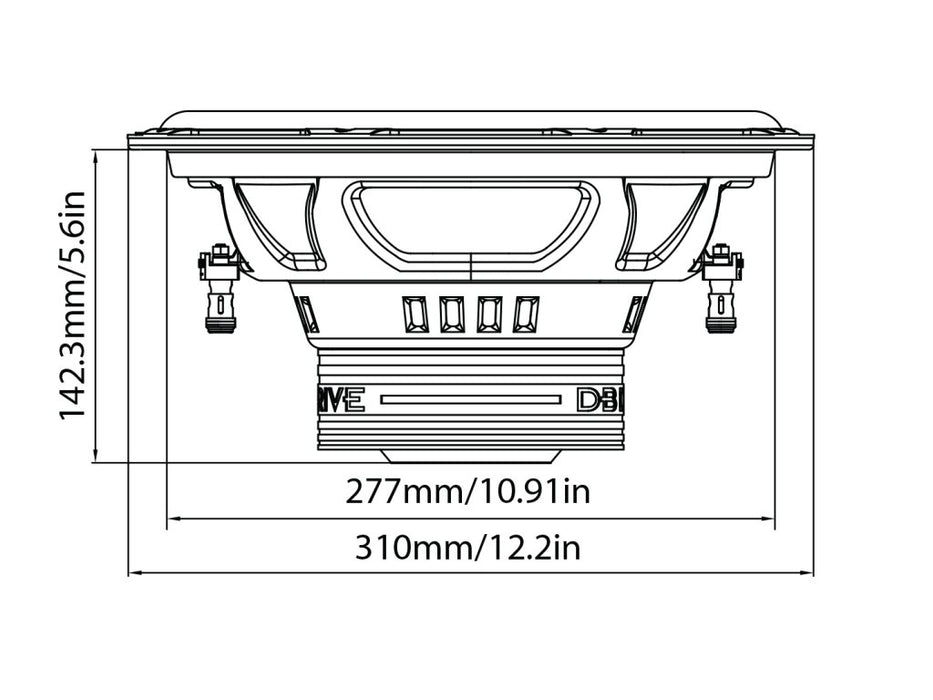

Mounting Depth: 5.5"
Cutout Diameter: 11.1"
Overall Diameter: 12.6"
Impedance: Dual 4 Ohm
Warranty: 1-year manufacturer warranty

Key Features
• Dual 4 Ohm configuration allows flexible 2 Ohm or 8 Ohm system wiring
• 2" copper voice coil provides reliable heat handling and consistent performance
• Non-pressed paper cone ensures tight, natural low-frequency response
• Double-stack ferrite magnet delivers strong motor force for clean bass output
• Vented pole piece enhances thermal control during long playback sessions
• High-roll foam surround supports deep excursion with low distortion
• Engineered for balanced performance in sealed or ported enclosures
