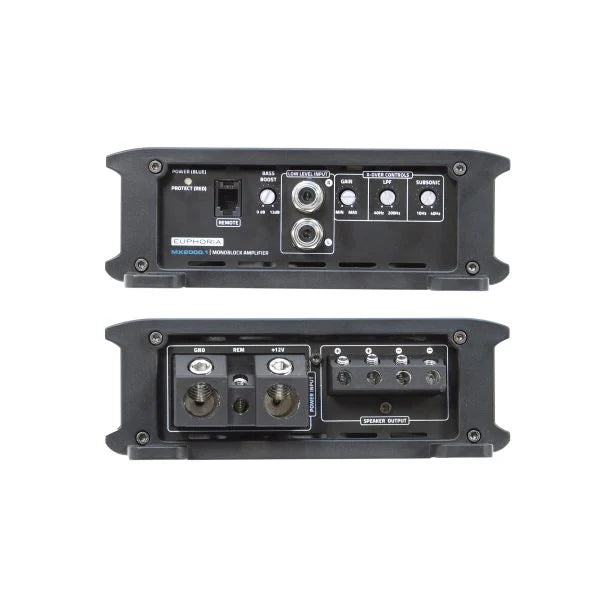

Euphoria – MX2000.1

Class D Monoblock Amplifier – Specifications

Power Output

• 1Ω: 2000W RMS

• 2Ω: 1200W RMS

• 4Ω: 800W RMS

Amplifier Type

• Class: D

• Topology: Monoblock (Subwoofer Amplifier)

Frequency Response

• 10Hz – 250Hz

Signal Processing

• Low Pass Filter: 40Hz – 250Hz

• Subsonic Filter: 10Hz – 50Hz

• Bass Boost: 0–12dB @ 45Hz

• Phase Shift: 0–180°

• Variable Gain Control

Inputs & Outputs

• RCA Inputs: Yes

• RCA Outputs: Yes (Pass-through)

• Speaker Terminals: Heavy-duty set screw

Features

• Thermal Protection

• Short Circuit Protection

• Overload Protection

• Remote Bass Knob Included

Electrical

• Input Sensitivity: 200mV – 6V

• Fuse Rating: 150A (external recommended)

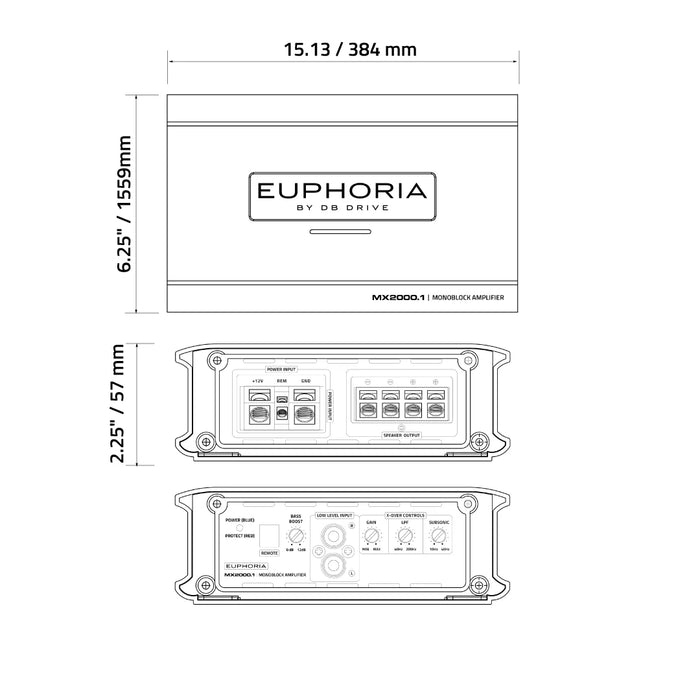

Dimensions

• Length: 12.6"

• Width: 7.2"

• Height: 2.2"
