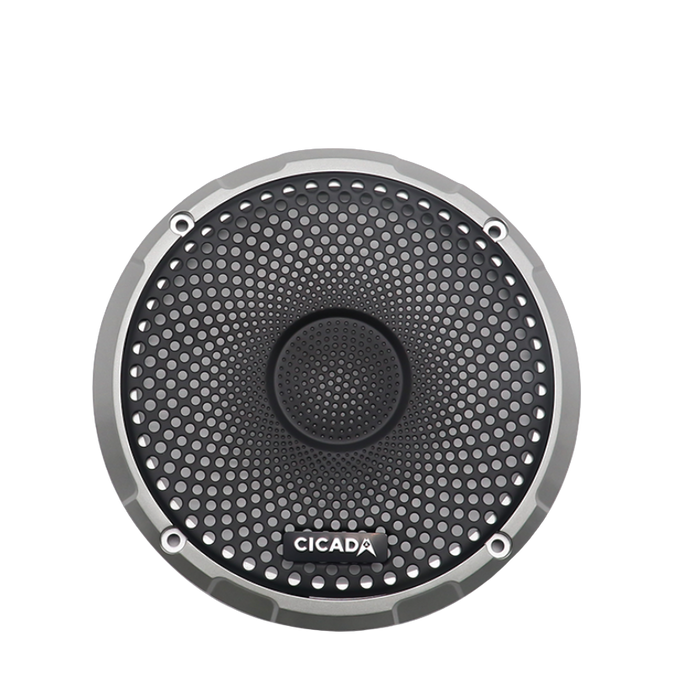

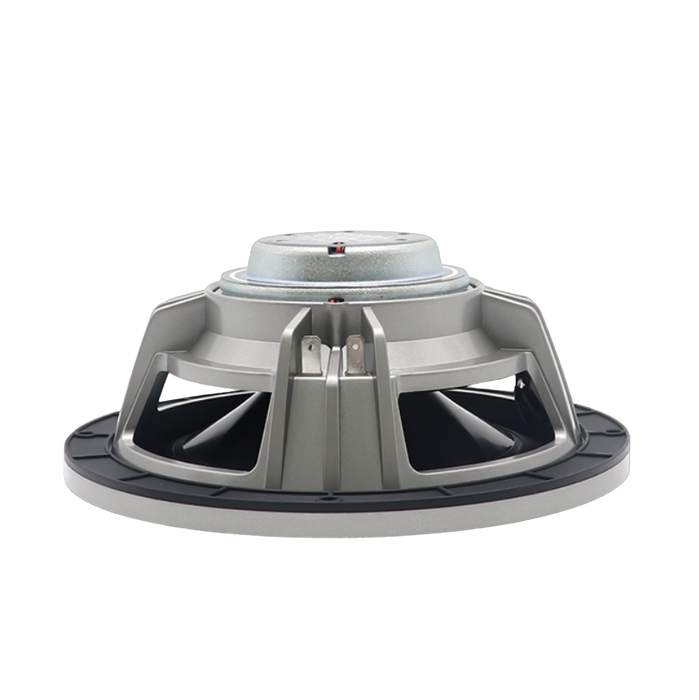

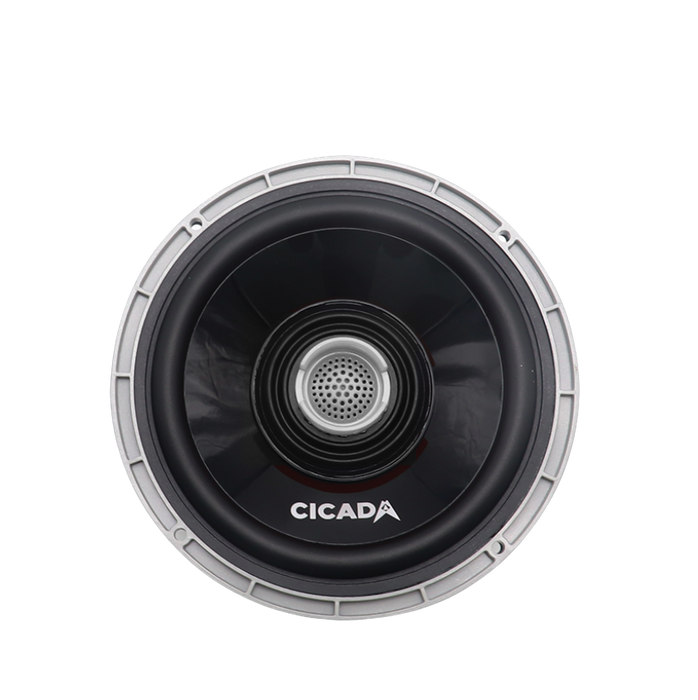

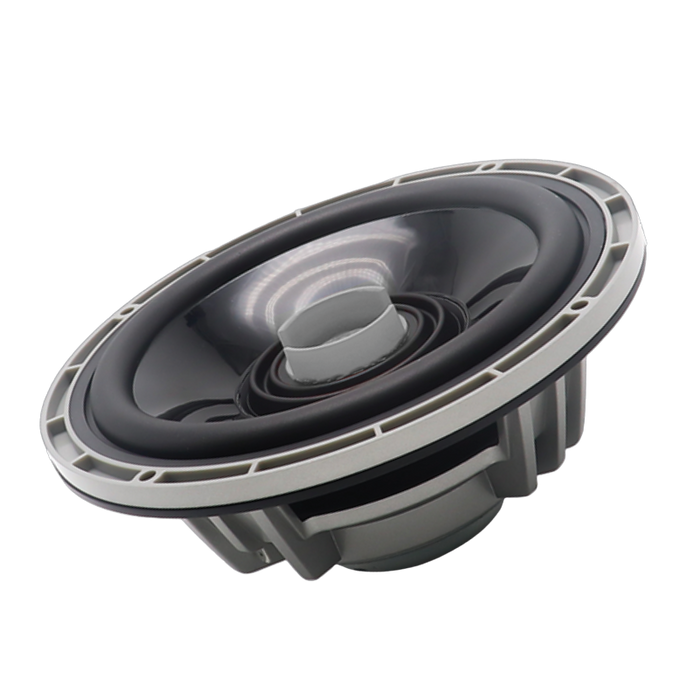

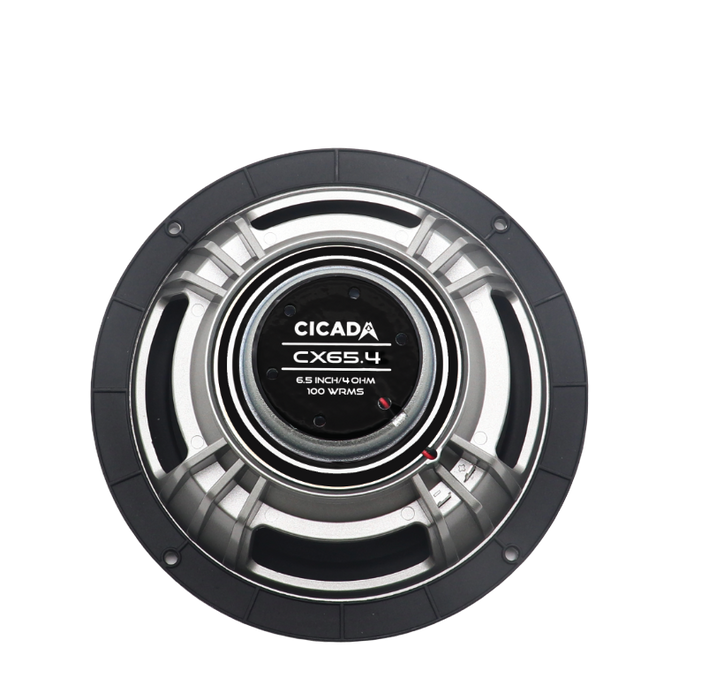

Cicada Audio - CX65.4 - Coaxial 6.5-inch - 4Ω

Specifications
Type: High-Performance Coaxial Speaker
Size: 6.5-inch (165mm)
Impedance: 4Ω
Power Handling (RMS): 100W
Power Handling (Peak): 200W
Sensitivity (1W/1m): 94dB
Frequency Response: 70Hz – 20kHz
Cone Material: Carbon Matrix Composite
Surround: High-Compliance Rubber
Voice Coil: 1.25-inch Copper Wound on Kapton Former
Tweeter Type: Integrated Aluminum Dome Tweeter
Tweeter Size: 1-inch (25mm)
Crossover: Built-In High-Pass Network (12dB/Oct)
Magnet Structure: High-Grade Ferrite Motor with Rear Venting
Frame: Stamped Steel Basket with Black Powder-Coated Finish
Mounting Depth: 2.5" (64mm)
Mounting Cutout: 5.6" (142mm)
Overall Diameter: 6.7" (170mm)
Weight: 3.1 lbs (Each)
Warranty: 2-Year Manufacturer Warranty

Performance Specs
• Delivers clean, full-range sound with excellent balance between midbass punch and high-frequency clarity.
• Optimized for motorcycle and powersport environments with enhanced cone stiffness and durability.
• Carbon Matrix cone resists flex for distortion-free performance even at high SPL levels.
• High-efficiency 4Ω design ensures broad amplifier compatibility and easy integration.
• Tuned for clear, detailed audio with Cicada’s signature open-air voicing.

Key Features
• True Coaxial Design – Midrange and tweeter combined for time-aligned sound.
• Carbon Matrix Cone – Lightweight yet rigid for tight midbass and rich tonality.
• Integrated Aluminum Dome Tweeter – Crisp, accurate highs for detailed response.
• Built-In Crossover Network – Seamless transition between woofer and tweeter.
• Compact Mounting Depth – Ideal for Harley-Davidson® fairing and lid installations.
• Weather-Resistant Materials – Built to withstand road, moisture, and UV exposure.

Performance Integration Notes
• Ideal Pairing: Cicada CXX100.4D or CX150.4D amplifiers (4Ω stable).
• System Compatibility: Harley-Davidson® Touring Models (2014–2023) or custom audio builds.
• Recommended Use: Full-range mid/high-frequency driver for 2-way or coaxial systems.
• Installation Location: Fairing, lids, or custom panels.
• Installation Time: Approx. 30–45 minutes per pair.
• Pro Tip: For best clarity, high-pass filter at 80Hz @ 12dB/oct to reduce cone stress and improve dynamics.
