Specifications

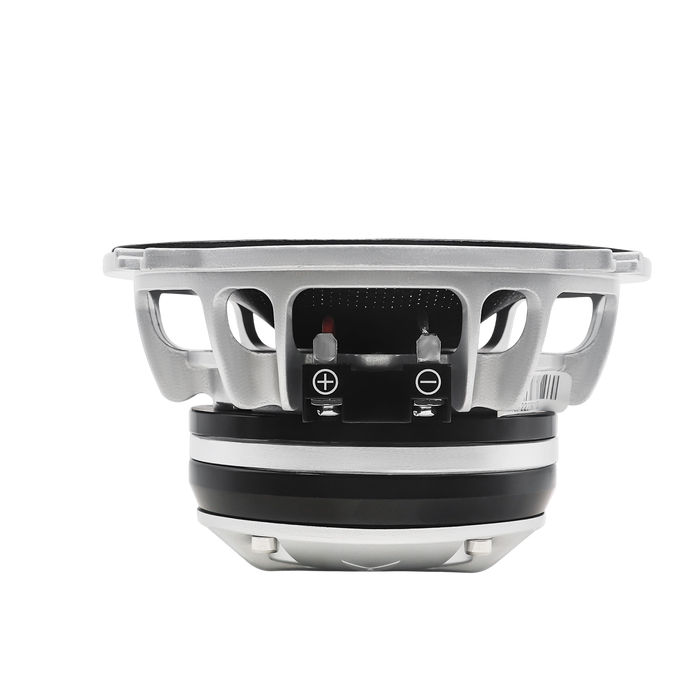

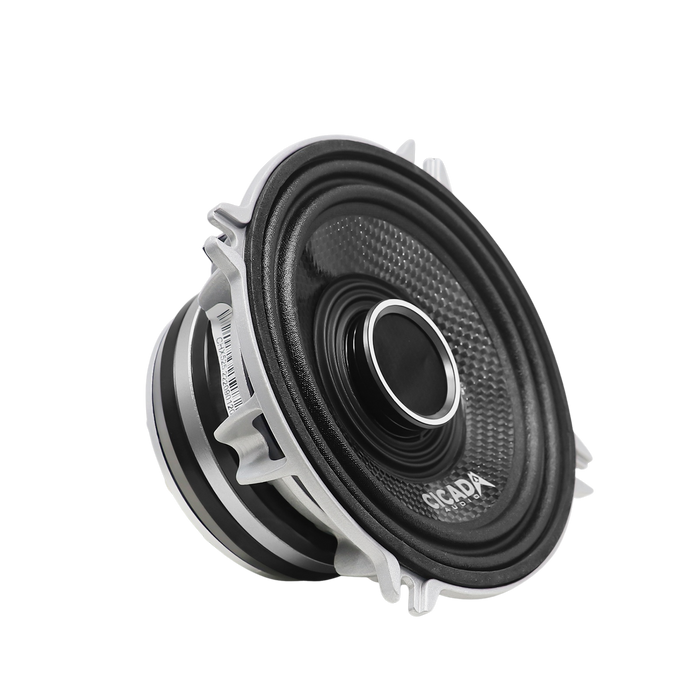

Type: High-Output Pro Coaxial Horn Speaker
Size: 5.25" (Midrange + Integrated Horn Tweeter)
Impedance: 4 Ω
RMS Power Handling: 125 W
Peak Power Handling: 250 W
Sensitivity: 96 dB (1W / 1m)
Frequency Response: 85 Hz – 20 kHz
Midrange Cone Material: Carbon Matrix Reinforced Pulp Composite
Surround: UV-Resistant Rubber
Tweeter Type: Integrated Compression Horn
Tweeter Diaphragm: Titanium
Voice Coil Diameter: 1.5" (Midrange) / 1" (Tweeter)
Voice Coil Material: High-Temp CCAW
Magnet Structure: Dual-Stacked Ferrite Motor
Basket: Cast Aluminum
Mounting Depth: 2.56" (65 mm)
Grilles: Included (Black Mesh)
Sold As: Pair (Left and Right)
Warranty: 2-Year Manufacturer Warranty
Audio Performance Specs
• Frequency Range: 85 Hz – 20 kHz (Full-spectrum output for compact coax design)
• Sensitivity: 96 dB – Extremely efficient for high-output systems.
• Dispersion Pattern: 100° wide horn flare for consistent coverage and imaging.
• Crossover: Integrated 12 dB/octave high-pass filter tuned for seamless horn transition.
• Thermal Handling: Optimized airflow venting maintains cool operation under extended SPL conditions.
Key Features
• Compact Pro Coaxial Design – Combines a powerful midrange with an integrated titanium horn tweeter for full-bandwidth projection.
• Carbon Matrix Cone – Lightweight and rigid for impactful, distortion-free midrange even at extreme volumes.
• Titanium Horn Tweeter – Delivers razor-sharp high frequencies that cut through ambient noise with precision.
• Cast Aluminum Frame – Ensures strength and minimal resonance under high power loads.
• Plug-and-Play Integration – Ideal for bag lids, fairings, and compact enclosures where space is limited.
• Weather-Resistant Build – Coated components withstand moisture, UV, and vibration for long-term reliability.
• Cicada Audio Engineering – Tuned and tested in the USA for riders demanding volume, clarity, and definition at speed.
Performance Integration Notes
• Recommended Amplifiers: Cicada CX150.4D / DSP125.4D / FLX250.4D
• System Fit: Harley-Davidson® Fairing, Lowers, and Saddlebag Lids (2014–Present)
• DSP Settings: HPF 100 Hz / LPF 4.5 kHz (24 dB/Octave)
• Ideal Pairing: Combine with Cicada CMB10.S4NEO or CXX8 midbass for full-stage dynamics and depth.
• Installation Time: Approx. 30–45 minutes (Professional Installation Recommended)
• Pro Tip: Use with Cicada billet grilles or HD bag divider kits (CHD65HD / CHD69MHD) for optimal alignment and protection.
