Specifications

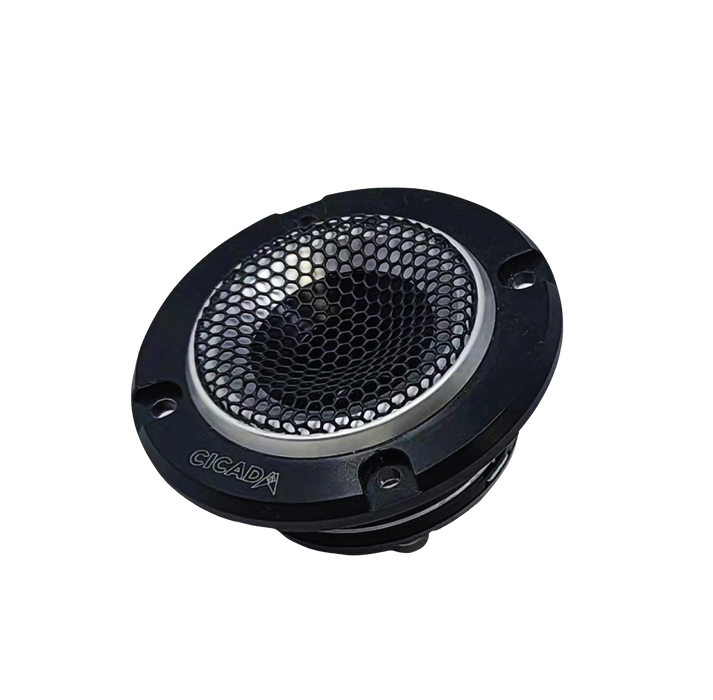

Type: Pro Audio Shallow-Mount Compression Horn Tweeters
Diaphragm Size: 0.75" (19 mm)
Impedance: 4 Ω
RMS Power Handling: 50 W
Peak Power Handling: 100 W
Sensitivity: 107 dB (1W / 1m)
Frequency Response: 4 kHz – 22 kHz
Diaphragm Material: Pure Titanium
Voice Coil: 1" High-Temperature Aluminum
Magnet: Neodymium Motor Structure
Horn Material: Die-Cast Aluminum (Shallow Mount Design)
Mounting Depth: 1.25" (32 mm)
Mounting Diameter: 2.0" (51 mm)
Crossover: External HPF Required (Recommended 5 kHz, 12–18 dB/Octave)
Sold As: Pair (Left and Right)
Warranty: 2-Year Manufacturer Warranty
Audio Performance Specs
• High-Efficiency Output: 107 dB sensitivity delivers extreme clarity and projection at low power levels.
• Extended Frequency Response: Covers up to 22 kHz for brilliant high-frequency detail.
• Titanium Diaphragm Clarity: Produces crisp, defined highs that cut through engine and wind noise.
• Neodymium Motor Assembly: Compact yet powerful design for strong transient attack and accuracy.
• Thermal Management: Vented rear chamber maintains stability during continuous high-volume use.
Key Features
• Shallow-Mount Design – Ideal for Harley-Davidson® fairings, lids, and tight-space installs.
• Pro Audio Performance – Designed for high-SPL motorcycle sound systems where volume and clarity are critical.
• Titanium Diaphragm Construction – Combines strength, speed, and precision for aggressive high-end response.
• Neodymium Motor – Ultra-efficient and lightweight, ensuring minimal strain on mounting surfaces.
• Rugged Cast Aluminum Horn – Eliminates resonance and withstands intense vibration.
• Weather-Resistant Build – Protected against moisture, heat, and UV exposure for long-term durability.
• Cicada Audio Engineering – Tuned and tested in the USA for Harley-Davidson® and custom pro-audio applications.
Performance Integration Notes
• Designed For: Harley-Davidson® Touring Models (2014–Present) and custom motorcycle audio systems.
• Compatible Grilles: CBG65MT / CHDSGGT / CHDRGGT (Tweeter-Mount Versions).
• Recommended Amplifiers: Cicada DSP125.4D / CX150.4D / FLX250.4D.
• Crossover Setting: HPF at 5–6 kHz (12–18 dB/Octave) for ideal protection and tonal balance.
• Installation Time: Approx. 30 minutes (per pair).
