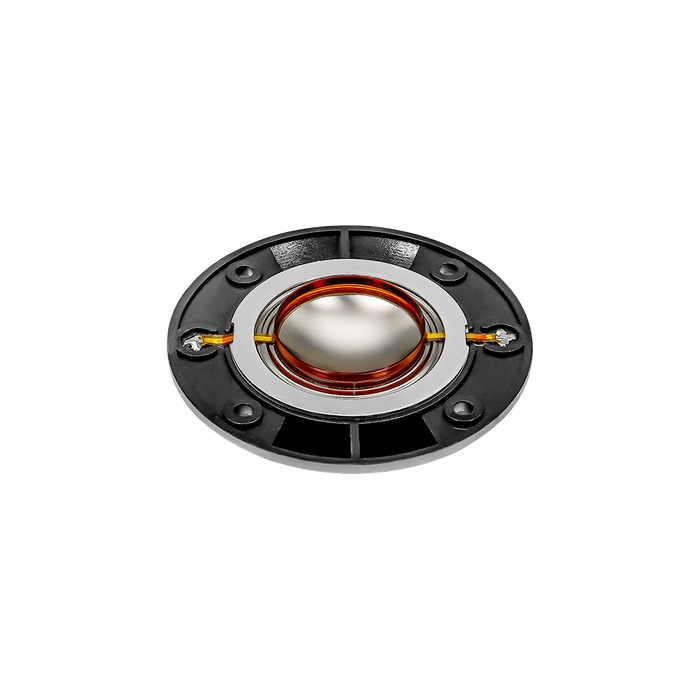

Cicada Audio - CHT14 - 1.4-inch Titanium Diaphragm Replacement - 8Ω

Specifications
Type: Replacement Titanium Diaphragm Assembly
Application: Cicada CH and CHX Series Compression Horn Drivers
Voice Coil Diameter: 1.4-inch (35.5mm)
Impedance: 8Ω
Diaphragm Material: Titanium Dome with Polyimide Suspension
Voice Coil Material: Copper-Clad Aluminum Wire
Former Material: High-Temperature Kapton Former
Power Handling (RMS): 75W
Power Handling (Peak): 150W
Frequency Response: 1.5kHz – 20kHz
Sensitivity (1W/1m): 109dB (Typical When Installed)
Magnet Compatibility: CH and CHX Series 1.4-inch Throat Drivers
Connection Type: Solder Terminals
Mounting Style: Drop-In Replacement (Factory Fit)
Dimensions: 1.4" Dome / Standard Cicada Bolt Pattern
Weight: 0.18 lbs (Each)
Warranty: 1-Year Manufacturer Warranty

Performance Specs
• Restores original clarity and output to Cicada CH and CHX horn drivers.
• Titanium dome provides exceptional rigidity and transient response at high SPL.
• 8Ω impedance ensures compatibility with multi-driver systems and passive crossovers.
• Designed for accurate, distortion-free reproduction of upper midrange and high frequencies.
• Precision voice coil winding maintains Cicada’s signature dynamic response and tonal balance.

Key Features
• OEM Replacement – Direct fit for Cicada CH/CHX 1.4-inch compression drivers.
• High-Power Handling – Built for extreme volume and sustained operation.
• Titanium Construction – Produces crisp, natural highs and extended frequency range.
• Drop-In Fit – Installs quickly using factory hardware and alignment.
• Durable and Heat-Resistant – Optimized for motorcycle and pro-audio environments.
• Genuine Cicada Component – Maintains consistent tonal match across replacement sets.

Performance Integration Notes
• Compatible Models: Cicada CH, CHX, and select RR-Series 1.4" horn drivers.
• Recommended High-Pass Filter: 1.8kHz @ 12dB/oct minimum.
• Installation Location: Inside compression driver assembly, secured with factory screws.
• Installation Time: Approx. 10–15 minutes per driver.
• Pro Tip: Replace both diaphragms simultaneously for consistent stereo balance and tonal match.
