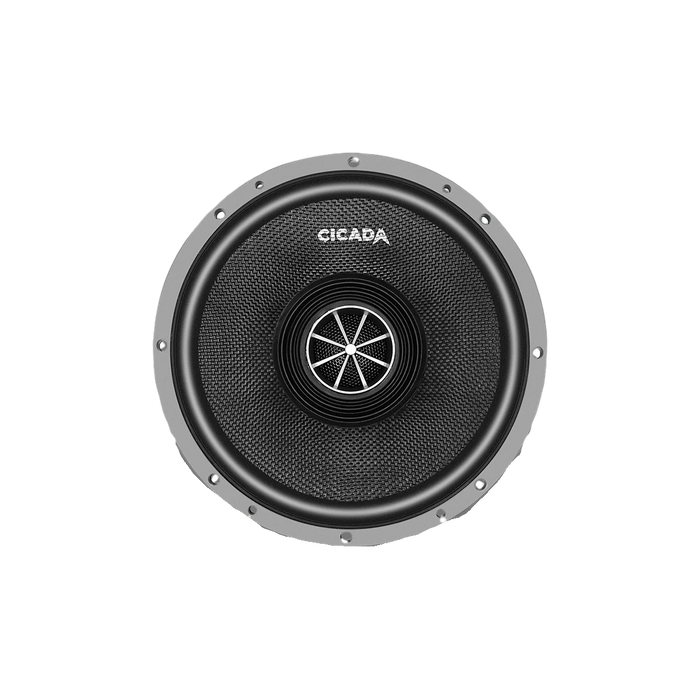

Cicada Audio - CXX8.2 - Pro Coaxial 8-inch - 2Ω - 2-inch voice coil

Specifications
Type: Pro Coaxial Midbass / Compression Driver Speaker
Speaker Size: 8" (203 mm)
Configuration: 2-Way Coaxial – Midbass + Integrated Compression Tweeter
Impedance: 2 Ω
RMS Power Handling: 250 W
Peak Power Handling: 500 W
Sensitivity: 100 dB (1W / 1m)
Frequency Response: 70 Hz – 20 kHz
Midbass Voice Coil: 2" High-Temperature CCAW (Copper-Clad Aluminum Wire)
Tweeter Voice Coil: 1" Titanium Dome Diaphragm Compression Driver
Cone Material: Non-Pressed Paper with Resin Treatment
Surround: Cloth Reinforced for High SPL Stability
Frame: Heavy-Duty Cast Aluminum Basket
Magnet Structure: High-Energy Dual-Stack Ferrite Motor
Crossover Type: Built-In High-Pass Filter for Tweeter Protection
Mounting Depth: 3.78" (96 mm)
Cutout Diameter: 7.2" (183 mm)
Warranty: 2-Year Manufacturer Warranty

Audio Performance Specs
• Frequency Range: 70 Hz – 20 kHz (Full-Range Coaxial Output)
• Sensitivity: 100 dB – Designed for maximum loudness and clarity in open-air motorcycle applications.
• Power Handling: 250 W RMS for consistent, high-output sound without compression.
• Midbass Strength: Deep, authoritative midbass from the oversized 2" voice coil and dual-magnet motor.
• Tweeter Detail: Titanium compression design for crisp highs and extended frequency reach.

Key Features
• Built for 2 Ω High-Efficiency Systems – Ideal for multi-amp or 2-channel bridged setups where maximum power transfer is critical.
• Integrated Compression Tweeter Design – Produces full-spectrum clarity and aggressive top-end detail.
• Motorcycle & Powersports Rated – Weather-resistant cone and surround handle moisture, UV, and temperature extremes.
• Massive Output Efficiency – 100 dB sensitivity ensures huge SPL from compact amplifier power.
• Reinforced Cast Basket – Provides structural rigidity and heat dissipation for long-term reliability.
• Dual Magnet Design – Enhances control and midbass dynamics for high-speed clarity and punch.
• Cicada Audio Sound DNA – Engineered in the USA for riders who demand pure output and clean tone at full volume.

Performance Integration Notes
• Recommended Amplifier Pairing: Cicada CX150.4D / CX250.2D / FLX2500.1 (bridged or high-current setups)
• Ideal System Match: CXX8.2 (Fairing/Bags) paired with RR075T or RR1T Tweeters for full-stage projection.
• Crossover Settings: HPF at 70 Hz, 24 dB/octave for optimal performance and thermal protection.
• Installation Time: Approx. 30–45 minutes (Professional Installation Recommended)
