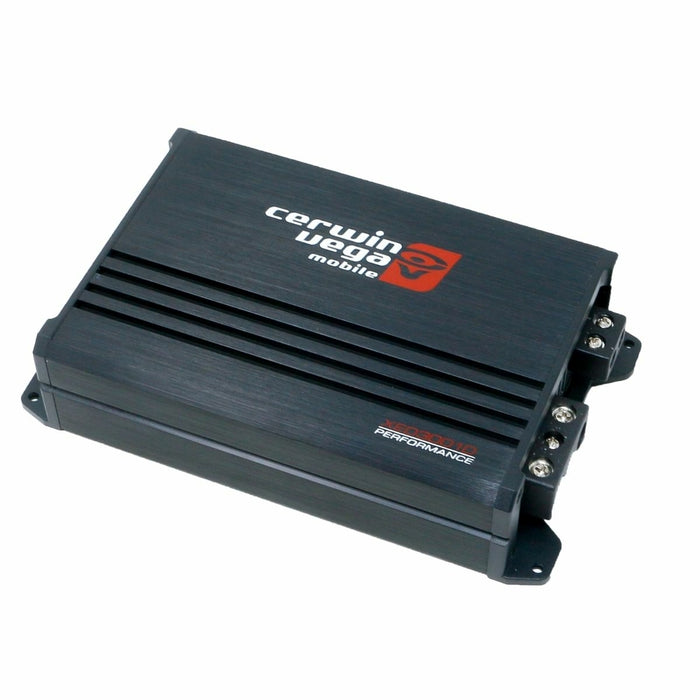

Cerwin Vega - XED3001 XED 1-CHANNEL / 350WX1@1Ω RMS / 300W MAX

DESCRIPTION

• 1-channel (mono) amplifier

• Rated 350W x 1 @ 1 Ω RMS (system dependent)

• 300W Max class consumer output rating

• Compact chassis suitable for motorcycle, powersports, and automotive installs

FEATURES

• Designed for single subwoofer or low-frequency channel amplification

• Stable to 1 Ω (verify ventilation and wiring conditions)

• Class D topology for high efficiency and lower heat generation

• Low-pass crossover and subsonic filter for tuning control

• High-level (speaker) and low-level (RCA) inputs for OEM radio compatibility

• Protection circuitry for thermal / overload / short events

SPECIFICATIONS

• Amplifier Type: Mono Class D

• RMS Output:

  • ~350W x 1 @ 1 Ω

  • ~200W x 1 @ 2 Ω

  • ~120W x 1 @ 4 Ω (values typical for XED series tuning)

• Maximum Power: 300W Max (marketing rating)

• Frequency Response: ~20 Hz – 250 Hz

• Signal Inputs: RCA + High-Level

• Low-Pass Filter: Variable ~50 Hz – 150 Hz

• Subsonic Filter: ~20 Hz (fixed or selectable, unit dependent)

• Protection: Thermal / Short / Overload

• Power / Ground Connection: Standard motorcycle/automotive install style

DIMENSIONS

• Chassis Length: ~7.5 in (191 mm)

• Width: ~6.9 in (175 mm)

• Height: ~1.9 in (48 mm)

• Mounting Location Guidance: Fairing, saddlebag amp rack, trunk panel

FITMENT

• Motorcycle saddlebags or inner fairing amplifier racks with proper ventilation

• Automotive trunk, cargo area, or under-seat mounting

• Works with factory radios when paired with LOC or high-level input

INCLUDES

• XED3001 amplifier

• Mounting hardware (varies by packaging)
