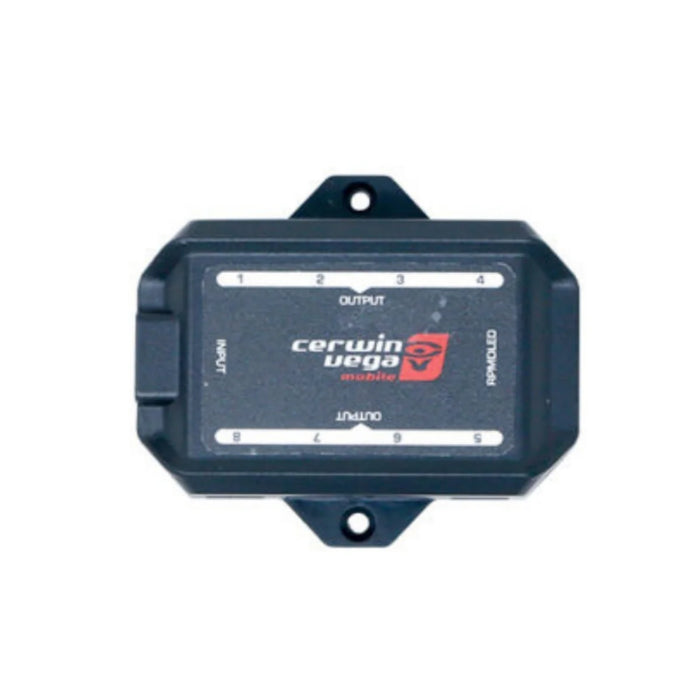

Cerwin Vega - RPMDLED - RF remote controlling multiple LED functions such as colors, brightness, fade, speed

DESCRIPTION

• RF wireless LED control module

• Controls multi-color LED lighting for speakers, grills, rings, and accent lighting

• Designed for motorcycle, powersports, marine, and automotive lighting systems

FEATURES

• RF remote (not Bluetooth) allows control without needing line-of-sight

• Adjusts color, brightness, fade, strobe, chase, and speed effects

• Supports static colors, color-shift patterns, and multi-speed transitions

• Works with 12V LED lighting systems (standard common-anode / RGB setup)

• Compact controller module mounts inside fairings, saddlebags, dash cavities, or under seats

• Weather-resistant remote suitable for motorcycle / outdoor environments

SPECIFICATIONS

• Control Type: RF Wireless (Radio Frequency)

• LED Compatibility: RGB / Multi-Color LED Lighting

• Input Voltage: 12V DC (motorcycle / automotive)

• Output Type: RGB control signal output for LED driver/lighting

• Functions Supported:

  • Solid color selection

  • Multi-color rotation

  • Fade / smooth transition

  • Flash / strobe

  • Speed adjustment

  • Brightness adjustment

• Range: ~15–30+ ft (open-air signal range)

• Receiver Housing: Compact inline controller

DIMENSIONS

• Control Box Length: ~2.6 in (66 mm)

• Width: ~1.6 in (41 mm)

• Height: ~0.7 in (18 mm)

• Harness Length: ~12–24 in depending on production run

• Remote Size: Palm-sized, multi-button membrane or hard-key layout (varies by batch)

FITMENT

• Motorcycle saddlebags, fairings, under-seat storage, and frame cavities

• Marine dash and hull lighting

• Powersports roll cage / interior lighting

• Automotive interior / accent and cargo lighting

INCLUDES

• RPMDLED LED RF Controller

• RF handheld remote

• Wiring harness leads (in/out)

• Quick setup instruction sheet
