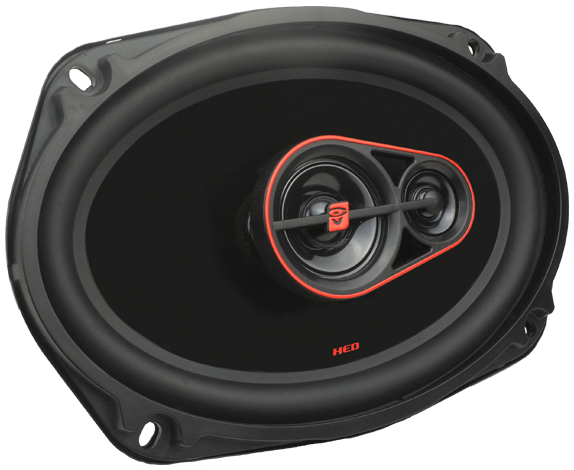

Cerwin Vega - H7693 - 6"X9" 3-way coaxial set - 420W MAX / 60W RMS POWER HANDLING

DESCRIPTION

• 6" × 9" 3-way coaxial speaker set

• 60W RMS / 420W Max power handling

• Sold as a pair

• For motorcycle bag lids (with adapters), fairings, and automotive replacement locations

FEATURES

• 3-way coaxial architecture provides extended midrange and high-frequency clarity

• Weather-resistant treated cone structure suitable for motorcycle & outdoor use

• Rubber surround for stable excursion and long service life

• Stamped steel basket engineered for vibration resistance

• High-efficiency design performs well with factory or aftermarket amplifiers

SPECIFICATIONS

• Size: 6" × 9"

• Configuration: 3-way coaxial

• RMS Power: 60W

• Peak Power: 420W

• Impedance: 4 Ω

• Frequency Response: ~45 Hz – 20 kHz (system dependent)

• Sensitivity: High-efficiency for open-air environments

• Cone Material: Treated composite cone

• Surround: Rubber

• Tweeter Assembly: Multi-element coaxial tweeter structure

• Basket: Stamped steel

• Motor Structure: Ferrite magnet

DIMENSIONS

• Overall Frame Width: ~10.9 in (277 mm)

• Overall Frame Height: ~7.6 in (193 mm)

• Cutout Opening: ~8.8 in × 5.9 in (224 mm × 150 mm)

• Mounting Depth: 3.1 in (79 mm)

• Top Mount Height: Low-profile grille compatible

• Weight (per speaker): Medium driver mass for saddlebag stability

FITMENT

• Motorcycle saddlebag cut-in kits and bag-lid pod systems (where depth allows)

• Suitable for automotive rear deck, door, or panel installs

• Works with both factory radios and aftermarket amplifiers

INCLUDES

• (2) H7693 6" × 9" 3-way coaxial speakers

• Grilles / mounting hardware (application dependent)
