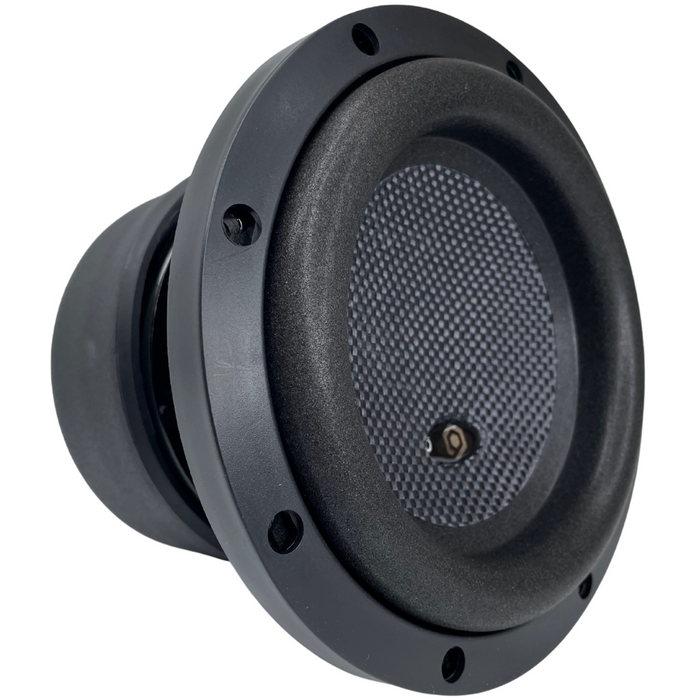

    SoundQubed - HDX2-6-D2 - HDX2 Series Subwoofer 6.5 inch 2" DVC 450w/1000w

    SoundQubed - HDX2-6-D2 - HDX2 Series Subwoofer 6.5 inch 2" DVC 450w/1000w

    by Sound Qubed
    Sold out
    $149.95 - $149.95
    $149.95
    $149.95 - $149.95
    $149.95

    6.5" HDX2 Series Subwoofer – Dual 2Ω

    • Model: HDX2-6-D2
    • Series: HDX2
    • Size: 6.5" Subwoofer
    • Voice Coil: 2" high-temperature Dual 2Ω copper coils
    • Power Handling:
    – 450W RMS
    – 1000W Peak
    • Suspension:
    – High-roll surround for increased excursion
    – Reinforced spider system for control and durability
    • Motor:
    – High-strength ferrite motor
    – Vented pole piece for cooling under heavy load
    • Terminals: Heavy-duty push terminals
    • Application: Compact high-output bass for small enclosures, ideal for motorcycle, powersports, and tight-space installs





    Model
    HDX 6.5
    HDX 8
    RMS Power
    450 W
    850 W
    Peak Power
    1000 W
    1700 W
    Magnet Weight
    75 Oz
    125 Oz
    Coil Diameter
    2"
    2.5"
    Coil Length
    30 mm
    36 mm
    Woofer Size
    6.5"
    8"
    F(s)
    54.235 Hz
    42.157 Hz
    Impedance
    D2 / D4
    D2 / D4
    Q(ms)
    5.521
    4.841
    Q(es)
    0.511
    0.401
    Q(ts)
    0.546
    0.391
    V(as)
    2.317 L
    5.122 L
    M(ms)
    85.480 grams
    149.338 grams
    Sensitivity 1W/1m
    81.5
    82.1
    BL
    14.84
    17.56
    Xmax
    8mm
    12mm
    Sd
    13.273" m2
    20.106" m2
    Displacement
    .06ft³
    .09t³
    Mounting Depth
    4.527"
    5.59"
    Circle Cutout
    5.905"
    7.244"
    Sealed Enclosure (Cu Ft):
    .25-.5FT³
    .35-.75FT³
    Ported Enclosure (Cu Ft):
    .35-1.0FT³
    1.0-1.5FT³
