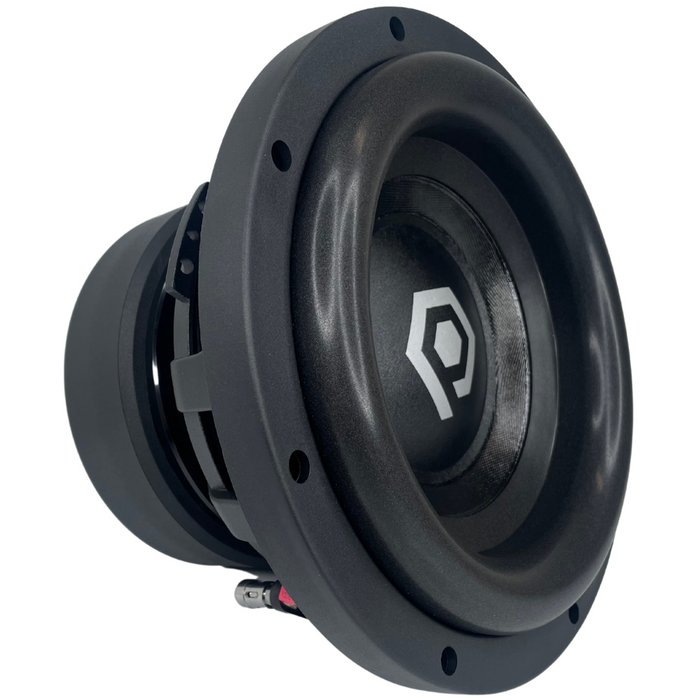

    SoundQubed - HDS3.210-D2 - HDS3.2 Series Subwoofer 10 Inch 3" DVC 1200w/2400w

    SoundQubed - HDS3.210-D2 - HDS3.2 Series Subwoofer 10 Inch 3" DVC 1200w/2400w

    by Sound Qubed
    Sold out
    $269.95 - $269.95
    $269.95
    $269.95 - $269.95
    $269.95

    10" HDS3.2 Series Subwoofer – Dual 2Ω

    • Model: HDS3.210-D2
    • Series: HDS3.2
    • Size: 10" Subwoofer
    • Voice Coil: 3" high-temperature Dual 2Ω copper coils
    • Power Handling:
    – 1200W RMS
    – 2400W Peak
    • Suspension:
    – High-roll surround for maximum excursion
    – Dual-layer progressive spider for superior control and durability
    • Motor:
    – Large ferrite motor with vented pole and cooling gaps
    – Designed for high-output musical bass and daily abuse
    • Terminals: Heavy-duty push terminals
    • Application: Perfect for high-power daily systems, strong output in ported enclosures, and deep low-frequency response with excellent reliability

    Model HDS3.210 HDS3.212 HDS3.215
    RMS Power 1200 Watts  1200 Watts  1200 Watts
    Peak Power 2400 Watts  2400 Watts  2400 Watts
    Magnet Weight 160 ounce 160 ounce 160 ounce
    Coil Diameter 3" 3" 3"
    Impedance D2/D4 D2/D4 D2/D4
    R(e) 4.296 6.2 5.284 Ω
    F(s) 33.85 32.16 28.26 Hz
    Z(max) 61.1 67.13 56.26 Ω
    BL 25.07 25.4 22.66
    Q(ms) 4.752 5.767 6.394
    Q(es) 0.359 0.586 0.6628
    Q(ts) 0.334 0.5326 0.6006
    V(as) 13.21 L 29.23 L 83.34 L
    L(e) 1.9 mH 2.35 mH 7.619 mH
    n(0) 0.136 % 0.158 % 0.27%
    M(ms) 247.2 grams 302.1 grams 362.6 grams
    C(ms) 0.089 mm/N 0.081 0.087 mm/N
    Sensitivity 1W/1m 83.43 84.09 86.42 1W/1m
    Xmax 26 mm 28MM 30M M
    Displacement 0.11 Ft³ 0.12 Ft³ .16 Ft³
    Mounting Depth 6.75" 6.75 7.75"
    Circle Cutout 9 3/8" 11 1/4" 13.875"
    Outer Diameter W/Gasket 10.75" 12.75" 15.5"
    Sealed Enclosure (Cu Ft): .5-1.0 FT³ .75-1.5 FT³ 1.75-2.75 FT³
    Ported Enclosure (Cu Ft): .75-1.25 FT³ 1-1.75 FT³ 3-6 FT³
