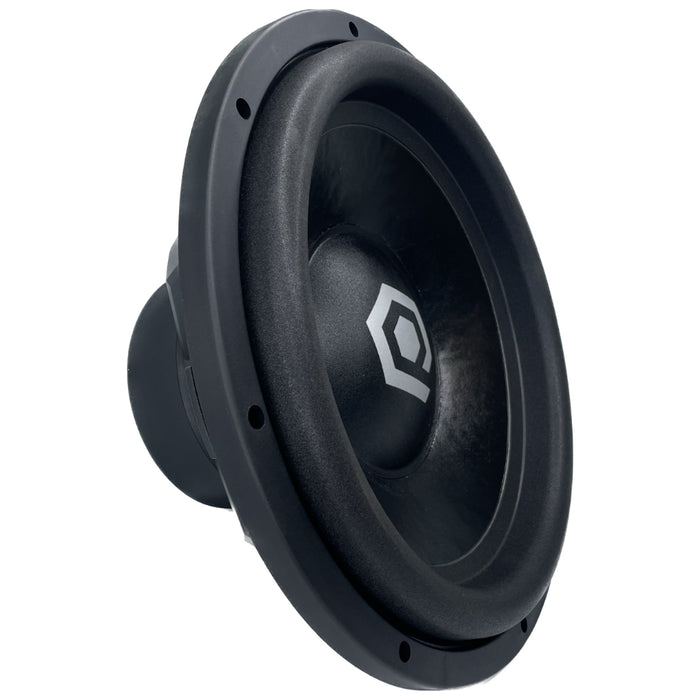

    SoundQubed - HDS2.215-D4 - HDS2.2 Series Subwoofer 15 Inch 2.5" DVC 600w/1200w

    SoundQubed - HDS2.215-D4 - HDS2.2 Series Subwoofer 15 Inch 2.5" DVC 600w/1200w

    by Sound Qubed
    Sold out
    $269.95 - $269.95
    $269.95
    $269.95 - $269.95
    $269.95

    15" HDS2.2 Series Subwoofer – Dual 4Ω

    • Model: HDS2.215-D4
    • Series: HDS2.2
    • Size: 15" Subwoofer
    • Voice Coil: 2.5" high-temperature Dual 4Ω copper coils
    • Power Handling:
    – 600W RMS
    – 1200W Peak
    • Suspension:
    – High-roll surround for deep excursion
    – Progressive spider for improved control and longevity
    • Motor:
    – Vented pole piece for cooling
    – High-strength ferrite magnet for strong motor force
    • Terminals: Heavy-duty push terminals
    • Application: Ideal for daily-driver bass setups needing deep, rich low-frequency output in ported or sealed enclosures



    Model HDS206 HDS2.208 HDS2.210 HDS2.212 HDS2.215
    RMS Power 350 W 600 W 600 W 600 W 600 W
    Peak Power 1000 W 1200 W 1200 W 1200 W 1200 W
    Magnet Weight 60 Oz 100 Oz 100 Oz 100 Oz 100 Oz
    Coil Diameter 2" 2.5" 2.5" 2.5" 2.5"
    Coil Length 28 mm 36 mm 40 mm 40 mm 40 mm
    Woofer Size 6.5" 8" 10" 12" 15"
    F(s) 45.39 Hz 44.41 Hz 33.65 30.95 26.92
    Impedance D2 / D4 D2 / D4 D2 / D4 D2 / D4 D2 / D4
    Z(max) 33.81 38.77 Ω 65.65 59.14 Ω 56.79
    Q(ms) 3.553 4.465 5.461 5.078 6.363
    Q(es) 0.5515 0.5791 0.3991 0.423 0.608
    Q(ts) 0.4774 0.5126 0.3719 0.3905 0.5551
    V(as) 3.264 L 5.319 L 17.43 L 45.57 L 100 L
    L(e) 1.498 mH 5.394 mH 5.745 6.079 mH 6.473
    n(0) 0.05% 0.07673 % 0.1586 0.3046 % 0.3058
    M(ms) 93.7 143.8 grams 201.7 209.2 grams 333.1
    C(ms) 0.131 0.089 mm/N 0.111 0.126 mm/N 0.105
    Sensitivity 1W/1m 79.32 80.95 84.1 86.94 86.95
    BL 14.84 17.56 21.86 20.91 21.42
    Xmax 9 13 14 14 14
    Sd 5.25" 6.37" 8.125" 10" 12.75"
    Displacement .04ft³ .06^ft³ .06^ft³ .07^ft³ .11^ft³
    Mounting Depth 4.125" 5.5" 6.75" 6.75" 7.44"
    Circle Cutout 6.0625 7.5" 9.375" 11.25" 13.875"
    Sealed Enclosure (Cu Ft): .25-.5 FT³ .35-.75 Ft³ .5-1.0 FT³ .75-1.5 FT³ 1.75-2.75 FT³
    Ported Enclosure (Cu Ft): .25-75 Ft³ .75-1.25 FT³ .75-1.25 FT³ 1-1.75 FT³ 3-6 FT³
