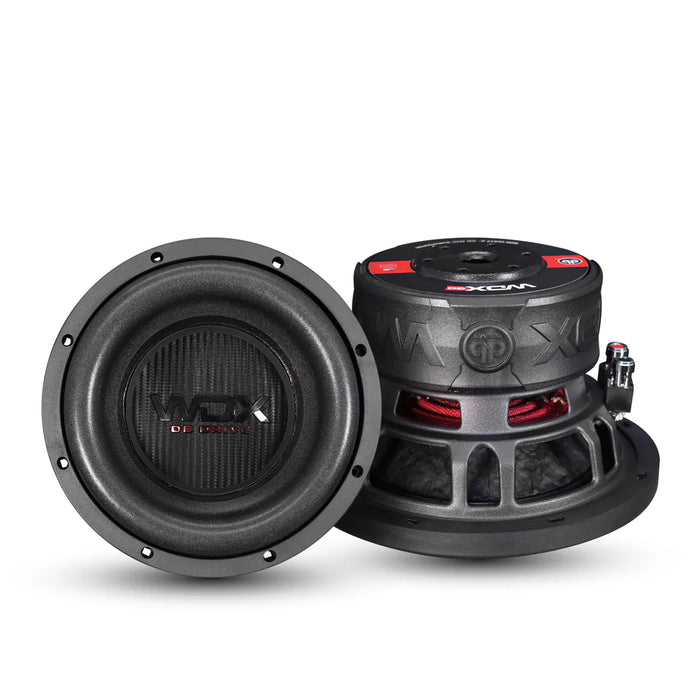

    DB Drive – WDX8G0.4 – 8″ Stamped-Frame Woofer (Dual 4Ω)

    Power Handling (RMS / Max): 400W RMS / 800W Max

    Impedance: Dual 4Ω voice coils

    Voice Coil / Motor: 2.0″ high-temperature coil

    Resonance (Fs): 41.7 Hz

    Qms / Qes / Qts: ~ 2.23 / 0.45 / 0.37

    Vas (Equivalent Volume): 8.42 liters

    Xmax: ±11 mm

    Construction / Features:
    • Reinforced paper cone
    • Foam surround, double-stitched
    • Dual poly-cotton spiders
    • Vented stamped basket for cooling
    • Protective magnet cover
    • Large compression terminals

    Mounting / Dimensions:
    • Frame / Flange Diameter: 8.42″
    • Cutout Diameter: 6.90″
    • Mounting Depth: 4.62″

    Recommended Enclosures:
    • Sealed: 0.70 cu ft
    • Vented: 0.90 cu ft, tuned ~45 Hz
