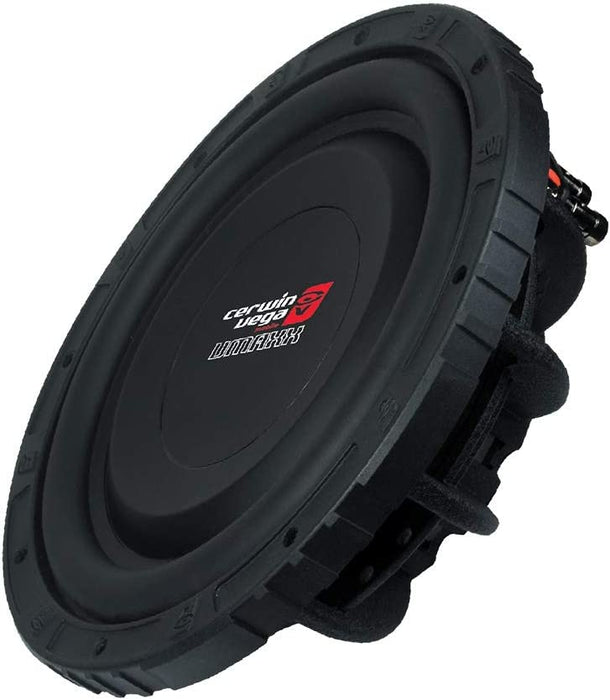

Cerwin Vega - VMAXS102 - VMAXX SQUARED SHALLOW 10" DVC 2Ω

DESCRIPTION

• 10-inch shallow-mount subwoofer

• Dual 2-ohm voice coil configuration

• Part of the VMAXX SQUARED shallow high-output series

• Designed for tight-depth enclosures in motorcycle, truck, and compact vehicle installs

FEATURES

• Ultra-shallow mounting depth for limited-space applications

• Reinforced composite cone provides rigidity and controlled bass response

• High-excursion rubber surround for increased output in reduced air volume

• DVC (Dual Voice Coil) allows wiring to 1Ω or 4Ω final system load

• Vented motor and heat management system supports sustained high-power play

• Optimized for sealed enclosures where airspace is limited

SPECIFICATIONS

• Size: 10 in (254 mm)

• Voice Coil: Dual 2 Ω (DVC)

• RMS Power (usable): ~400–500W RMS (system and ventilation dependent)

• Peak Power: ~1000W Max

• Frequency Response: ~30 Hz – 250 Hz (enclosure dependent)

• Sensitivity: High-efficiency, tuned for small volume enclosures

• Cone Material: Reinforced composite cone

• Surround: High-excursion rubber surround

• Voice Coil: High-temp copper multi-layer

• Basket: Low-profile stamped steel shallow basket

• Motor: Slim ferrite structure with vented pole cooling

DIMENSIONS

• Overall Diameter: ~10.7 in (272 mm)

• Cutout Diameter: ~9.2 in (234 mm)

• Mounting Depth: ~3.6 in (91 mm) (shallow profile)

• Top Mount Height: Low-profile surround for grille clearance

• Recommended Sealed Volume: ~0.45 – 0.80 ft³ (13 – 23 L)

• Recommended Ported: Not recommended (shallow driver optimized for sealed)

FITMENT

• Motorcycle saddlebag subwoofer enclosures (ensure depth & volume match)

• Truck under-seat / behind-seat slim enclosures

• Automotive trunk corner or low-profile hidden sub installs

• Works best with compact Class D monoblock amplifiers

INCLUDES

• (1) VMAXS102 Subwoofer (sold each)
