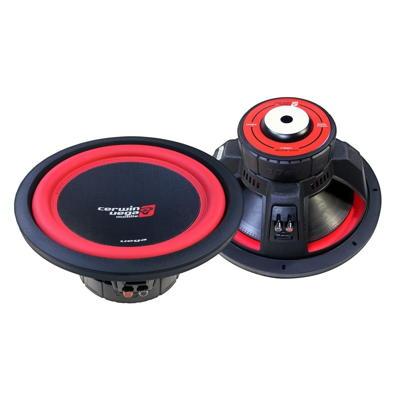

Cerwin Vega - V102DV2 - 10” Dual 2-ohm High-Performance Subwoofer

DESCRIPTION

• 10-inch high-performance subwoofer

• Dual 2-ohm voice coil configuration

• Designed for strong daily bass in sealed or ported enclosures

• Suitable for motorcycle, automotive, and powersports systems (with correct air volume)

FEATURES

• Reinforced composite cone provides stiffness and accuracy under high excursion

• Oversized rubber surround supports deep, controlled cone travel

• Dual 2Ω voice coils allow wiring flexibility (1Ω / 4Ω final impedance options)

• Vented motor assembly enhances cooling during extended high-output playback

• Built for daily reliability with high dynamic headroom

SPECIFICATIONS

• Size: 10 in (254 mm)

• Voice Coil: Dual 2 Ω (DVC)

• RMS Power (usable range): ~400–600W RMS (system dependent)

• Peak Power: ~1200W Max (dynamic program handling)

• Frequency Response: ~28 Hz – 250 Hz (enclosure dependent)

• Sensitivity: High-efficiency, designed for strong output on moderate power

• Cone Material: Reinforced composite cone

• Surround: High-excursion rubber

• Voice Coil: Multi-layer high-temperature copper wound

• Basket: Stamped steel high-strength frame

• Motor: Ferrite magnet w/ vented pole cooling

DIMENSIONS

• Overall Diameter: ~10.8 in (274 mm)

• Cutout Diameter: ~9.2 in (234 mm)

• Mounting Depth: ~5.0 in (127 mm)

• Top Mount Height: Raised surround — allow grille clearance

• Recommended Sealed Volume: ~0.60 – 1.00 ft³ (17 – 28 L)

• Recommended Ported Volume: ~1.10 – 1.75 ft³ (31 – 50 L), tuning ~34–38 Hz

• Weight: Medium-heavy motor structure (requires solid baffle)

FITMENT

• Motorcycle saddlebags only when depth + volume are confirmed adequate

• Automotive trunk / hatch enclosures

• Truck behind-seat / under-seat enclosures (proper depth required)

• Powersports / marine if installed in sealed, protected enclosures

INCLUDES

• (1) V102DV2 Subwoofer (sold each)
