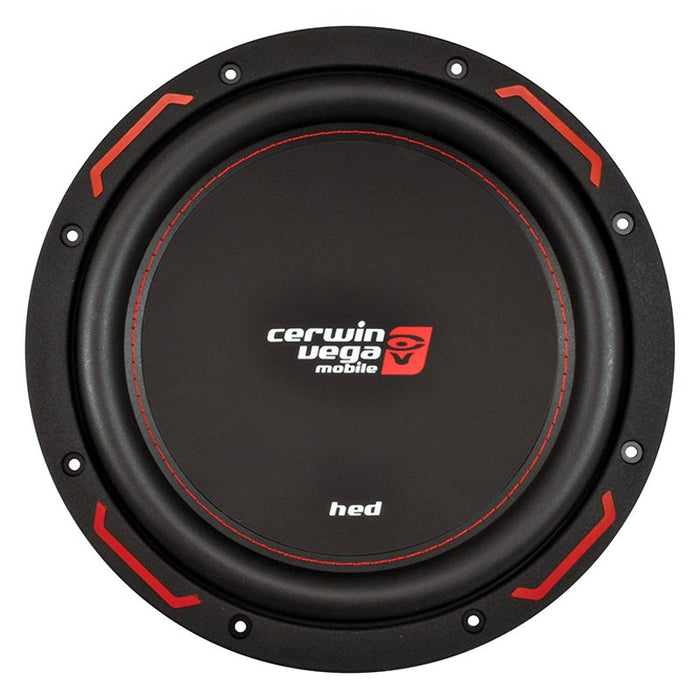

Cerwin Vega - H7104D - 10” 4-ohm High-Performance Subwoofer

DESCRIPTION

• 10-inch high-performance subwoofer

• Dual 4-ohm voice coil configuration

• Designed for strong daily bass in compact to mid-size sealed or vented enclosures

FEATURES

• Reinforced composite cone for stiffness and low-frequency control

• Oversized rubber surround enables extended excursion and bass impact

• Dual 4Ω voice coils allow flexible wiring (2Ω / 8Ω final system impedance options)

• Vented pole piece improves heat dissipation for sustained play

• Built for reliable daily music playback, not just peak bursts

SPECIFICATIONS

• Size: 10 in (254 mm)

• Voice Coil Configuration: Dual 4 Ω (DVC)

• RMS Power (usable range): ~350–500W RMS (system dependent)

• Peak Power: ~1000W+ dynamic handling

• Frequency Response: ~30 Hz – 250 Hz (enclosure dependent)

• Sensitivity: High-efficiency, optimized for strong output on moderate power

• Cone Material: Reinforced composite

• Surround: High-excursion rubber surround

• Voice Coil: High-temp multi-layer copper wound

• Basket: Heavy-duty stamped steel

• Motor: High-density ferrite magnet w/ vented cooling

DIMENSIONS

• Overall Diameter: ~10.8 in (274 mm)

• Cutout Diameter: ~9.2 in (234 mm)

• Mounting Depth: ~5.1 in (130 mm)

• Top Mount Height: Raised surround — allow grille clearance

• Recommended Sealed Volume: ~0.60 – 1.00 ft³ (17 – 28 L)

• Recommended Ported Volume: ~1.10 – 1.75 ft³ (31 – 50 L), tuning ~34–38 Hz

• Weight: Medium-heavy motor assembly (requires rigid baffle)

FITMENT

• Motorcycle saddlebag enclosures only if depth and volume allow

• Automotive trunk, cargo, or under-seat custom enclosures

• Powersports / marine use when properly sealed and protected

INCLUDES

• (1) H7104D Subwoofer (sold each)
