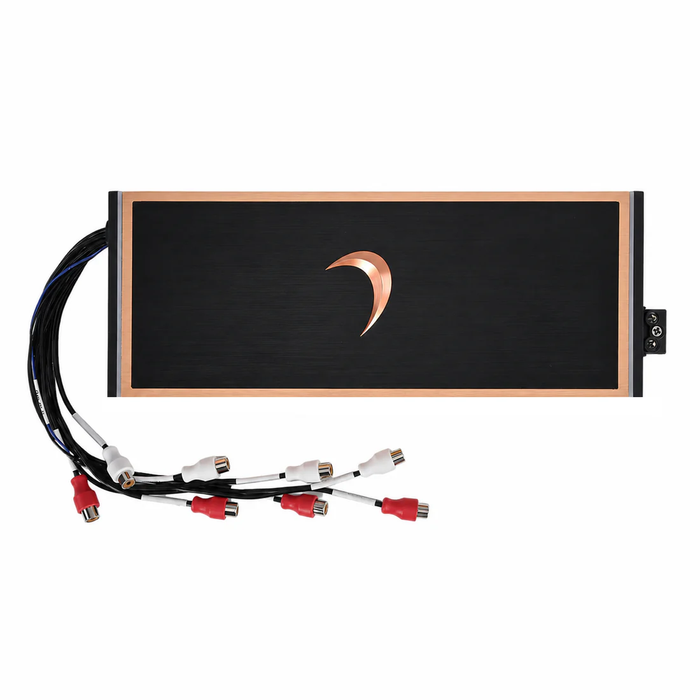

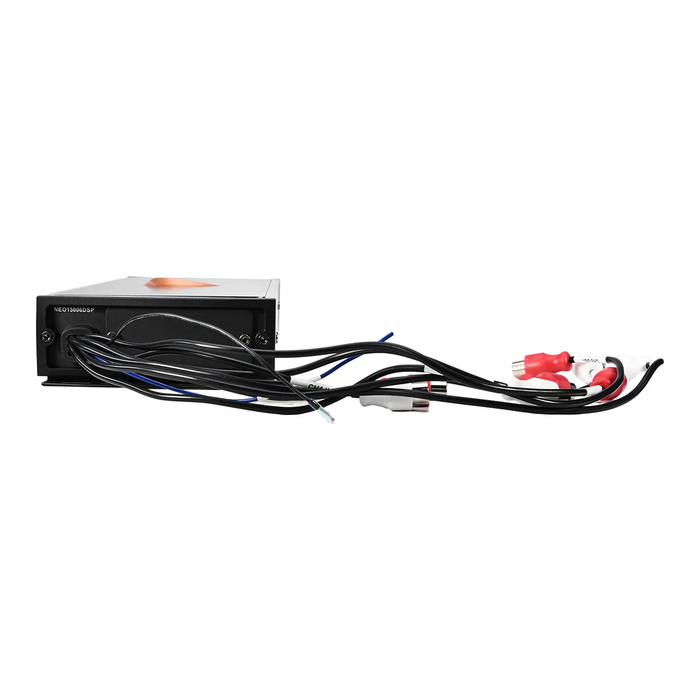

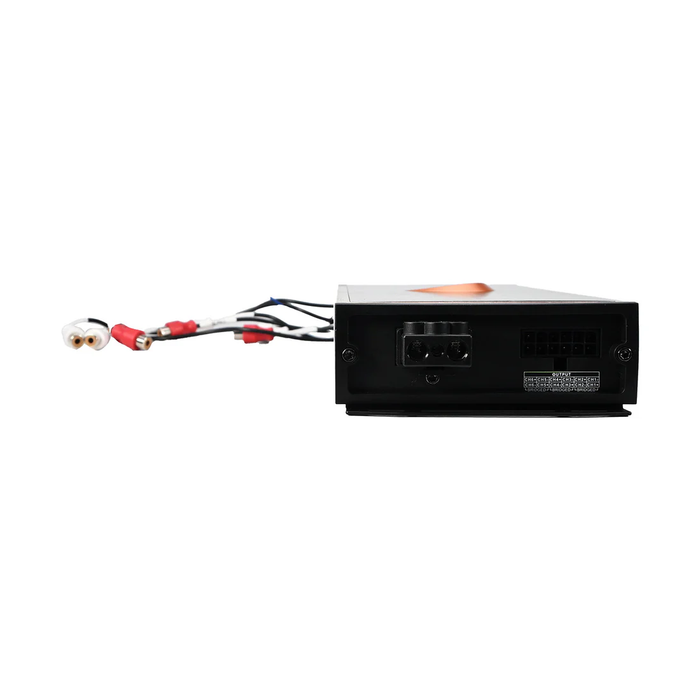

The Diamond Audio NEO15006DSP is a high-performance 6-channel Class-D amplifier engineered for advanced active systems, OEM integration, and precision DSP tuning. Delivering up to 1500W RMS total power, this amplifier combines serious output capability with professional-grade signal processing, making it ideal for high-end automotive, marine, powersports, and EV audio installations.
Featuring a fully integrated DSP platform with 31-band parametric EQ per channel, time alignment, adjustable crossovers, and channel linking, the NEO15006DSP gives installers and tuners complete control over system calibration. Designed for today’s modern vehicles, it supports high-voltage OEM integration up to 20V input and includes selectable load resistors for seamless compatibility with factory amplified systems.
Built with a compact marine-ready chassis, staggered RCA connections, and high-current quick-connect terminals, the NEO15006DSP delivers clean installation flexibility while maintaining the low distortion, clarity, and performance Diamond Audio is known for.
Specifications
Amplifier Type: 6-Channel Class-D with Integrated DSP
Total RMS Power Output: 1500W RMS
Power Output Ratings:
150W × 6 @ 4Ω
250W × 6 @ 2Ω
500W × 3 Bridged @ 4Ω
DSP Features:
- 31-Band Parametric EQ Per Channel
- Adjustable Crossovers
- Time Delay / Time Alignment
- Channel Linking
- PC & Android DSP Programming
Frequency Response: 15Hz – 23kHz
Input Sensitivity: 0.4V – 20V
Signal-to-Noise Ratio: 85dB
THD & Noise: ≤0.03%
Amplifier Efficiency: High-Efficiency Class-D Design
OEM Integration Features:
- High-Level & Low-Level Input Compatibility
- Up to 20V Signal Input Support
- Selectable Load Resistors: 10Ω / 20Ω / 60Ω / 20kΩ
- OEM Factory System Integration Ready
EV Compatibility: 8V – 17V Operating Voltage
Marine Rating: Water-Resistant Marine-Ready Chassis
Connectivity Features:
- 2 RCA Preamp Outputs
- Staggered RCA Connections
- High-Current Quick-Connect Power Block
- NeoDRC1 Remote Commander Compatible (Sold Separately)
Dimensions (L × W × H):
11.32" × 4.07" × 1.38"
(287.5 × 103.3 × 35mm)
Net Weight:
2.78 lbs (1.26kg)
Key Features:
- Full integrated DSP tuning platform
- Compact high-power 6-channel design
- OEM & EV-friendly integration capability
- Marine and powersports ready construction
- Ultra-low distortion performance
- Professional-grade active system tuning control
