Specifications

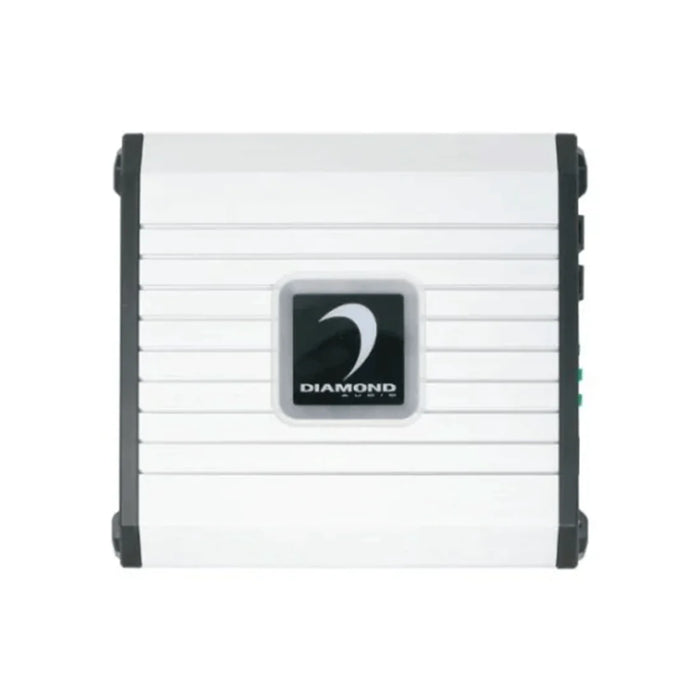

Type: 6-Channel Full-Range Class D Amplifier
Series: Diamond Audio DMD Series
Class: D (Digital Full-Range)
Channels: 6
RMS Power Output (14.4V):
• 6 × 175W @ 2Ω
• 6 × 125W @ 4Ω
• 3 × 350W @ 1Ω (Bridged Pairs)
Total RMS Power: 1,100W
Peak Power Output: 2,200W
Frequency Response: 10Hz – 35kHz (±1dB)
Signal-to-Noise Ratio: >90dB
Input Sensitivity: 200mV – 6V
THD (Total Harmonic Distortion): <0.05%
Crossover Type: Variable High-Pass / Low-Pass Filters (per Channel Pair)
Crossover Range: 50Hz – 500Hz (Variable)
Bass Boost: 0 – +12dB @ 45Hz
Input Type: RCA (Low-Level) / High-Level with Auto Turn-On
Cooling System: Advanced Thermal Management with Aluminum Heatsink
Fuse Rating: 3 × 30A (External Fuse Recommended)
Dimensions (L×W×H): 14.2" × 5.3" × 2.0" (360 × 135 × 51mm)
Weight: 6.8 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• High-efficiency 6-channel digital amplifier for multi-speaker or active setups.
• Bridgeable pairs allow flexible power configurations for mids, highs, or sub channels.
• Class D design provides clean, dynamic output with minimal heat.
• Delivers the perfect mix of clarity, headroom, and system flexibility.
• Designed for multi-zone, motorcycle, or full-system applications.
Key Features
• 6-Channel Versatility – Powers complete front, rear, and subwoofer stages.
• Bridgeable Outputs – Flexible wiring for 3, 4, or 5-channel operation.
• Full-Range Class D Topology – Efficient and powerful with crisp fidelity.
• Compact Chassis – Fits under seats, fairings, or compact mounting bays.
• Independent Crossovers – Precise tuning for each speaker stage.
• High-Level Inputs – Integrates easily with factory source units.
• Diamond Audio Engineering – Tuned for clarity, efficiency, and reliability.
Performance Integration Notes
• Ideal Pairing: Diamond DMD, DES, or HXM Series Speakers & Subwoofers.
• System Compatibility: Automotive, Marine, Motorcycle, and UTV Applications.
• Recommended Use: Full-system power source for mids, highs, and subwoofer channels.
• Installation Location: Under seat, side panel, or amplifier rack.
• Installation Time: Approx. 1.5–2 hours.
• Pro Tip: Bridge the rear channels for subwoofer output while keeping front/rear full-range active for a clean, all-in-one power solution.
