    Description

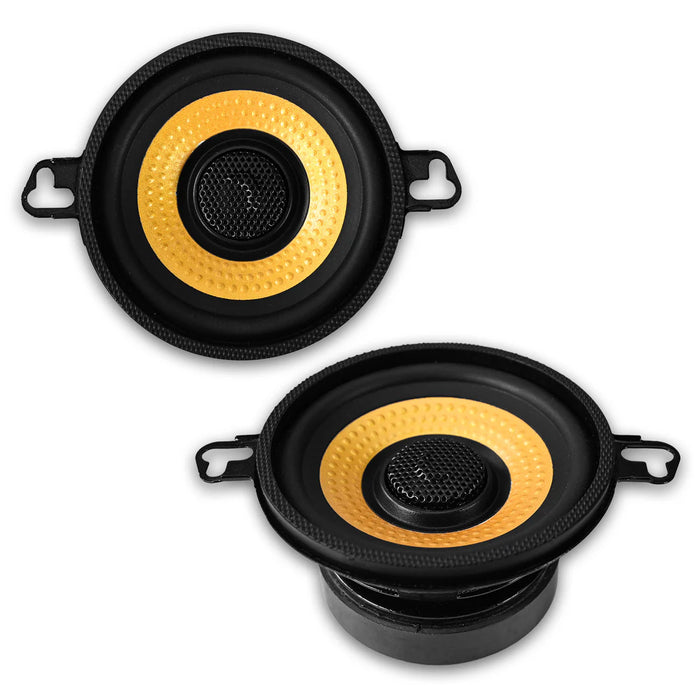

    The DMDX35 3.5" 2-Way Concentric Coaxial Speakers are designed to deliver clean, natural sound in compact factory locations. Built for drivers seeking an affordable upgrade over OEM audio, the DMDX series provides crisp high frequencies, clear midrange detail, and tight upper-bass response. Ideal for dash and small speaker positions, the DMDX35 offers dependable performance, easy installation, and everyday value backed by Diamond Audio’s heritage of sound innovation.

    Specifications
    Speaker Size: 3.5" (88.9mm)
    Configuration: 2-Way Concentric Coaxial
    Power Handling: 25W RMS / 75W MAX
    Frequency Response: 80Hz – 20kHz
    Sensitivity: 82dB (1W/1M)
    Nominal Impedance: 4Ω
    Free-Air Resonance (Fs): 155Hz
    Mounting Depth: 1.65" (42mm)
    Cut-Out Diameter: 3.07" (78mm)
    Overall Diameter: 3.43" (87.2mm)
    Overall Height: 1.89" (48mm)
