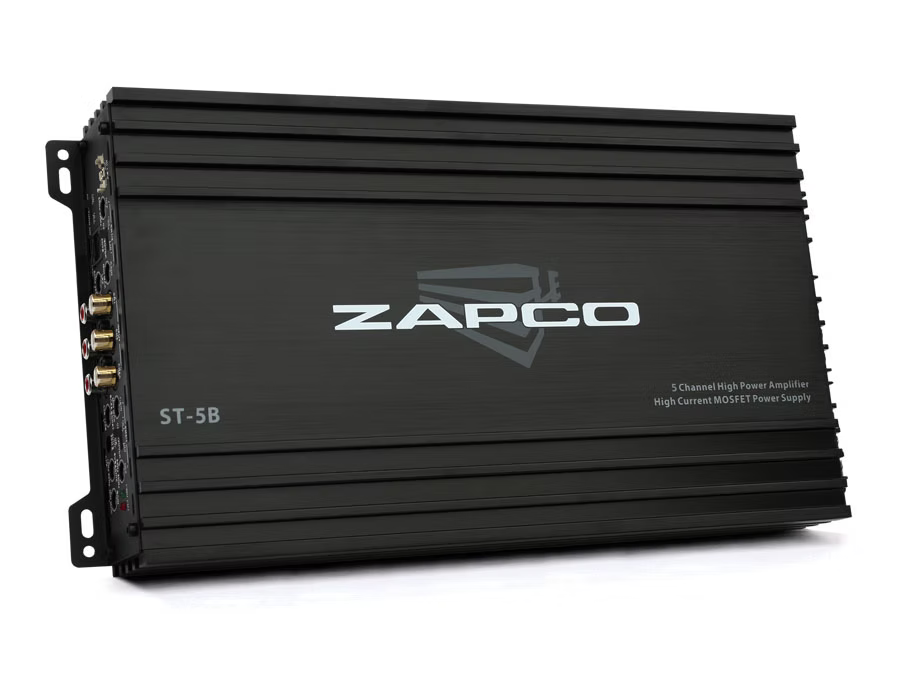

    Zapco - ST-5B - Class AB, 5-Ch Power 2Ω: 4 x 100W + 1 x 400W 5 channel amp

    Zapco - ST-5B - Class AB, 5-Ch Power 2Ω: 4 x 100W + 1 x 400W 5 channel amp

    by Zapco
    $347.22 - $347.22
    $347.22
    $347.22 - $347.22
    $347.22

    ST-5B

    5-Ch. Class AB Amplifier

    Features and Functions

    - 5-Channel, Class-AB Full Range Amplifier
    - Stable into 4 ohms bridged or 2 ohms stereo load
    - MOSFET power supply
    - RCA and OEM speaker level input
    - Variable Inputs Gain Control
    - Variable FULL / LP / HP Electronic Crossover
    - Variable Bass Boost


    Technical Specifications

    - Power @ 4Ω: 4 x 70 + 1 x 250 watts
    - Power @ 2Ω: 4 x 100 + 1 x 400 watts
    - Power @ 4Ω Bridged: 2 x 180 + 1 x 400 (2Ω)
    - THD @ Rated Power < 0.2%
    - Signal to Noise Ratio > 90dB
    - Channel separation > 45dB
    - Frequency Response 10Hz to 30,000Hz ±1dB
    - Input Sensitivity .25v to 5v
    - Net Dimensions (mm): 182(W) x 52(H) x 351(L)
    - Overall Dimensions (mm): 182(W) x 52(H) x 381(L)
